| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Coslight or OEM |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | FP31136227A |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 10~15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000pcs/week |
| Type: | LiFePO4 | Size: | Customize Accepted |
|---|---|---|---|
| Application: | Energy Storage | Warranty: | 3 Years |
| Nominal Capacity: | OEM | Nominal Voltage: | 12v/24v/36v/48v |
| Cycle Life: | >2000times | Components: | LiFePO4 |
| Housing: | Metal,Plastic | Oem/odm: | Acceptable |
| High Light: | 10KWH Energy Storage Lithium Battery,200AH Energy Storage Lithium Battery,10kwh lithium battery |
||

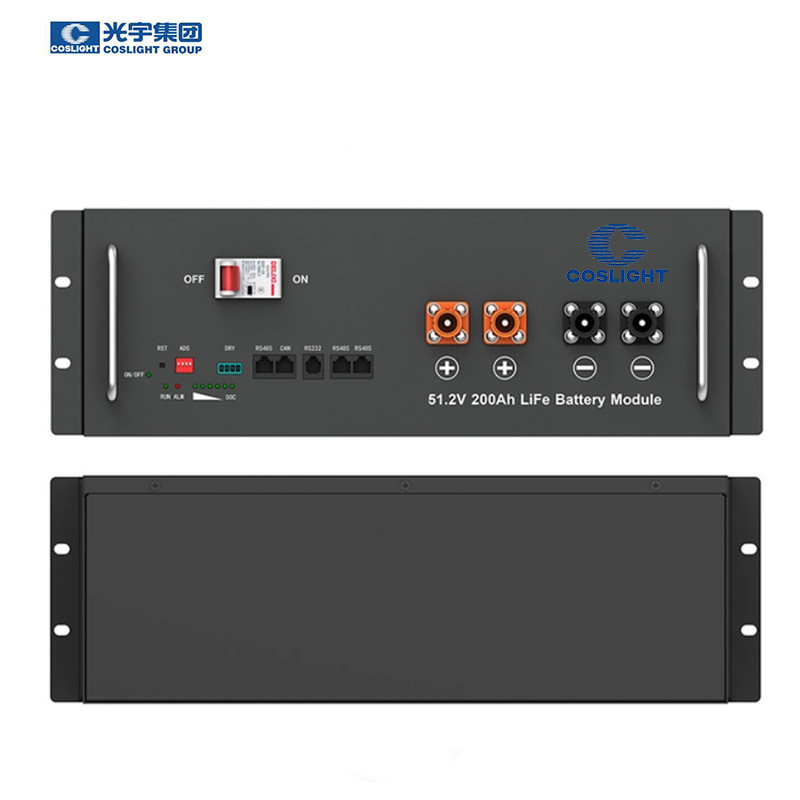

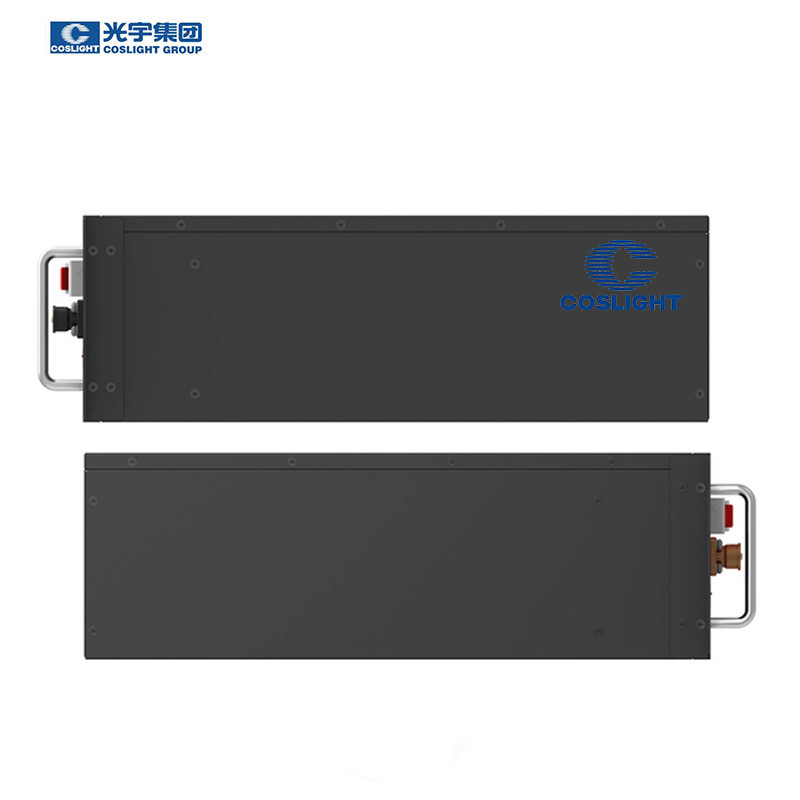

10KWH Energy Storage Lithium Battery 200AH For Household Power Supply
Coslight Rechargeable 10KWH Energy Storage Lithium Battery 200AH High Safety
Our battery module consists of multiple cells connected in a series and/or a parallel, encased in a mechanical structure. The system is modular in design, allowing for it to be easily switched to a different capacity and power as per your demands. The unit can be wall mounted, floor mounted, and server rack mounted.
ELECTRICAL PERFORMANCE
|
Nominal Voltage |
51.2 V |
|
Nominal Capacity |
200AH |
|
Capacity @ 20A |
600 min |
|
Energy |
10240Wh |
|
Communication |
CAN2.0/RS232/RS485 |
|
Resistance |
≤45 mΩ @ 50% SOC |
|
Efficiency |
>96% |
|
Module Parallel |
Up to 16 packs |
CHARGE PERFORMANCE
|
Recommended Charge Current |
20A |
|
Maximum Charge Current |
100A |
|
Recommended Charge Voltage |
57.6V |
|
BMS Charge Cut-Off Voltage |
<54.7 V (3.65V/Cell) |
|
Reconnect Voltage |
>54 V (3.6V/Cell) |
|
Balancing Voltage |
<54V (3.6V/Cell) |
|
Maximum Batteries in Series (cells) |
15(*Consult MUST) |
MECHANICAL PERFORMANCE
|
Dimension (L x W x H) |
482*500*222mm 19.0x 19.7x 8.7” |
|
Approx. Weight |
35.7 lbs (80 kg) |
|
Terminal Type |
DIN POST |
|
Terminal Torque |
80 ~ 100 in-lbs (9 ~ 11 N-m) |
|
Case Material |
SPPC |
|
Enclosure Protection |
IP54 |
DISCHARGE PERFORMANCE
|
Maximum Continuous Discharge Current |
100A |
|
Peak Discharge Current |
110 A (3s) |
|
BMS Discharge Cut-Off Current |
150A (300ms) |
|
Balancing open voltage |
51.7V (3.45V/Cell) |
|
Recommended Low Voltage Disconnect |
41.2 V (2.75V/Cell) |
|
BMS Discharge Cut-Off Voltage |
>30.0V (2s) (2.0V/Cell) |
|
Reconnect Voltage
|
>37.5 V (2.5V/Cell) |
|
Short Circuit Protection |
250 ~ 500 μs |
TEMPERATURE PERFORMANCE
|
Discharge Temperature |
-4 ~ 131 ºF (-20 ~ 55 ºC) |
|
Charge Temperature |
-4 ~ 113 ºF (0 ~ 45 ºC) |
|
Storage Temperature |
23 ~ 95 ºF (-5 ~ 35 ºC) |
|
BMS High Temperature Cut-Off |
149 ºF (65 ºC) |
|
Reconnect Temperature |
131 ºF (55 ºC) |
HEATING FOIL PERFORMANCE
|
Heating Temperature Range |
-4 to 41 ºF (-20 to 5 ºC) |
|
Heating Time |
Approximately 1 hour @ 7.5 A |
|
BMS Heating Foil Cut-Off |
158 ºF (70 ºC) |
