| Place of Origin: | GuangDong.China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | Portable power station |
| Minimum Order Quantity: | 30 pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30-45 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 pcs/month |
| Type: | LiFePO4 | Warranty: | 3years |
|---|---|---|---|
| Brand: | Coslight Or OEM | OEM/ODM: | Support Customize |
| Delivery: | Sea, Air Or Express | Application: | Emergency、Outdoor Energy |
| High Light: | OEM ODM Portable Generator Power Station,ODM 1000W Portable Generator Power Station,ODM portable power station 1000w |
||

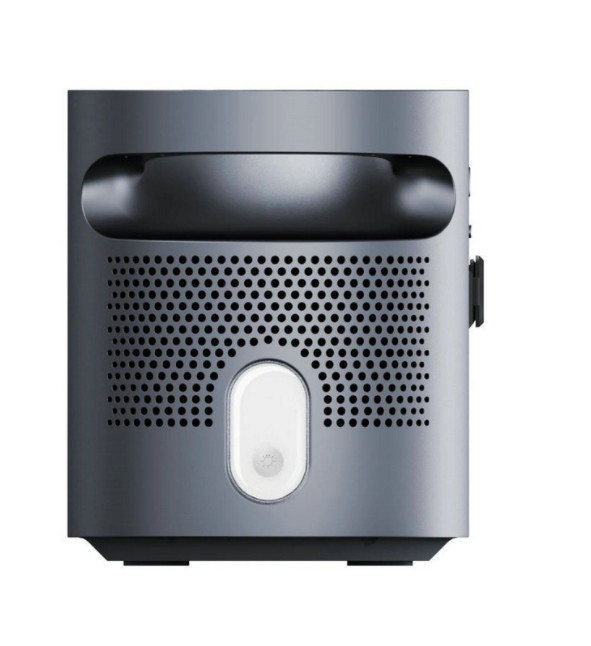

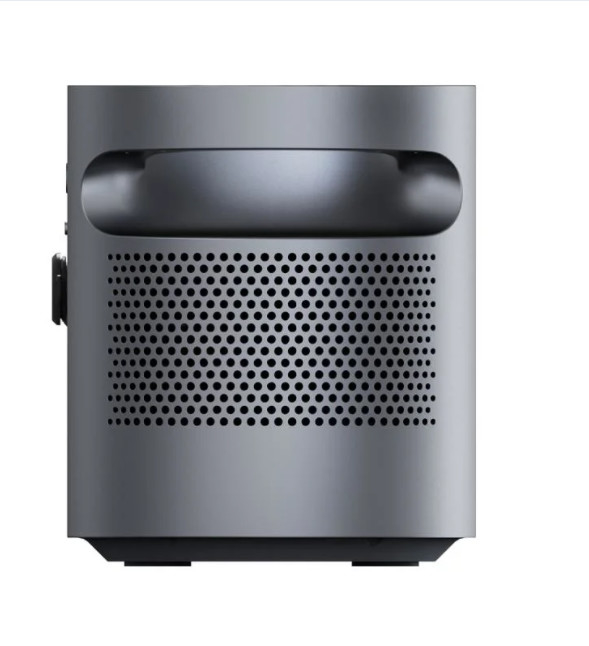

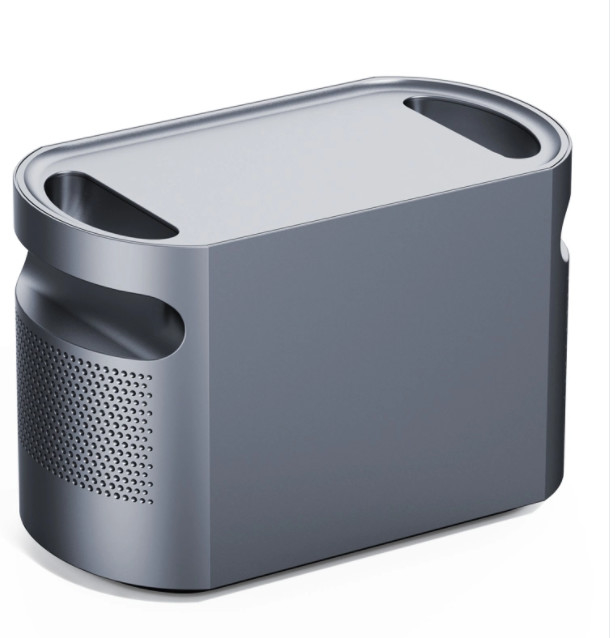

ODM 1000W Portable Generator Power Station For Household Power Supply
|
project |
parameter |
UA500 |
UA1000 |
|
|
Battery class |
Lithium ion battery |
|
|
Battery power |
500Wh |
1000Wh |
|
|
Total capacity |
135200mAh |
270,000mAh |
|
|
voltage |
14.8V |
14.8V |
|
|
ampere-hour |
33.8Ah |
67.5Ah |
|
|
cycle life |
800 cycles |
800 cycles |
|
|
BMS |
Overvoltage, undervoltage, high and low temperature, three-stage overcurrent, short circuit protection |
||
|
|
output voltage |
100-240V(Depending on the factory settings in different countries and regions) |
|
|
output frequency |
50-60HZ(Depending on the factory settings in different countries and regions) |
||
|
|
AC500W about 30 Minutes |
AC1000W about 5 Minutes |
|
|
AC400W about 65 Minutes |
AC800W about 60 Minutes |
||
|
AC300W about 85 Minutes |
AC500W about 100 Minutes |
||
|
AC200W about 130 Minutes |
AC300W about 160 Minutes |
||
|
AC100W about 270 Minute |
AC100W about 540 Minute |
||
|
waveform |
Pure sine wave |
Pure sine wave |
|
|
efficiency |
70%load:>90% |
||
|
|
DC5.5 port |
DC12V5A |
|
|
Cigarette lighter port |
DC12V12A |
||
|
efficiency |
70%load:>93% |
||
|
|
USB1 |
5V2.4A |
|
|
USB2 |
5V2.4A |
||
|
USB3 |
QC3.0,5-12V,18W(MAX) |
||
|
USB-C output |
PD3.0 |
5-20V,60W(MAX) |
|
|
|
Low Bright |
5W(MAX) |
|
|
High Bright |
10W(MAX) |
||
|
SOS |
NA |
||
|
Flash |
NA |
||
|
|
Adapter |
19V5A about 6h |
19V5A about 12h |
|
car |
13V8A about 6h |
13V8A about 12h |
|
|
PV |
24V5A about 7h |
24V5A about 13h |
|
|
Power consumption |
Quiescent current |
<100uA |
<100uA |
|
Product weight |
Net weight |
5.9KG |
9.9KG |
|
Gross weight |
7.6kg |
12KG |
|
|
Product volume |
Host |
200*176*146 |
200*294*146 |
|
Packing |
340*295*250mm |
450*355*300mm |
|
|
|
Charge |
0~40ºC(32~104ºF) |
|
|
discharge |
-20~50ºC(-4~122ºF) |
||
|
Storage |
-20~45ºC(-4~113ºF) |
||
Function description of front panel
Keys on the front panel are display keys; press the keys to display the electric quantity, power. Functions displayed by LED screen include input information, output information, capacity information, while the running information bar includes overcharge, over discharge, over-temperature.
|
NO. |
Name |
function |
|
1 |
charge indicator |
Respectively"DC->"/"CAR->"/"PV->",Represents different charging modes. |
|
2 |
Electricity Icon |
The battery power is displayed in six cells, and the charging will indicate the battery power by running horse. |
|
3 |
Battery Indicator |
According to the percentage, the battery power is 0%-100%. |
|
4 |
Residual time indication |
"Time To Full"Display full remaining time,"Time To Empty"Display the remaining time of emptying,The corresponding number will be below+H or M Represents the remaining hours and minutes. |
|
5 |
Total power indication |
number+Wcombination,Polling shows the total power of charging and discharging, |
|
6 |
|
Constant current output |
|
7 |
Interface status indication |
DC,CAR,USB-A,USB-C,AC,Light,Represents the corresponding interface state. |
|
8 |
Car Start State Indicator |
The three right-most display combinations, Car-Start/Car-Start Failed/Car-Start Completed, represent that the car is starting and charging, starting and charging fails, starting and charging is completed. |
Function description of front pane
|
NO. |
Function description |
||
|
1 |
Display screen |
7 |
QC3.0 output port |
|
2 |
DC switch |
8 |
USB-C PD3.0 60W output port |
|
3 |
DC5.5 12V output port |
9 |
USB 5V2.4A output port |
|
4 |
LED Floodlight |
10 |
AC switch |
|
5 |
Cigarette lighter port |
11 |
AC output port |
|
6 |
DC input port |
12 |
LED switch |
