| Place of Origin: | China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | CF4810T1EA |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10~15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000pcs/week |
| Brand: | Coslight Or OEM | Battery Type: | LiFePo4 |
|---|---|---|---|
| OEM/ODM: | Support Customize | Communication: | CAN2.0/RS232/RS485 |
| Supply Ability: | 8000pcs | Model: | 4810T1U |
| Weight: | 8kg | Comm Interface: | RS485，CAN. |
| High Light: | 48V 10AH Telecom Lithium Battery,RV Telecom Lithium Battery,Lifepo4 UPS Diy |
||

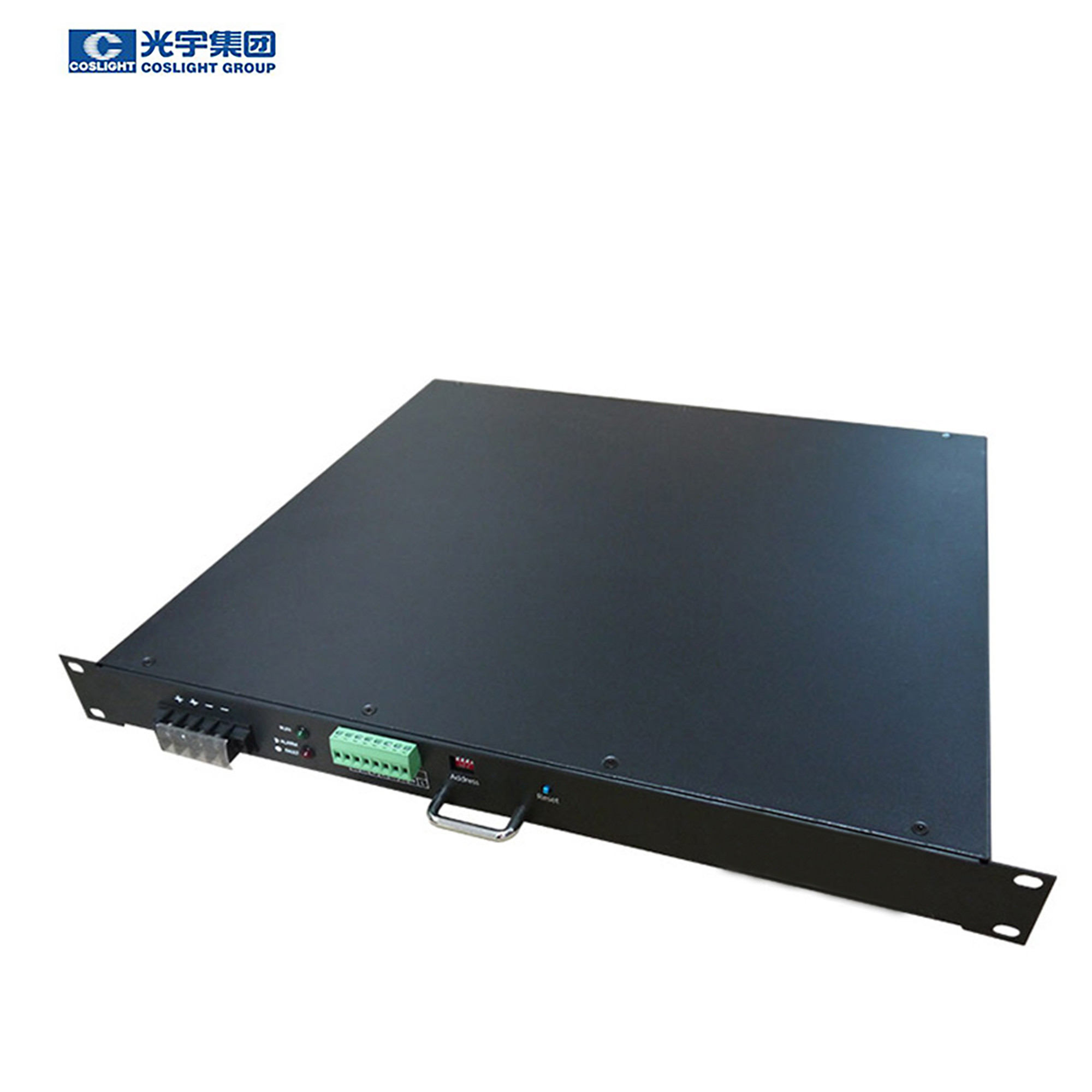

RV 48V 10AH Telecom Lithium Battery Current Lifepo4 UPS Diy
48V 10AH LiFePo4 Battery Pack For UPS Telecom Application BMS RS485/232
Product information
Product Introduction:
CF4810T1EA Lithium battery is a High-tech product independently developed by Harbin coslight New Energy , The battery is small in size and light in weight, and it supports 19-inch rack installation, It has a long service life and supports fast charging. It adopts advanced intelligent BMS with alarm and protection functions such as overcharge, over discharge, over current, temperature, etc., and historical data storage, charging current limiting.The product has prominent advantages in the field of communication backup power supply in specific occasions.
Product characteristic
Good temperature performance, AC not needed(Temp.<38℃),and saves energy
Protection functions of voltage, current & temperature
Long life(1000 times @0.5C, 85%DOD,35℃)
Easy O&M, integrative BMS design , supports self-management, residual capacity & battery health.
Anti-theft function via software ,and optional gyro burglary protection & GPS tracking system.
Specs & parameters
|
Product Model No. |
CF4810T1EA |
|
|
Anode Material |
LFP |
|
|
Nominal Voltage |
-48V(1P15S) |
|
|
|
||
|
operating voltage range |
42.0V-52.5V |
|
|
Max CH/DCH current |
10/10A |
|
|
|
||
|
Cycle life |
1000 times |
|
|
Standard capacity |
10Ah |
|
|
Weight |
8kg |
|
|
|
||
|
Width × depth × height |
440mm×310mm×44mm |
|
|
Self-discharge rate@25℃ |
＜3%(90 days Storage) |
|
|
|
||
|
Comm interface |
RS485,CAN. |
|
|
Max parallel quantity |
15 |
|
|
Max parallel power |
5.76KW |
|
|
|
||
|
Terminal connector |
M6, Torque: 8N.m |
|
|
Installation method |
19inch rack |
|
|
Protection functions |
Over Temp. , Over current, Short circuit , Over CH & Over DCH protections. |
|
|
Certifications |
UL & CE & IEC & UN |
|
|
Design life |
15years |
|
FAQ
Q1: Are you a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, which can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
Q4. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A: Yes, We have a professional QC team to make sure that the product in good condition before sending out the goods.
Q7: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
