| Place of Origin: | China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | CF4810T1EA |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10~15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000pcs/week |
| Brand: | Coslight Or OEM | Battery Type: | LiFePo4 |
|---|---|---|---|
| Cycle Life: | 1000 Times | Communication: | CAN2.0/RS232/RS485 |
| Standard Capacity: | 20Ah | Model: | 4820T1U |
| Weight: | 14kg | Comm Interface: | RS485，CAN. |
| High Light: | 1U 48V LiFePO4 Battery,Telecom 48V LiFePO4 Battery,1U LiFePO4 Battery 20Ah |
||

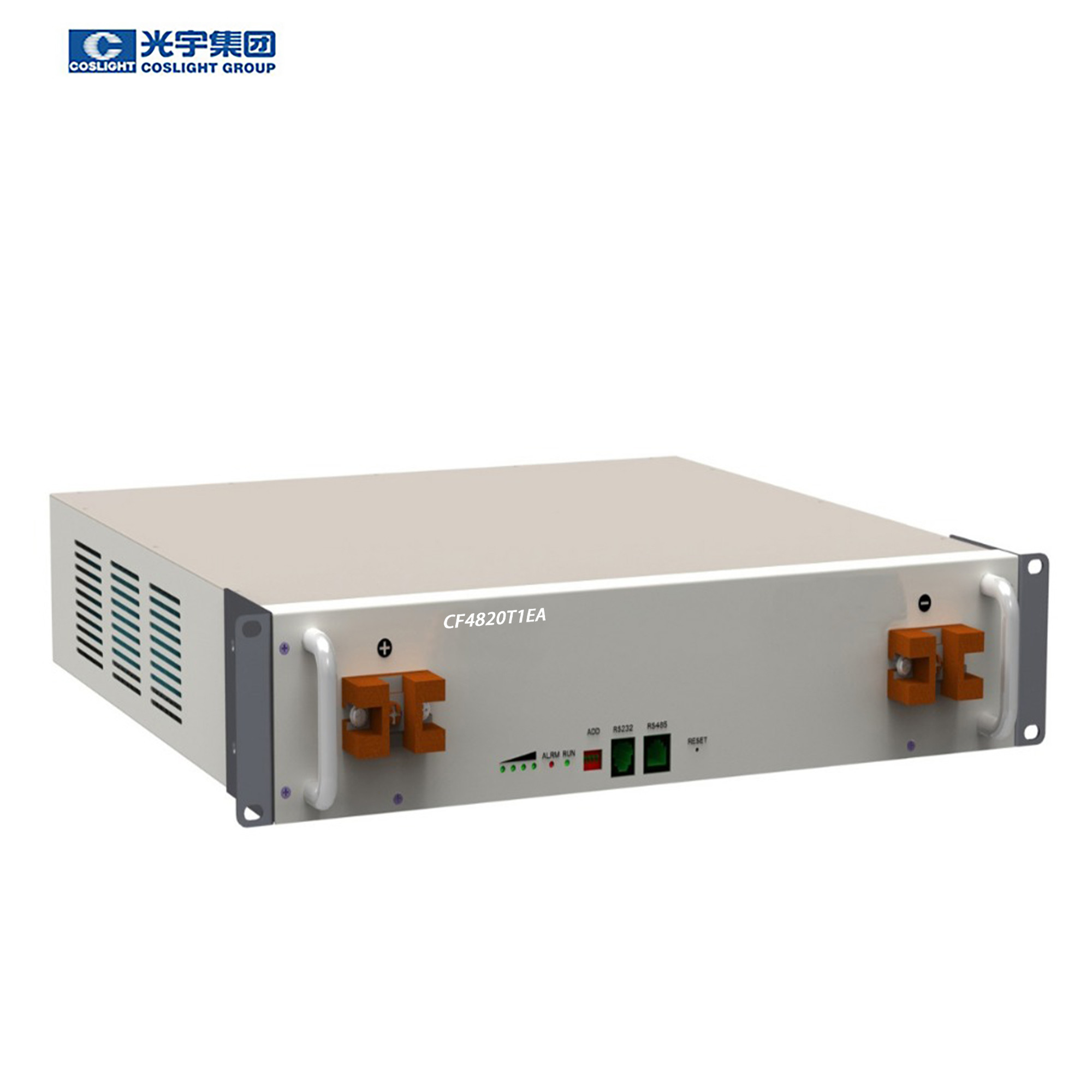

1U UPS Telecom 48V LiFePO4 Battery 20Ah For Power Supply Module
1U UPS Telecom 48V LiFePO4 Battery 20Ah for Telecom Power Supply Module
Product information
Product Introduction:
CF4820T1EA 48V20Ah back-up lithium iron phosphate battery system is developed for backup of Telecom equipment.Under normal condition, grid AC power supply to rectifier module and the Telecom loads and charge battery pack.When the AC power is off, rectifier module stop power supply and the battery serve for Telecom equipment.To ensure the Telecom equipment runs normally, when the AC power is switched on again. Power rectifier module,Work for Telecom equipment while charge the battery pack.
Product characteristic
485/232 communication output for monitoring
Built-in BMS with Charging current limitation
Built-in automatic protection for over-charge, over-discharge and over-temperature conditions
State of charge (SOC)and state of health (SOH)indication
Built-in battery control for efficient operation
Internal cell balancing Integrated Smart IC
Compatible with standard Telecom rectifiers
Specs & parameters
|
Product Model No. |
CF4820T1EA |
|
|
Anode Material |
LFP |
|
|
Nominal Voltage |
-48V(1P15S) |
|
|
|
||
|
operating voltage range |
42.0V-52.5V |
|
|
Max CH/DCH current |
20/20A |
|
|
|
||
|
Cycle life |
1000 times |
|
|
Standard capacity |
20Ah |
|
|
Weight |
14kg |
|
|
|
||
|
Width × depth × height |
440mm×300mm×88mm |
|
|
Self-discharge rate@25℃ |
＜3%(90 days Storage) |
|
|
|
||
|
Comm interface |
RS485,CAN. |
|
|
Max parallel quantity |
15 |
|
|
Max parallel power |
11.52KW |
|
|
|
||
|
Terminal connector |
M6, Torque: 8N.m |
|
|
Installation method |
19inch rack |
|
|
Protection functions |
Over Temp. , Over current, Short circuit , Over CH & Over DCH protections. |
|
|
Certifications |
UL & CE & IEC & UN |
|
|
Design life |
15years |
|
