| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Coslight or OEM |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | FP31136227A |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 10~15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000pcs/week |
| Type: | LiFePO4 | Size: | Customize Accepted |
|---|---|---|---|
| Application: | Energy Storage | Warranty: | 3 Years |
| Nominal Capacity: | OEM | Nominal Voltage: | 12v/24v/36v/48v |
| Cycle Life: | >2000times | Components: | LiFePO4 |
| Housing: | Metal,Plastic | Oem/odm: | Acceptable |
| High Light: | 48100 Lifepo4 Energy Storage Battery,51.2 V Lifepo4 Energy Storage Battery,lithium ion cells 48100 |
||

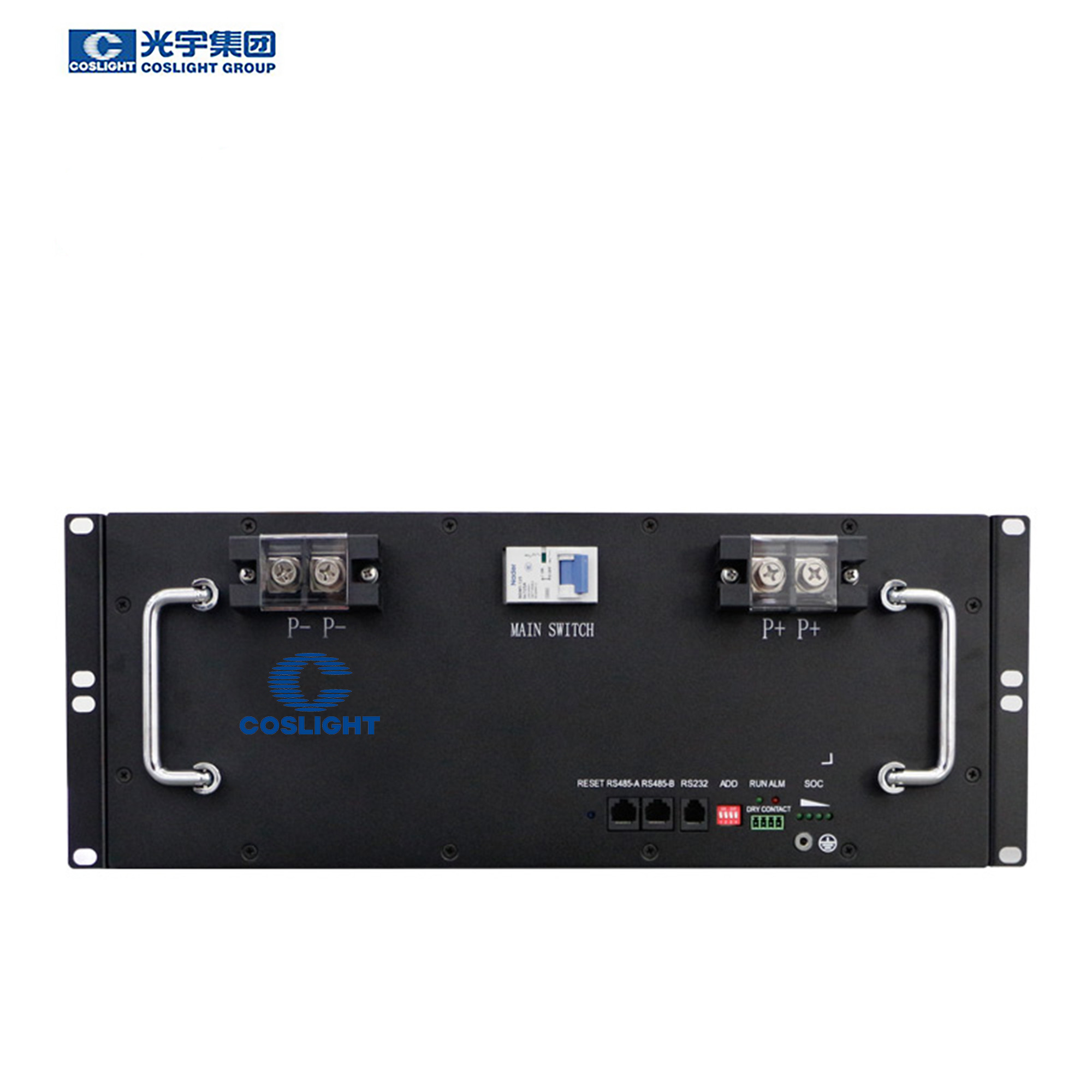

48100 UPS Lifepo4 Energy Storage Battery Lithium Ion Cells
48100 solar system Base station batteries energy storage Pack Industry UPS Lithium ion Cell Lifepo4 battery
Our battery module consists of multiple cells connected in a series and/or a parallel, encased in a mechanical structure. The system is modular in design, allowing for it to be easily switched to a different capacity and power as per your demands. The unit can be wall mounted, floor mounted, and server rack mounted.
ELECTRICAL PERFORMANCE
|
Nominal Voltage |
51.2 V |
|
Nominal Capacity |
200AH |
|
Capacity @ 20A |
600 min |
|
Energy |
10240Wh |
|
Communication |
CAN2.0/RS232/RS485 |
|
Resistance |
≤45 mΩ @ 50% SOC |
|
Efficiency |
>96% |
|
Module Parallel |
Up to 16 packs |
CHARGE PERFORMANCE
|
Recommended Charge Current |
20A |
|
Maximum Charge Current |
100A |
|
Recommended Charge Voltage |
57.6V |
|
BMS Charge Cut-Off Voltage |
<54.7 V (3.65V/Cell) |
|
Reconnect Voltage |
>54 V (3.6V/Cell) |
|
Balancing Voltage |
<54V (3.6V/Cell) |
|
Maximum Batteries in Series (cells) |
15(*Consult MUST) |
MECHANICAL PERFORMANCE
|
Dimension (L x W x H) |
482*500*222mm 19.0x 19.7x 8.7” |
|
Approx. Weight |
35.7 lbs (80 kg) |
|
Terminal Type |
DIN POST |
|
Terminal Torque |
80 ~ 100 in-lbs (9 ~ 11 N-m) |
|
Case Material |
SPPC |
|
Enclosure Protection |
IP54 |
DISCHARGE PERFORMANCE
|
Maximum Continuous Discharge Current |
100A |
|
Peak Discharge Current |
110 A (3s) |
|
BMS Discharge Cut-Off Current |
150A (300ms) |
|
Balancing open voltage |
51.7V (3.45V/Cell) |
|
Recommended Low Voltage Disconnect |
41.2 V (2.75V/Cell) |
|
BMS Discharge Cut-Off Voltage |
>30.0V (2s) (2.0V/Cell) |
|
Reconnect Voltage
|
>37.5 V (2.5V/Cell) |
|
Short Circuit Protection |
250 ~ 500 μs |
TEMPERATURE PERFORMANCE
|
Discharge Temperature |
-4 ~ 131 ºF (-20 ~ 55 ºC) |
|
Charge Temperature |
-4 ~ 113 ºF (0 ~ 45 ºC) |
|
Storage Temperature |
23 ~ 95 ºF (-5 ~ 35 ºC) |
|
BMS High Temperature Cut-Off |
149 ºF (65 ºC) |
|
Reconnect Temperature |
131 ºF (55 ºC) |
HEATING FOIL PERFORMANCE
|
Heating Temperature Range |
-4 to 41 ºF (-20 to 5 ºC) |
|
Heating Time |
Approximately 1 hour @ 7.5 A |
|
BMS Heating Foil Cut-Off |
158 ºF (70 ºC) |
FAQ
Q1: Are you a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, which can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
Q4. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A: Yes, We have a professional QC team to make sure that the product in good condition before sending out the goods.
Q7: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
