| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Coslight or OEM |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | FP31136227A |
| Minimum Order Quantity: | 1unit |
| Price: | USD 1498 |
| Packaging Details: | Wooden package |
| Delivery Time: | 7-30days |
| Supply Ability: | 5000units per month |
| Brand: | Coslight Or OEM | Type: | High Frequency |
|---|---|---|---|
| Input Voltage: | 12V/24V/48V | Warranty: | 3 Years |
| Application: | Home Appliance,Frequency Change,sensitive Load,Solar Power System Home | Waveform: | Pure Sine Wave |
| Protection: | Overload / Over Voltage/output Short Circuit | Capacity: | 100Ah |
| High Light: | 5KW Telecom Lithium Battery,CF4850T2ED Telecom Lithium Battery,CF4850T2ED 3Kw Inverter |
||
5KW 12V 24V 48V Telecom Lithium Battery Rack Mounted 3Kw Inverter
Coslight Brand 220VAC High Frequency Rack- Mounted Power Inverter 3KW ~5KW 48VDC with 80A 145V MPPT, 2U or 3U Height
Features:

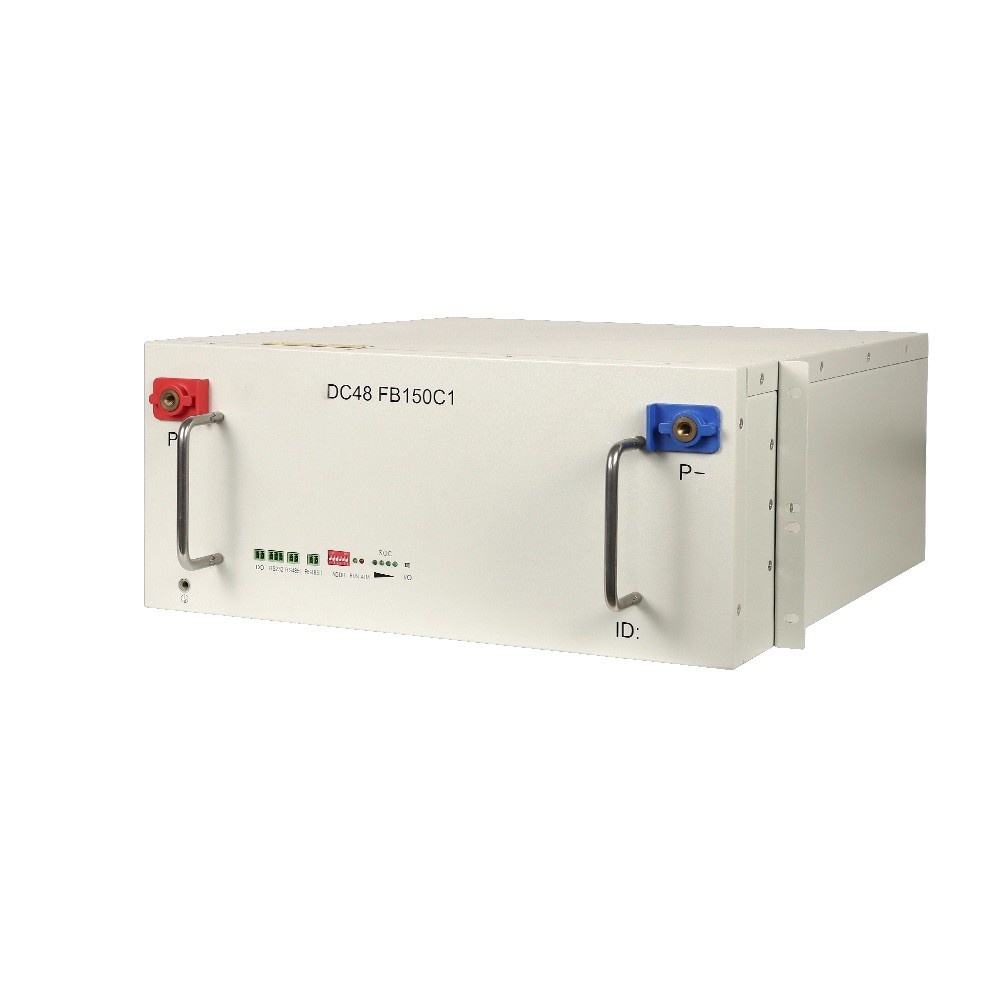

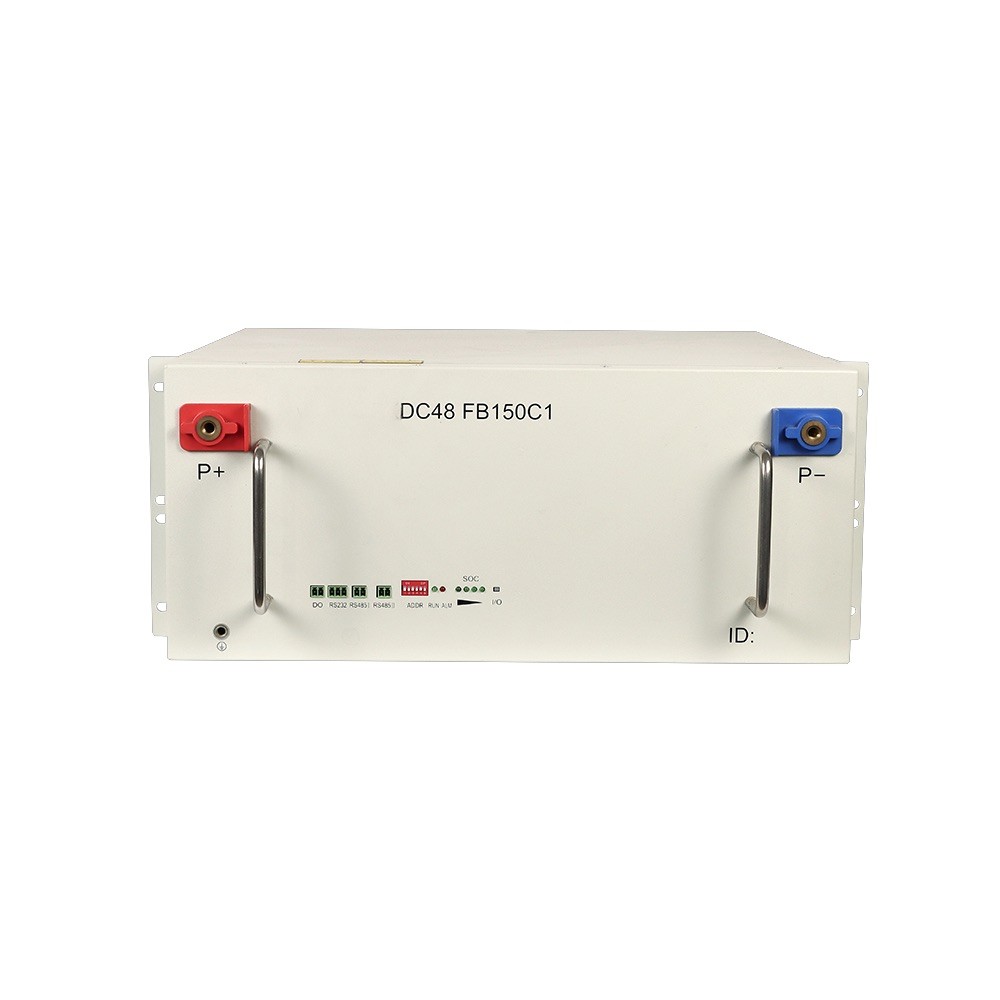

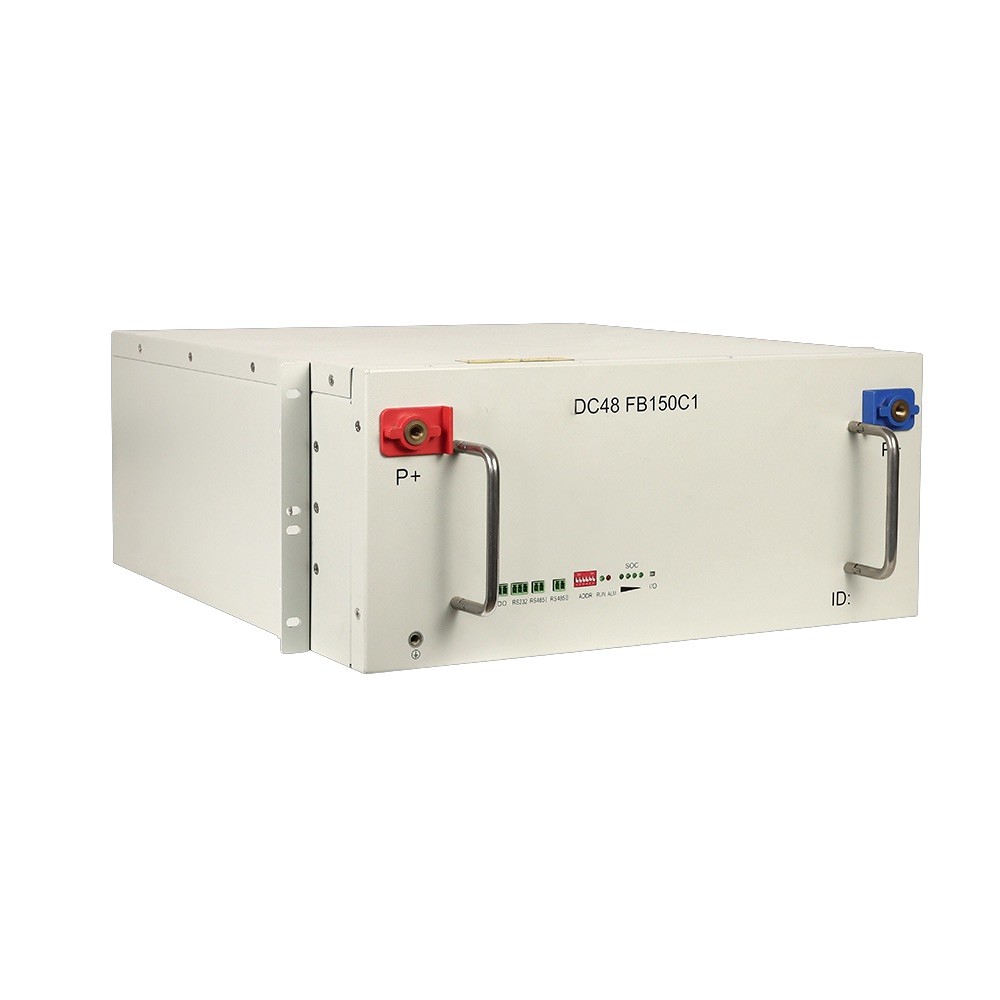

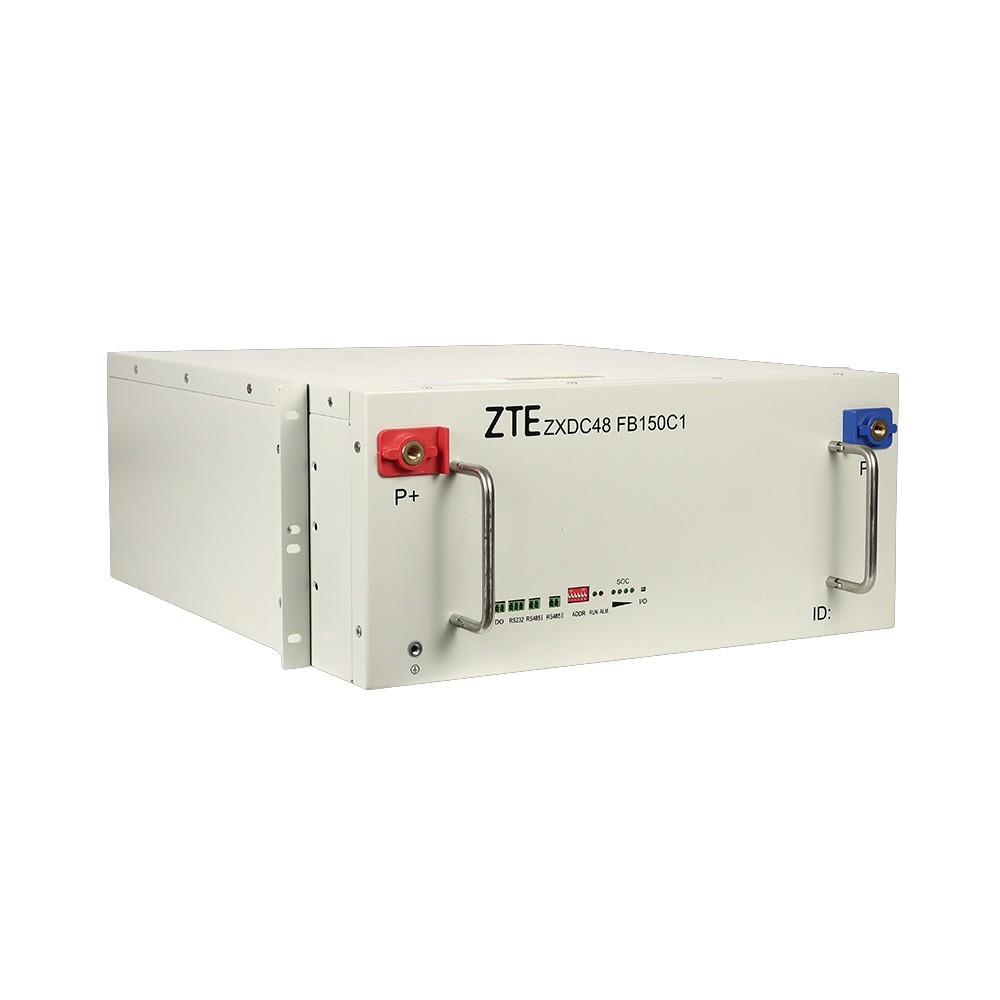

CF4850T2ED bithium battery is a High-tech product independently developed by Harbin coslight New Energy , The battery is small in size and light in weight, and it supports 19-inch rack installation, It has a long service Jife and supports fast charging. It adopts advanced intelligent BMS with alarm and protection functions such as overcharge, over discharge, over current, temperature, etc., and historical data storage, charging current limiting.The product has prominent advantages in the field of communication backup power supply in specific occasions.
TECHNICAL SPECIFICATIONS :
|
MODEL |
|
|
|
|
|---|---|---|---|---|
|
Rated output power |
3000W |
4000W |
5000W |
|
|
AC INPUT |
||||
|
Nominal Input Voltage |
220Vac |
|||
|
Selectable Voltage range |
AC 185V~270V |
|||
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
|||
|
Inverter Efficiency(Peak) |
97% |
|||
|
INVERTER OUTPUT |
||||
|
Output voltage waveform |
Pure sine wave |
|||
|
Output Voltage Regulation |
220Vac ± 5% |
|||
|
Output Frequency |
50Hz |
|||
|
Power Factor |
1 |
|||
|
Transfer Time |
10ms typical |
|||
|
Peak Efficiency |
92% |
|||
|
Nominal DC Input Voltage |
48VDC |
|||
|
Cold Start Voltage |
46VDC |
|||
|
Output Short Circuit Protection |
Line mode |
Circuit Breaker |
||
|
Battery mode |
Electronic Circuits |
|||
|
BATTERY |
||||
|
Battery voltage |
48VDC ( ±0.5) |
|||
|
Floating voltage |
54V |
|||
|
CHARGER |
||||
|
Charging Current(UPS) @Nominal Input Voltage |
Default:30A; MAX:60A |
|||
|
Bulk Charging Voltage |
56.4Vdc |
|||
|
Floating Charging Voltage |
54Vdc |
|||
|
Charging Algorithm |
3-Step |
|||
|
GENERAL |
||||
|
Mounting |
Rack mount |
|||
|
Display |
LED+LCD |
|||
|
Safety Certification |
CE |
|||
|
Operation Temperature Range |
0℃ to 40℃ |
|||
|
Storage Temperature |
-15℃ to 60℃ |
|||
|
Dimensions (W*H*D)(mm) |
400×468×86.3 |
|||
|
Net Weight (kg) |
10.0 |
|||
