51.2V 200Ah LiFePO4 Battery Pack 48V 200Ah Battery For Home Appliances

Basic Information
Place of Origin: China
Brand Name: Coslight
Certification: UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS
Model Number: CF48100T1EA
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 10~15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000pcs/week
Brand: Coslight Or OEM Battery Type: LiFePo4
Max CH/DCH Current: 100/100A Communication: CAN2.0/RS232/RS485
Weight: 49kg Certifications: UL & CE & IEC & UN
Comm Interface: RS485,CAN.
High Light:

51.2V 200Ah LiFePO4 Battery Pack

,

200Ah LiFePO4 Battery Pack

,

48v 200ah Battery

51.2V 200Ah LiFePO4 Battery Pack 48V 200Ah Battery For Home Appliances



Energy 48V 100Ah LiFePO4 Lithium Iron Battery Home Energy Storage System Telecom Station




Product information

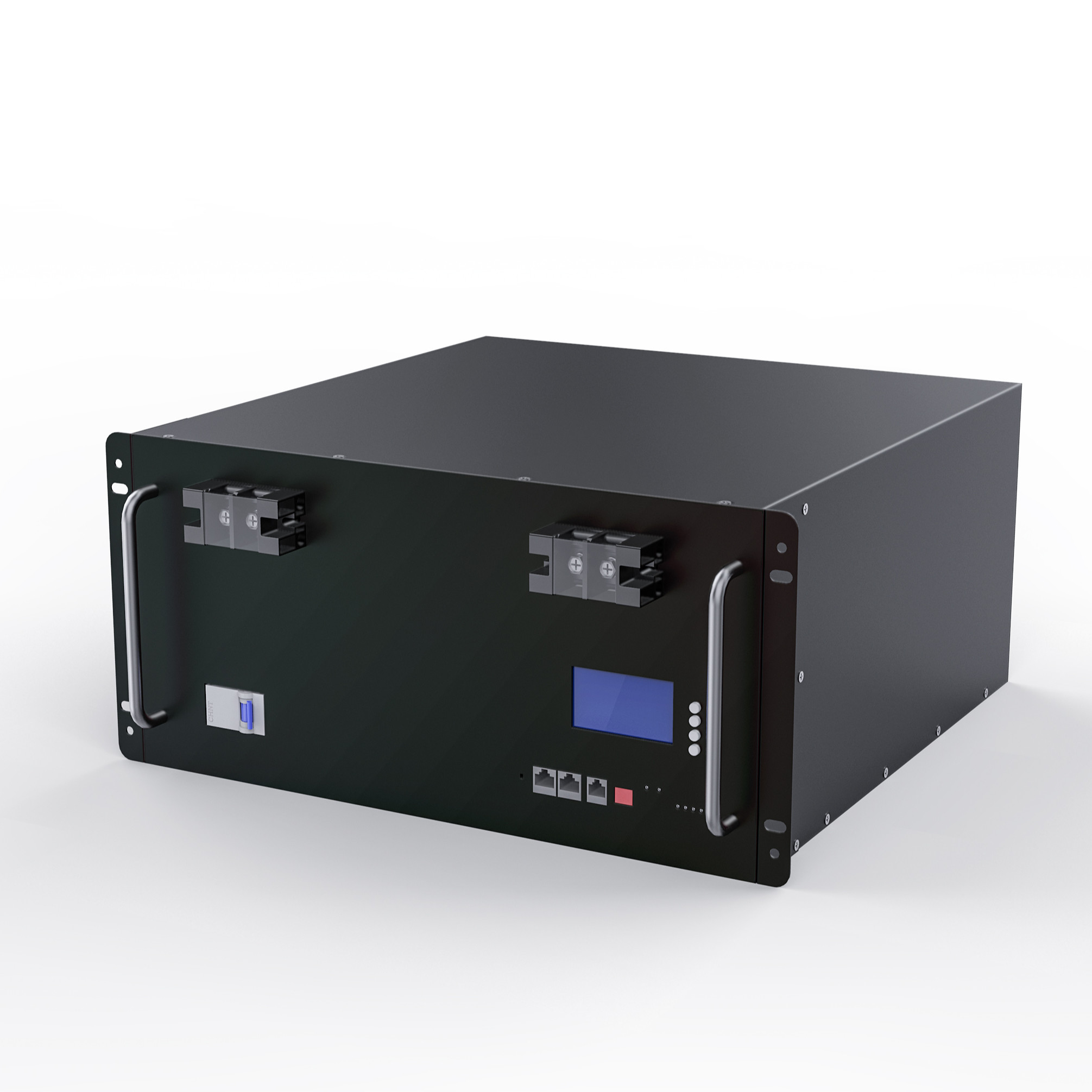

51.2V 200Ah LiFePO4 Battery Pack 48V 200Ah Battery For Home Appliances 0



Product Introduction:

51.2V100ah LFP/LiFePO4 Battery Pack



Key features
♦ Scalable to 150kWh
♦ Long Cycle Life > 8000 Cycles (90% EOL)
♦ Easy Installation, Maintenance-free, Easy Replacement
♦ Light and Compact
♦ Integrated battery management system
♦ Compatible with mainstream ESS inverters

♦ 10 Years Global Warranty

Product Advantages

*Longer cycle life - LiFePO4 batteries offers a longer cycle life Polymer batteries. Qualified LiFePO4 cells should remain 80% DOD after 2000 cycles of charging and discharging.

*Safety and stability - LiFePO4 batteries has superior thermal and chemical stability, which provides better safety
characteristics than Lithium-ion batteries with other cathode materials.



*Constant output power - LiFePO4 batteries have a very constant discharge voltage. Voltage stays close to 3.2 V during discharge
until the cell is exhausted. This allows the cell to deliver virtually full power until it is discharged.



*Environmentally friendly - LiFePO4 batteries are non-toxic, non-contaminating and contain no rare earth metals, making them an
environmentally conscious choice. The use of LiFePO4 also reduces the cost and environmental concerns of Lithium Cobalt cells,
particularly in regards of cobalt entering the environment through improper disposal.

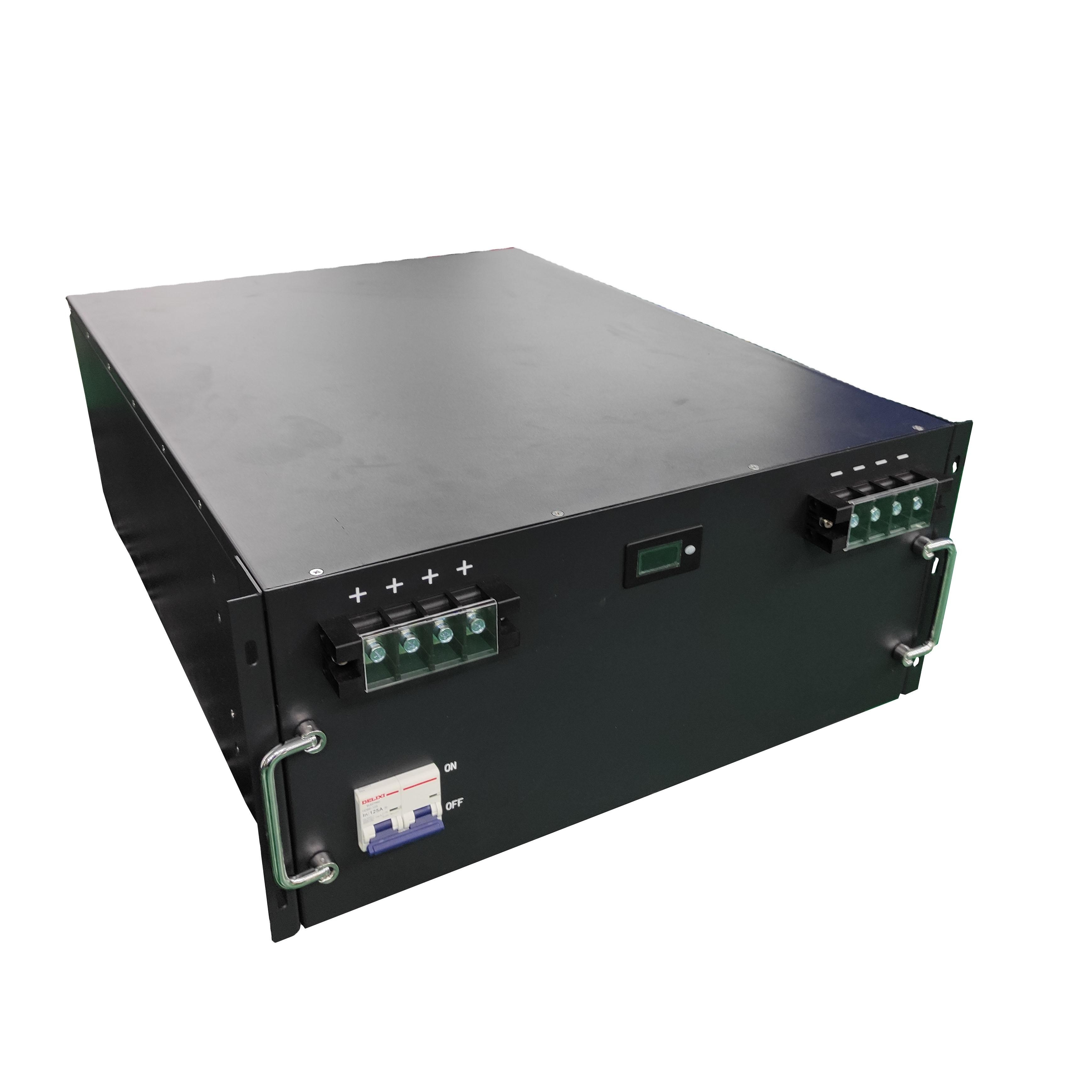

51.2V 200Ah LiFePO4 Battery Pack 48V 200Ah Battery For Home Appliances 1



Specs & parameters



NO.

Project

characteristic

1

Normal capacity

200Ah

2

Nominal energy

10KWH

3

Nominal voltage

48V (LFP-16S)

4

Internal resistance

≤100mΩ @1kHz AC

5

Normal charge voltage

58.4±0.2V

6

Float charge voltage(for Standby use)

54.4±0.2V

7

Allowed MAX charge current

100A

8

Recommended charge current

≤40A

9

Allowed MAX discharge current

200A

10

Peak discharge current/time

60A/1s (adjustable)

11

Same or different port for charging and discharging

Same

12

End of discharge voltage

40V

13

IP rating

IP66

14

Battery case

Metal

15

Dimension (can be customized)

L 720 *W 482* H 220(mm)

16

Weight (No accessories)

108KG

17

Operation temperature

Charge

0~45℃

18

Discharge

-10~60℃

19

Self-discharge rate

Residual capacity

≤3%/Month; ≤15%/ year

20

Recover capacity

≤1.5%/Month; ≤8%/ year

21

Storage environment

≤1month

-20~+60℃,5~75%RH

22

≥3month

-10~+45℃,5~75%RH

23

Recommend environment

15~35℃,5~75%RH

24

Output Connector

M25 waterproof connector

UL3135/8#

25

communication mode

RS485+RJ45-29



26

Bluetooth

Optional



27

Heating function

Yes
