| Place of Origin: | China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | CF48100T1EA |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10~15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000pcs/week |
| Brand: | Coslight Or OEM | Battery Type: | LiFePo4 |
|---|---|---|---|
| Max CH/DCH Current: | 100/100A | Communication: | CAN2.0/RS232/RS485 |
| Weight: | 49kg | Certifications: | UL & CE & IEC & UN |
| Comm Interface: | RS485，CAN. | ||
| High Light: | 51.2V Telecom Lithium Battery,48V Telecom Lithium Battery,50AH Li ion Battery 48V |
||

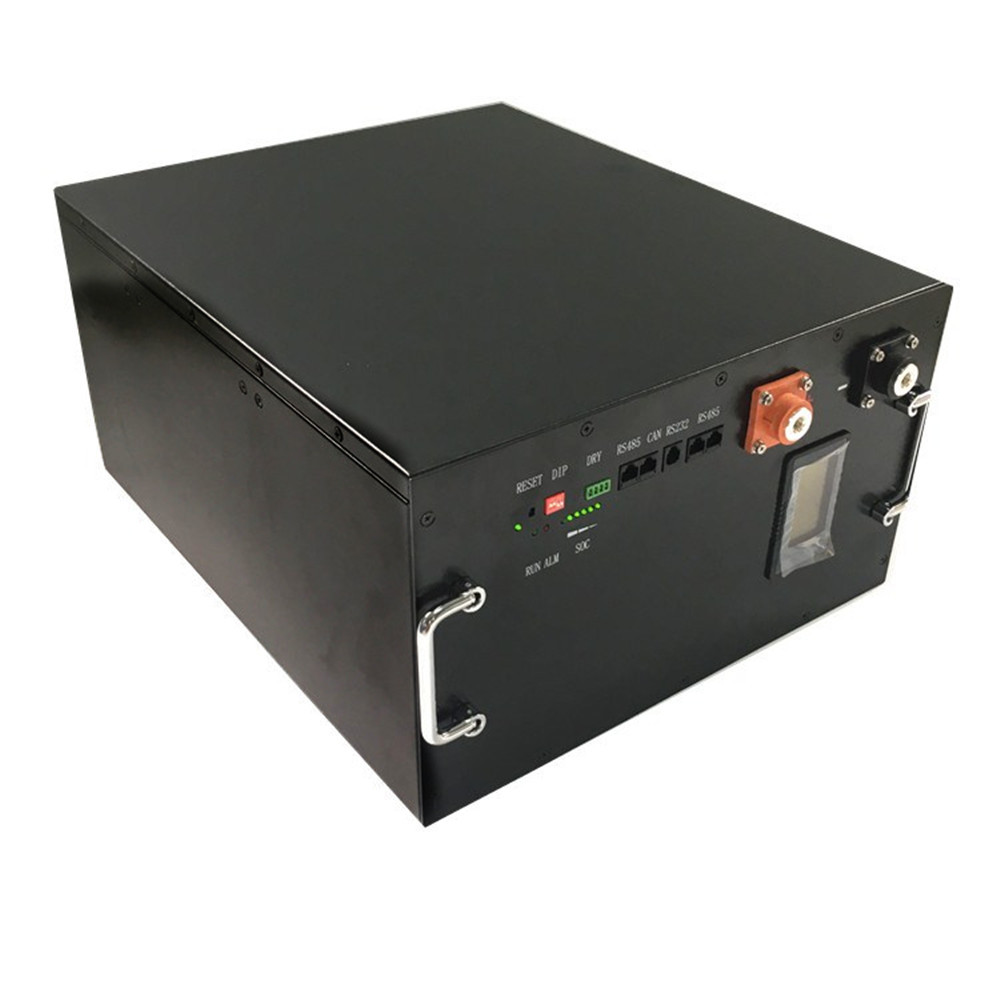

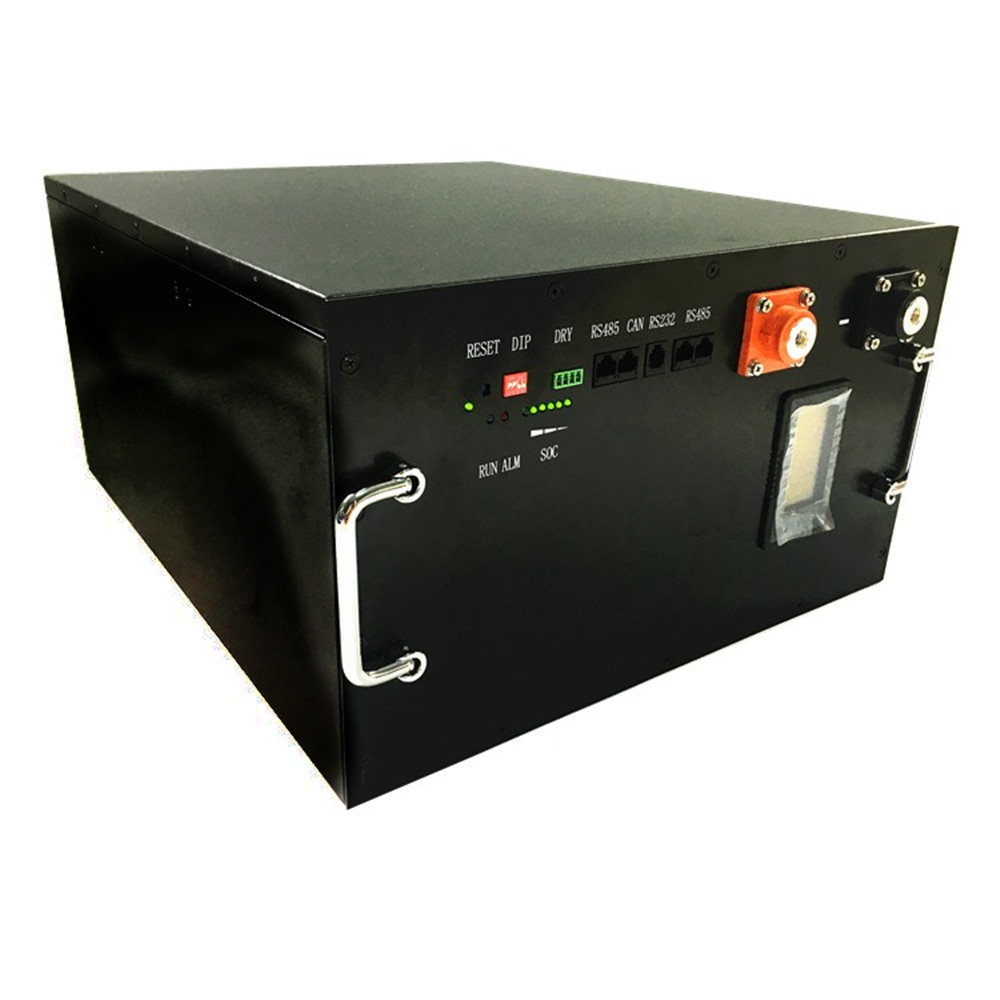

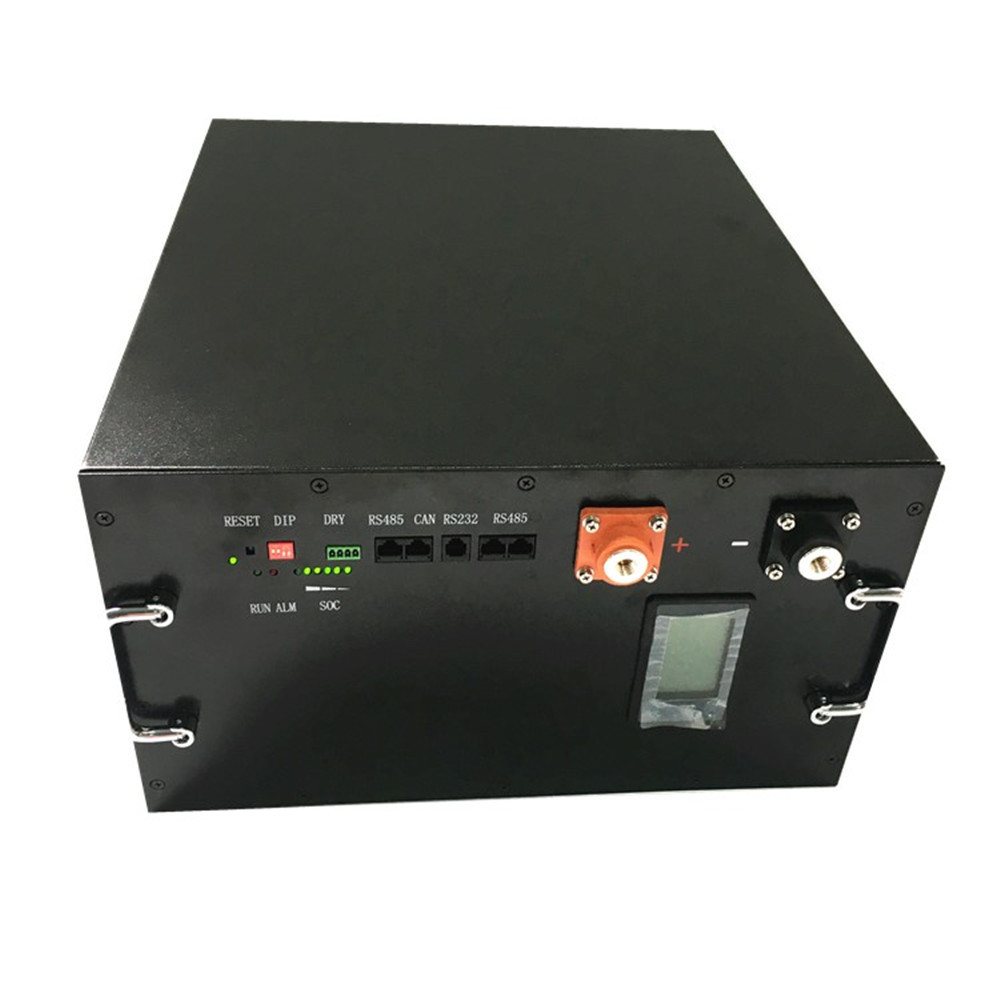

High Disharge Current 51.2V Telecom Lithium Battery Li ion Battery 48V
High Disharge Current Li-ion Battery 48V 51.2V 100Ah 200Ah Lithium Battery Telecom UPS Battery
Product information
Product Introduction:
Battery Parameter
|
Electrical Characteristics |
Nominal Voltage |
51.2V |
|
Nominal Capacity |
200Ah |
|
|
Energy |
10KWh |
|
|
Internal Resistance |
≤10mΩ |
|
|
Cycle Life |
>2000 cycles@1C 100% DOD |
|
|
Months Self Discharge |
<3% |
|
|
Efficiency of Charge |
100%@0.5C |
|
|
Efficiency of Discharge |
96-99% @1C |
|
|
Standard Charge |
Charge Cut-off Voltage |
58.4±0.2V |
|
Charge Mode |
0.2C to 58.4V, then 58.4V charge current to 0.02C(CC/CV) |
|
|
Charge Current |
20A |
|
|
Max. Charge Current |
100A |
|
|
Standard Discharge |
Continuous Current |
100A |
|
Max. Pulse Current |
250A(10S) |
|
|
Discharge Cut-off Voltage |
40V |
|
|
Environmental |
Charge Temperature |
0℃ to 45℃(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20℃ to 60℃(-4F to 140F)@60±25% Relative Humidity |
|
|
Storage Temperature |
0℃ to 40℃(32F to 104F)@60±25% Relative Humidity |
|
|
Water Dust Resistance |
IP54 |
|
|
Mechanical |
Cell&Method |
16S |
|
Case Material |
Metal case |
|
|
Dimensions(in./mm.) |
Customized size |
|
|
Weight(lbs./kg.) |
115kg |
|
|
Terminal |
M8 |
|
|
Display screen |
Optional |
Product Description
1. Safety: safest Lithium battery, CE UL approved, built-in PCM/BMS
2. Clean and Green energy, no toxic material contained
3. Long life cycle:> 2000 times, 6-8 times of lead acid battery
4. No memory effect, highly efficient, charge anytime
5. Small size and light weight: 1/2 size& weight of lead acid battery
6. Good performance at high temperature
7. Low self-discharge rate: < 3% monthly
FAQ
Q1: Are you a factory or trading company?
A: We are a professional battery manufacturer with our factory and brand. We provide all kinds of OEM/ODM services for clients, which can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
Q4. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A: Yes, We have a professional QC team to make sure that the product is in good condition before sending out the goods.
Q7: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
