| Place of Origin: | China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | CF48100T1EA |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10~15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000pcs/week |
| Brand: | Coslight Or OEM | Battery Type: | LiFePo4 |
|---|---|---|---|
| Communication: | CAN2.0/RS232/RS485 | Weight: | 49kg |
| Certifications: | UL & CE & IEC & UN | Comm Interface: | RS485 CAN |
| High Light: | 5kwh Telecom Lithium Battery,48V 100Ah Telecom Lithium Battery,Coslight Lithium 48V 100Ah |
||

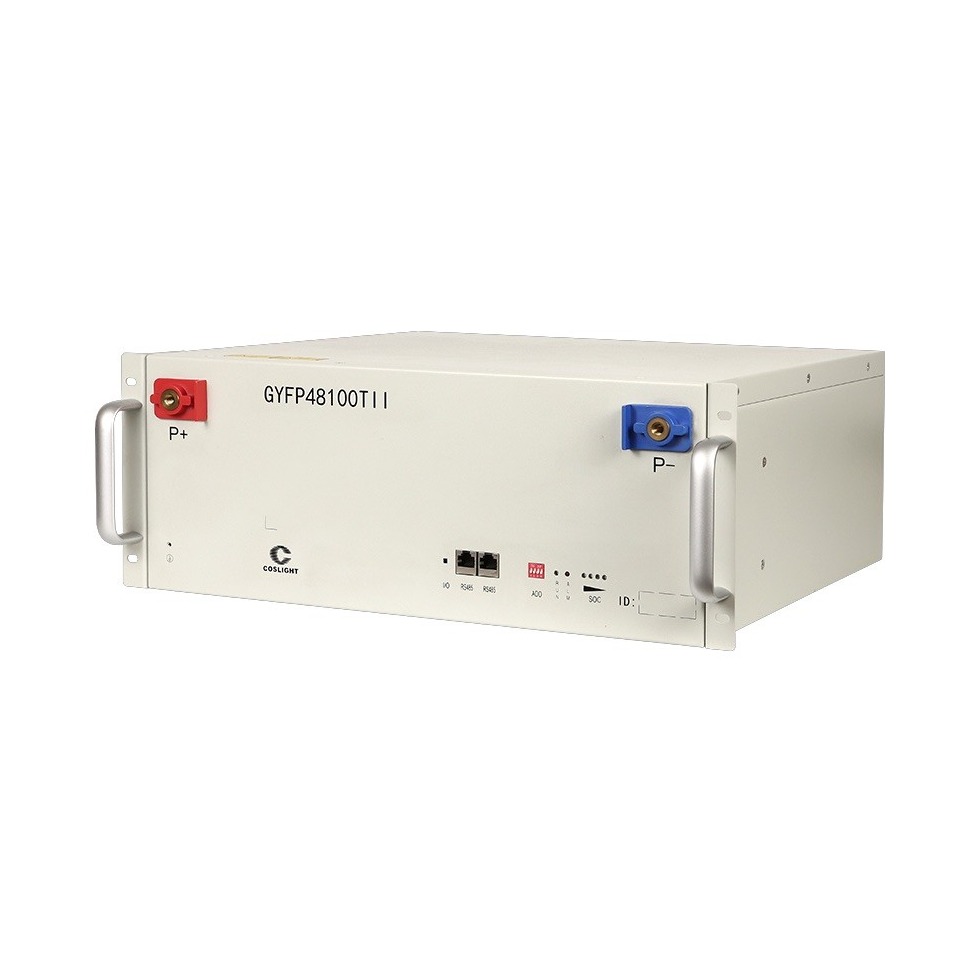

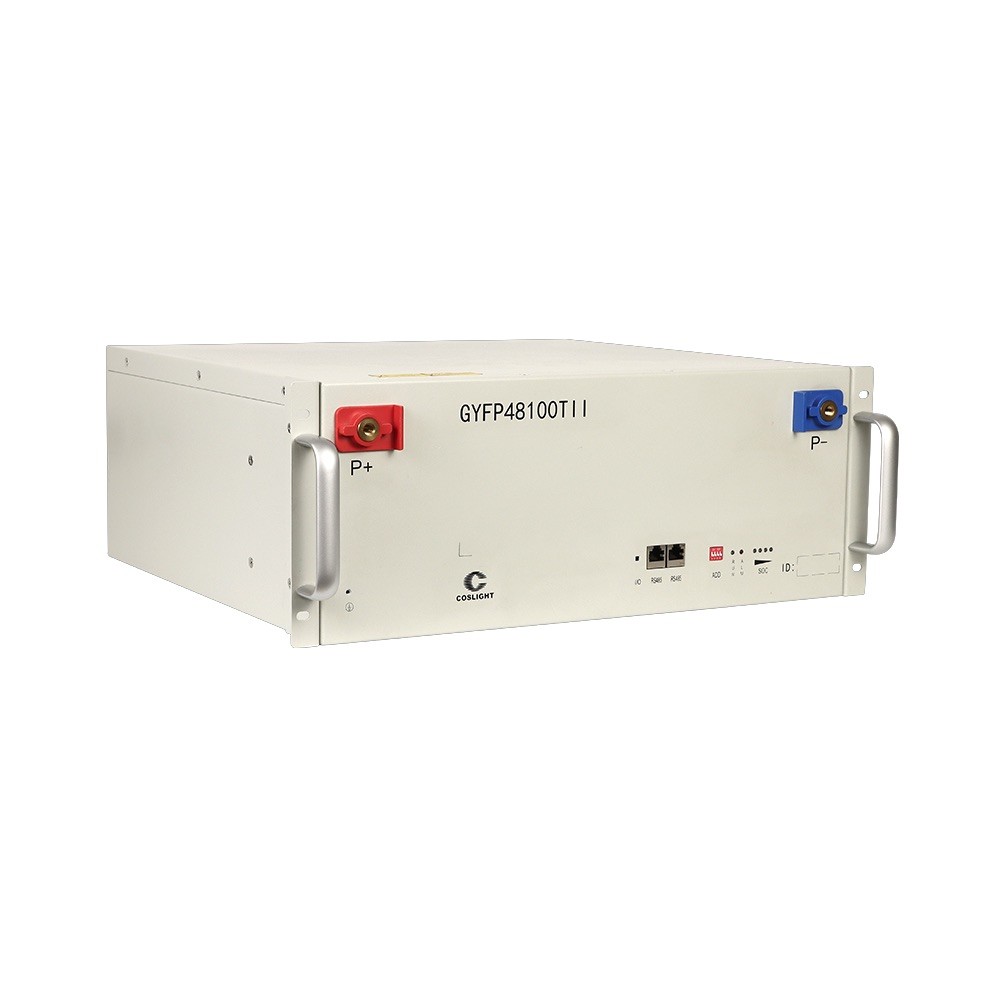

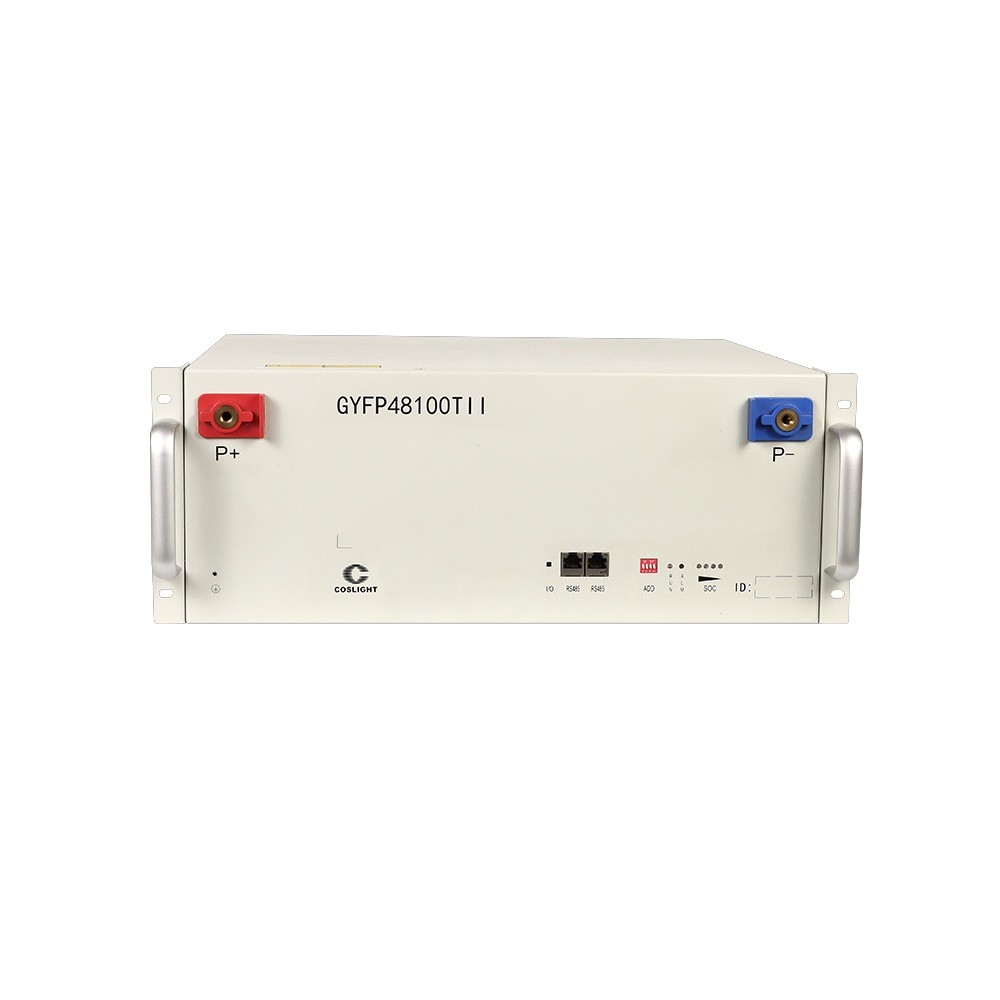

5kwh Telecom Lithium Battery For Telecom Base Station Lithium 48V 100Ah
Product Introduction:
LiFePO4 48v 100ah 5kwh lithium battery for telecom base station tower
Battery Model: DL-LFP48100-16S1P
Battery Dimenssion: 482*430*175mm
Battery cell type: Prismatic lifepo4 3.2V 100AH
A full charge at: 58.4v
Discharge cutting off at 40V
Max charge at: 100A
Max discharge continuous: 100A
Peak discharge at 175-200A /10S
Composed way:16pcs cells +1 BMS 16S-100A 5KW power Current
Cycle life: 3000 times at 80% dod, 6000 times at 60% dod, 8000 times at 40% dod
Working tem premature: -20 ℃- 60 ℃
Guarantee : 3 years
|
P |
Product Model No. |
CF48100T1EC |
|
Anode Material |
LFP |
|
|
|
||
|
Max CH/DCH current |
100/100A |
|
|
Cycle life |
3000 times |
|
|
Standard capacity |
100Ah |
|
|
Weight |
49kg |
|
|
Width × depth × height |
440mm×395mm×176mm |
|
|
Self-discharge rate@25℃ |
＜3%(90 days Storage) |
|
|
Comm interface |
RS485,CAN. |
|
|
Max parallel quantity |
15 |
|
|
Max parallel power |
57.6KW |
|
|
Terminal connector |
M8, Torque: 8N.m |
|
|
Installation method |
19inch rack |
|
|
Protection functions |
Over Temp. , Over current, Short circuit , Over CH & Over DCH protections. |
|
|
Certifications |
UL & CE & IEC & UN |
|
|
Design life |
15years |
Product Description
1. Safe - fire resistance
2. Long cycle life - 95% DOD cycle Over 3000 times
3. Excellent high-temperature performance - can work well under 60 ° C operating environment
4. High energy density - lighter and smaller
5. Maintenance-free type.
FAQ
Q1: Are you a factory or trading company?
A: We are a professional battery manufacturer with our factory and brand. We provide all kinds of OEM/ODM services for clients, which can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
Q4. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A: Yes, We have a professional QC team to make sure that the product is in good condition before sending out the goods.
Q7: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
