| Place of Origin: | China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | CF48100T1EA |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10~15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000pcs/week |
| Brand: | Coslight Or OEM | Battery Type: | LiFePo4 |
|---|---|---|---|
| Max CH/DCH Current: | 100/100A | Communication: | CAN2.0/RS232/RS485 |
| Weight: | 49kg | Certifications: | UL & CE & IEC & UN |
| Comm Interface: | RS485，CAN. | ||
| High Light: | Boots Lithium Battery 48V 100Ah,Yacht Lithium Battery 48V 100Ah,Boots 48V Lifepo4 100Ah |
||

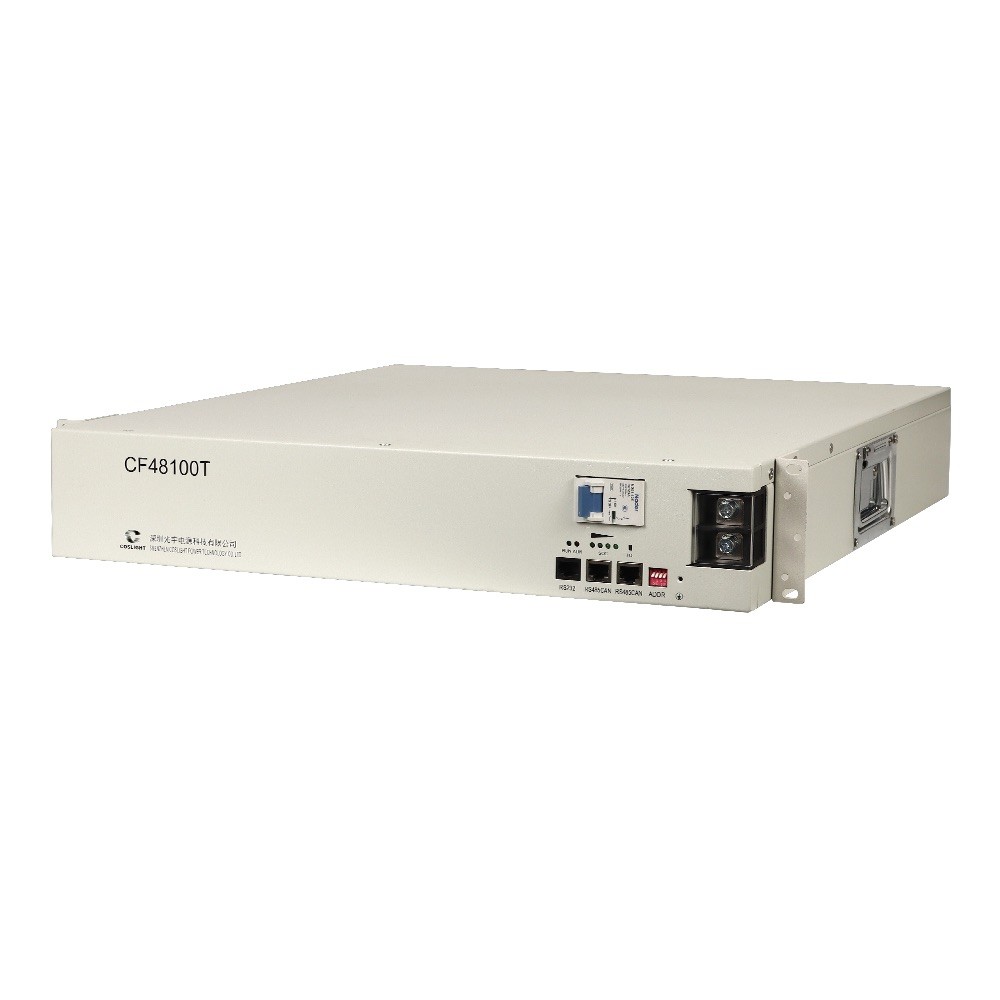

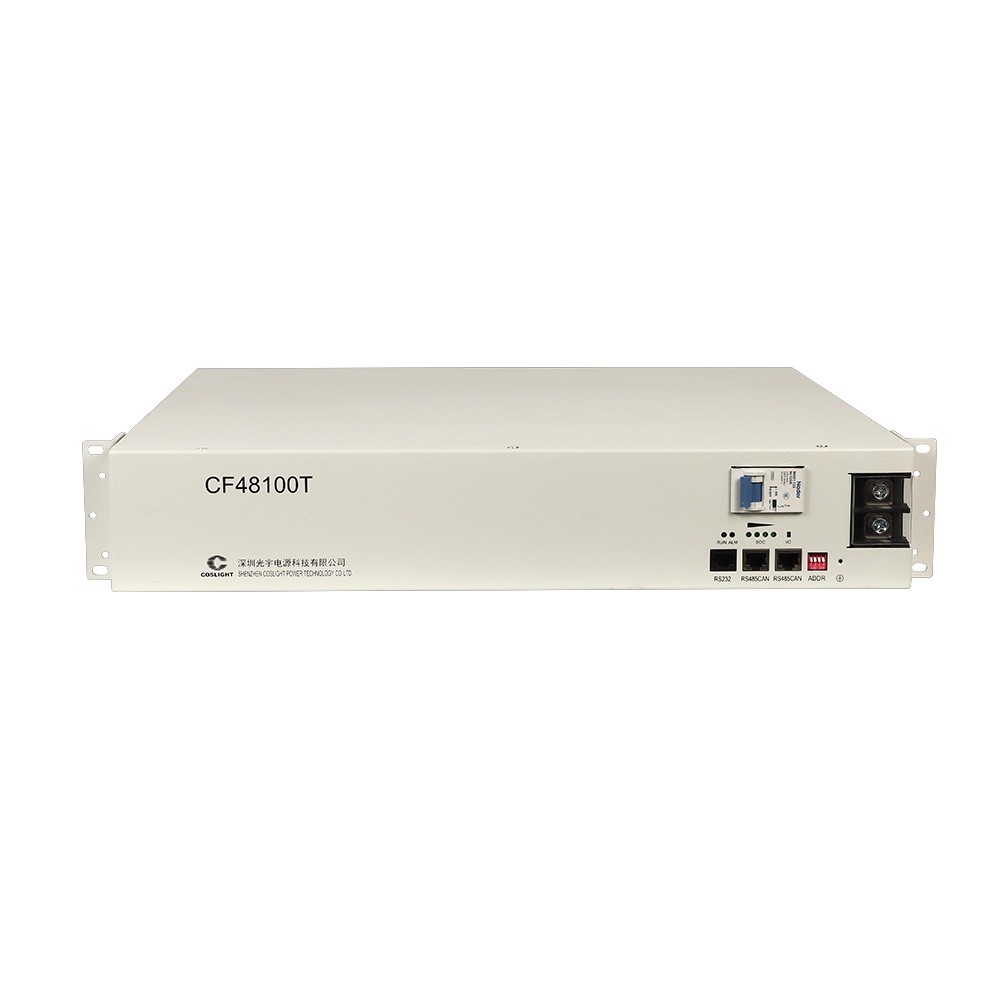

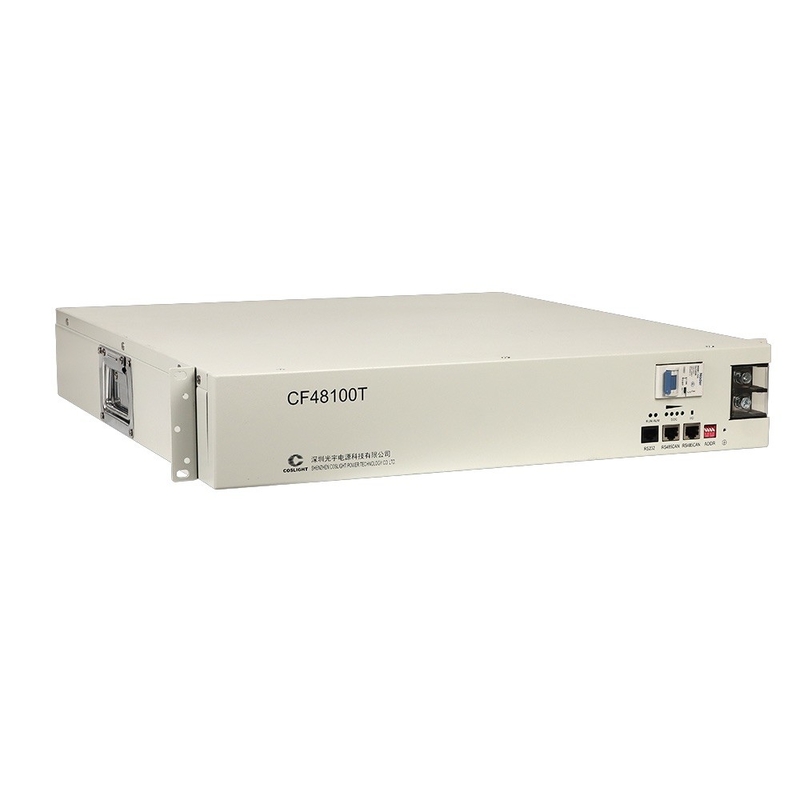

Yacht Lithium Battery 48V 100Ah Energy Storage 48V Lifepo4 100Ah
48v 100ah lifepo4 battery energy storage 2U 3U rack mount lifepo4 battery for solar power system
Product Introduction:
ELECTRICAL PERFORMANCE
|
Nominal Voltage |
48V |
|
Nominal Capacity |
100AH |
|
Capacity @ 20A |
300 min |
|
Energy |
5120Wh |
|
Communication |
CAN2.0/RS232/RS485 |
|
Resistance |
≤45 mΩ @ 50% SOC |
|
Efficiency |
>96% |
|
Module Parallel |
Up to 16 packs |
CHARGE PERFORMANCE
|
Recommended Charge Current |
20A |
|
Maximum Charge Current |
100A |
|
Recommended Charge Voltage |
54V |
|
BMS Charge Cut-Off Voltage |
<54.7V (3.65V/Cell) |
|
Reconnect Voltage |
>54 V (3.6V/Cell) |
|
Balancing Voltage |
<54 V (3.6V/Cell) |
|
Maximum Batteries in Series |
15(*Consult MUST) |
MECHANICAL PERFORMANCE
|
Dimension (L x W x H) |
482*480*133mm 19.0 x 18.9 x 5.2” |
|
Approx. Weight |
20.0 lbs (44kg) |
|
Terminal Type |
DIN POST |
|
Terminal Torque |
80 ~ 100 in-lbs (9 ~ 11 N-m) |
|
Case Material |
SPPC |
|
Enclosure Protection |
IP65 |
DISCHARGE PERFORMANCE
|
Maximum Continuous Discharge Current |
100 A |
|
Peak Discharge Current |
110 A (3s) |
|
BMS Discharge Cut-Off Current |
150 A (300ms) |
|
Balancing open voltage |
51.7V (3.45V/Cell) |
|
Recommended Low Voltage Disconnect |
41.2 V (2.75V/Cell) |
|
BMS Discharge Cut-Off Voltage |
>30.0V (2s) (2.0V/Cell) |
|
Reconnect Voltage
|
>37.5 V (2.5V/Cell) |
|
Short Circuit Protection |
250 ~ 500 μs |
TEMPERATURE PERFORMANCE
|
Discharge Temperature |
-4 ~ 131 ºF (-20 ~ 55 ºC) |
|
Charge Temperature |
-4 ~ 113 ºF (0 ~ 45 ºC) |
|
Storage Temperature |
23 ~ 95 ºF (-5 ~ 35 ºC) |
|
BMS High Temperature Cut-Off |
149 ºF (65 ºC) |
|
Reconnect Temperature |
131 ºF (55 ºC) |
HEATING FOIL PERFORMANCE
|
Heating Temperature Range |
-4 to 41 ºF (-20 to 5 ºC) |
|
Heating Time |
Approximately 1 hour @ 7.5 A |
|
BMS Heating Foil Cut-Off |
158 ºF (70 ºC) |
Product Description
1. Safe - fire resistance
2. Long cycle life - 95% DOD cycle Over 3000 times
3. Excellent high-temperature performance - can work well under 60 ° C operating environment
4. High energy density - lighter and smaller
5. Maintenance-free type.
6. No contamination
