200ah Marine Lithium Battery 24v Lifepo4 Battery Pack For Rv Camper Yachat

Basic Information
Place of Origin: CHINA
Brand Name: Coslight or OEM
Certification: UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS
Model Number: 24200
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 10~15days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 8000pcs/week
Warranty: 1 Year Certification: CE,ISO9001,ISO
Condition: New Material: Cast Iron
Type: LIFEPO4 Capacity: 200Ah
High Light:

24v Marine Lithium Battery

,

200ah Marine Lithium Battery

,

24v Lifepo4 Battery Pack

200ah Marine Lithium Battery 24v Lifepo4 Battery Pack For Rv Camper Yachat



24v Lifepo4 Battery Pack 200ah Lithium Battery For Rv Camper Yacht Marine Sailing Boat Solar



1 x 12V150Ah LiFePO4 Battery Module
1 x 4S-150A PCM
1 x Plastic Battery Case
2 x M8 Terminals

PRODUCT SPECIFICATION-12V 24v 48v 80ah 120ah 150ah 200Ah golf cart lithium li ion battery

Normal Voltage

12.8V

Normal Capacity

150Ah

Battery Energy

1920Wh

Inner Resistance

< 60mΩ

Battery Cycle Life

2000 Times @100%DOD
6000 Times @80%DOD

Cell Configuration

LiFePO4 26650 3.2V 3200mAh-4S47P

Reference Battery Size

(342±1)*(173±1)*(212±1) mm

Reference Battery Weight

18.2±0.2 kg

Battery Encapsulation

Plastic Case

Charge Voltage

14.4V

Charge Mode

CC/CV

Normal Charge Current

<=50A

Normal Discharge Current

75A

Max. Continuous Output Current

150A

Max. Continuous Output Power

1920W

Passive Protection Function

Over charge protection; Over discharge protection; Over
current protection, etc

Operation Temperature Range

Charge: 0'C---45'C
Discharge : -20'C---60'C

Battery Storage Temperature

-20'C---25'C

Individual Cell Approval

CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS



Safety performance classification-12V 24v 48v 80ah 120ah 150ah 200Ah golf cart lithium li-ion battery

(1) Resistance to heavy loads. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(2) Resistance to thermal shock. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(3) Anti-overcharge. The battery module shall be tested according to the regulations and shall not ignite or explode.

(4) Resistance to over-discharge. The battery module shall be tested according to the regulations and shall not ignite or explode.

(5) Resistance to short circuit. The battery module shall be tested according to the regulations and shall not ignite or explode.

(6) High-temperature storage. The battery shall be tested according to the regulations and shall not leak, smoke, catch fire or explode.

(7) Anti-heating. The battery module is tested according to the regulations. No part of the explosion battery penetrates the screen, and some or all of the batteries protrude from the screen.

(8) Anti-puncture. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(9) Anti-extrusion. The battery module shall be tested according to the regulations and shall not ignite or explode.

(10) Resistance to low pressure. The battery pack shall be tested by regulations and shall not leak, smoke, catch fire or explode.

(11) Constant damp heat. After the battery pack is tested according to the regulations, its appearance shall be free from obvious deformation, rust, smoke, or explosion, and its capacity shall not be less than 90% of the rated value.

(12) Anti-vibration. The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke, or explosion, and it can work normally.

(13) Anti-collision. The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke, or explosion, and it can work normally.

(14) Temperature cycling. The battery pack shall be tested by the provisions of 6.6.15, which shall not leak, smoke, ignite or explode; the appearance of the battery pack shall be free of cracks, no loss of quality, and the capacity shall not be lower than 70% of the initial state.

(15) Flame retardant properties. For battery packs with plastic casing and protective cover, the test shall be carried out by the provisions of 6.6.16. The outer casing shall comply with the provisions of Article 8.3.2 of the GB/T2408-2008, FH-1 (horizontal level), and 9.3.2 of FV-0 (vertical). Level) requirements.

(16) Insulation resistance. For a battery pack with a metal case, the insulation resistance of the battery pack's metal and cathode housings is not less than 2 MW.

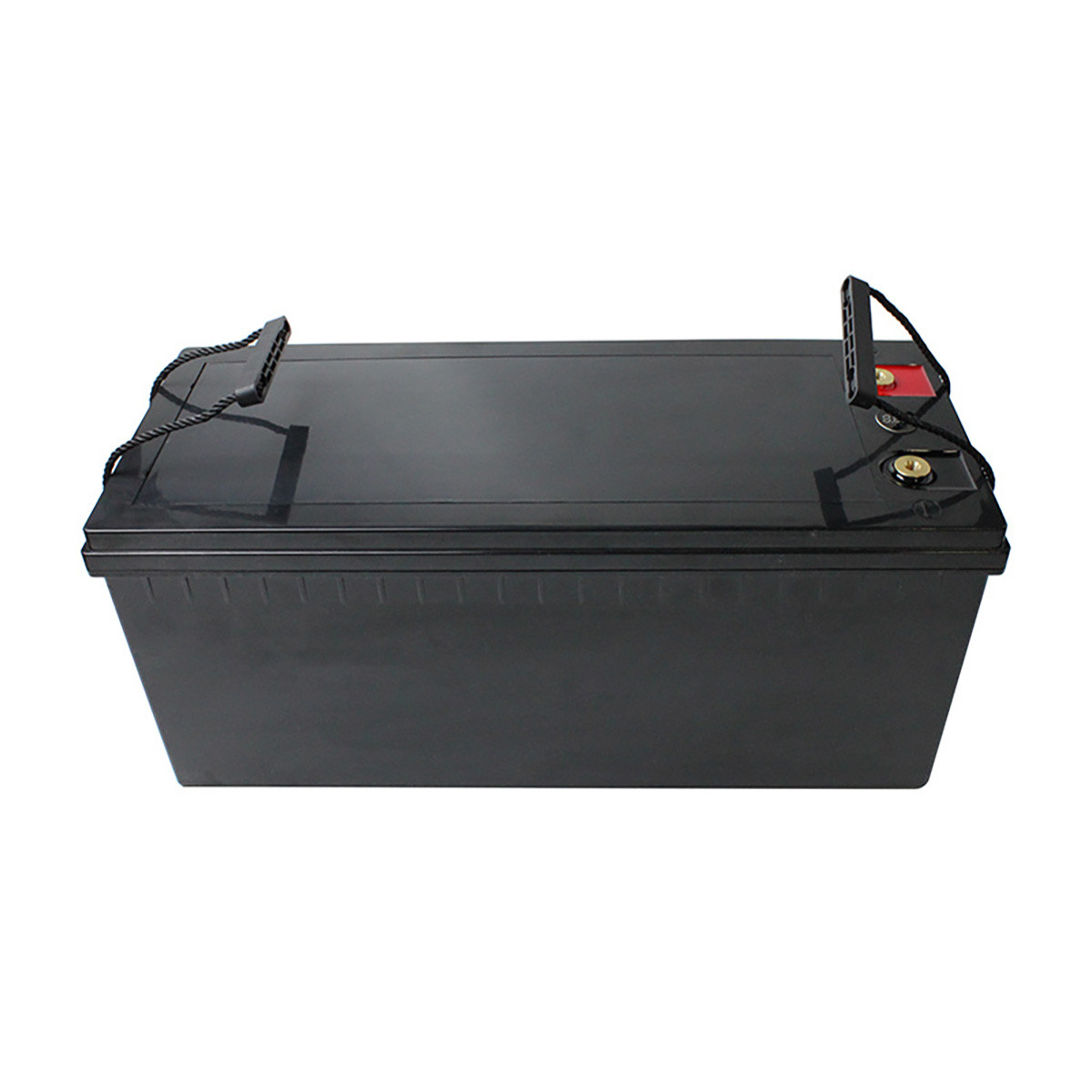

200ah Marine Lithium Battery 24v Lifepo4 Battery Pack For Rv Camper Yachat 0

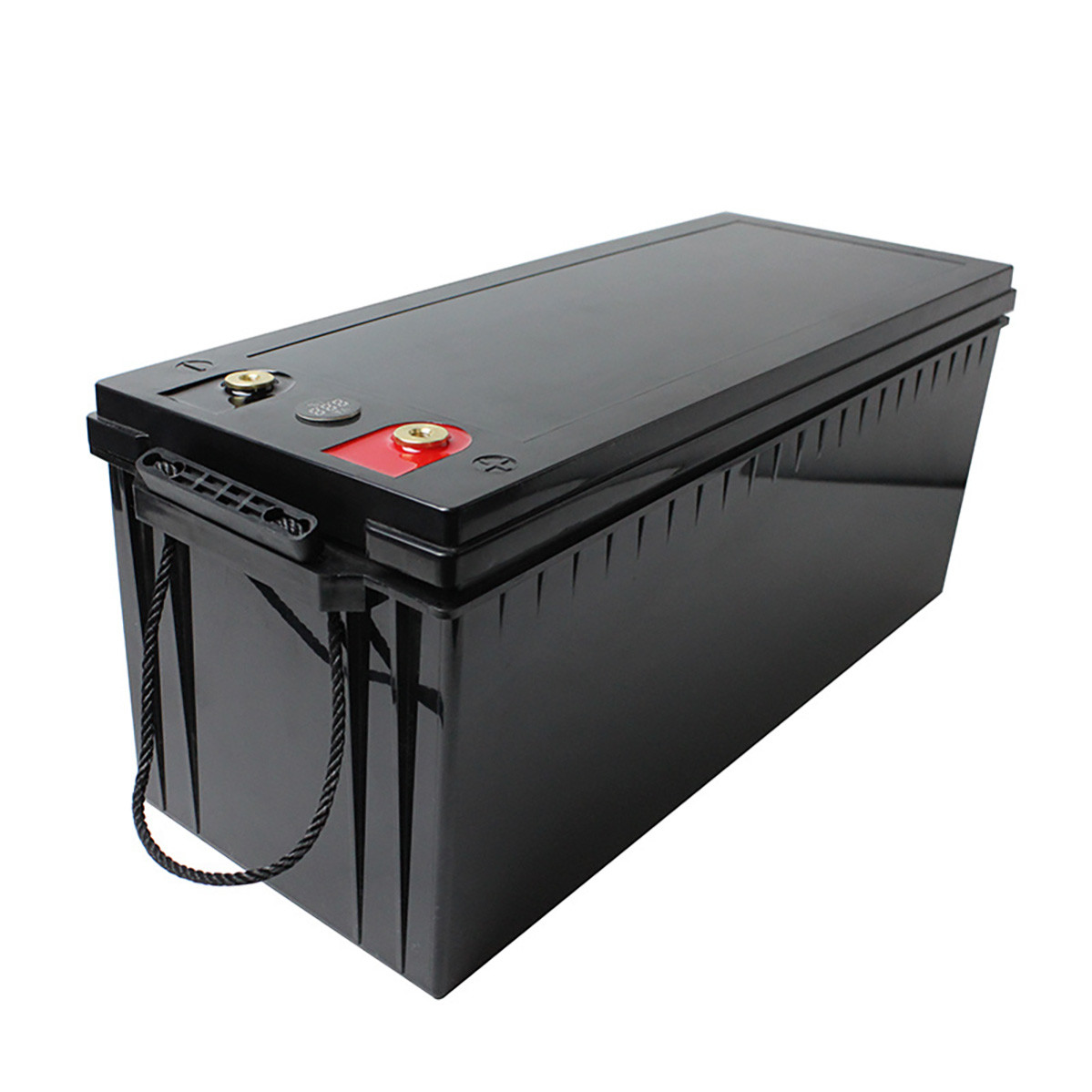

200ah Marine Lithium Battery 24v Lifepo4 Battery Pack For Rv Camper Yachat 1

FAQ
Q1: Are you a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, which can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
Q3. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4. Do you test all your goods before delivery?
A: Yes, We have a professional QC team to make sure that the product in good condition before sending out the goods.
Q5: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
