| Place of Origin: | HUNAN PROVINCE, CHINA |
|---|---|
| Brand Name: | COSPOWERS |
| Certification: | / |
| Model Number: | POWER SUPPLY SYSTEM CABINET |
| Minimum Order Quantity: | 100-400 SETS |
| Price: | USD 1000-1500 Per Set according to configurations |
| Packaging Details: | Regular Packing with wooden crate |
| Delivery Time: | 45 WORK DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Thousands of Units Per Month |

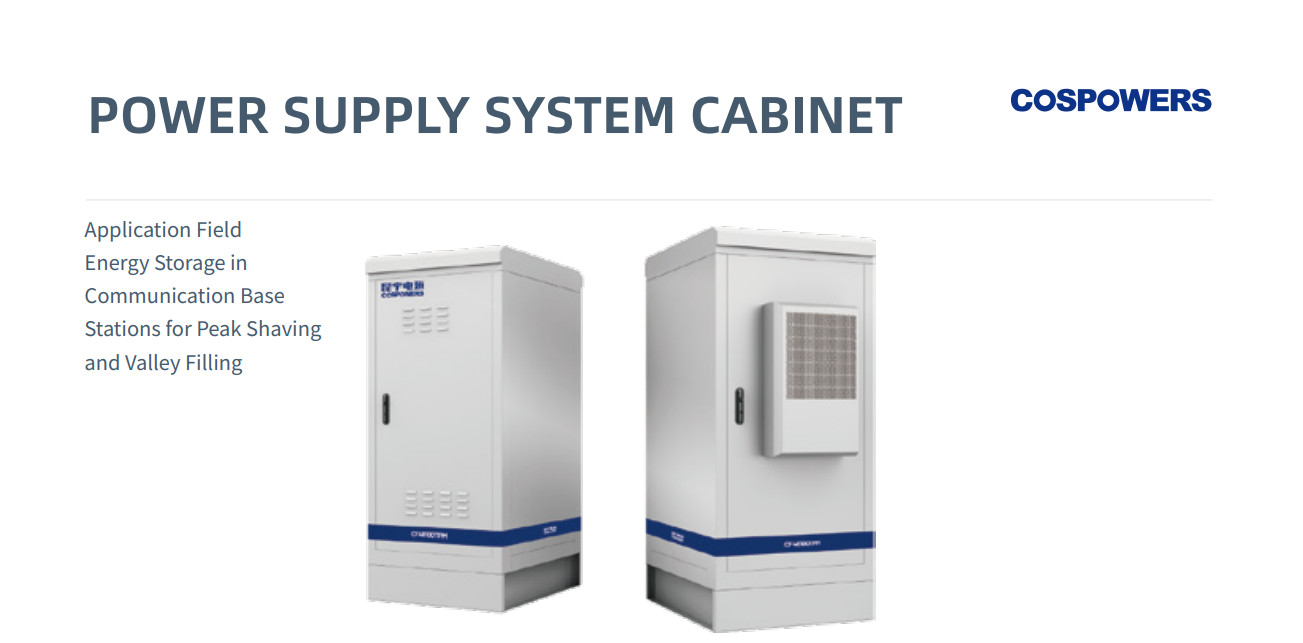

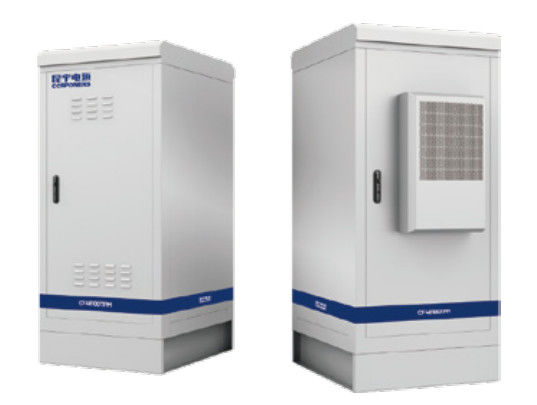

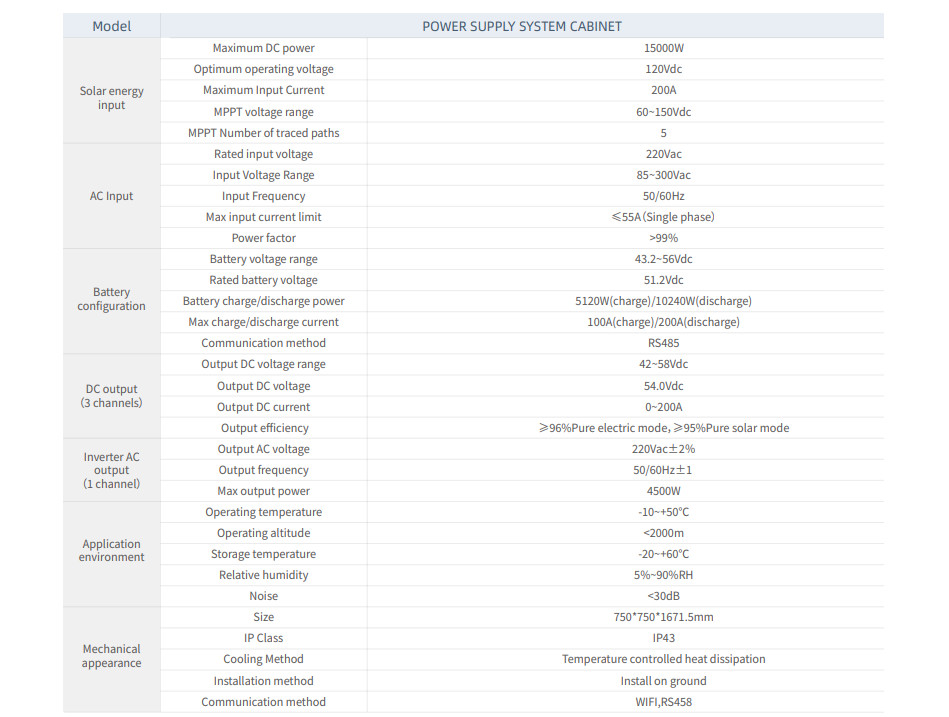

COSPOWERS Power Supply System Cabinet is an advanced energy storage solution designed for communication base stations. It is engineered to support peak shaving and valley filling, enhancing energy efficiency. This system features a maximum DC power of 15000W and operates optimally at a voltage of 120Vac. It can handle a maximum input current of 200A and supports an MPPT voltage range of 60-150Vdc. The cabinet is equipped with a battery configuration that supports charging and discharging at rates of 100A, and it can manage up to 3 channels of DC output. The system is designed to operate in temperatures ranging from -10°C to 45°C and has a storage temperature range of -20°C to 60°C. Its robust construction includes an IP53 rating for dust and water resistance, ensuring reliability in various environments. The Power Supply System Cabinet is also equipped with a temperature-controlled heat dissipation system and supports WiFi and RS485 communication methods for easy integration and monitoring.
