| Place of Origin: | GuangDong,China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | 12v 12Ah |
| Minimum Order Quantity: | 100 pieces |
| Price: | USD430/pc |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T, D/A, D/P, L/C |
| Supply Ability: | 5000pcs per month |
| Keywords: | 120 Lifepo4 Battery | Material: | Lifepo4 LFP |
|---|---|---|---|
| OEM / ODM: | Accept | Packing: | Customize |
| Payment: | TT DP FOB | Certification: | CE UL UN EN |
| Size: | Customized | Connection Mode: | Series Or Parallel Both |
| High Light: | 24V 12Ah LiFePO4 Battery Pack,Electric Wheelchair LiFePO4 Battery Pack,24V 12Ah Electric Wheelchair Battery |
||

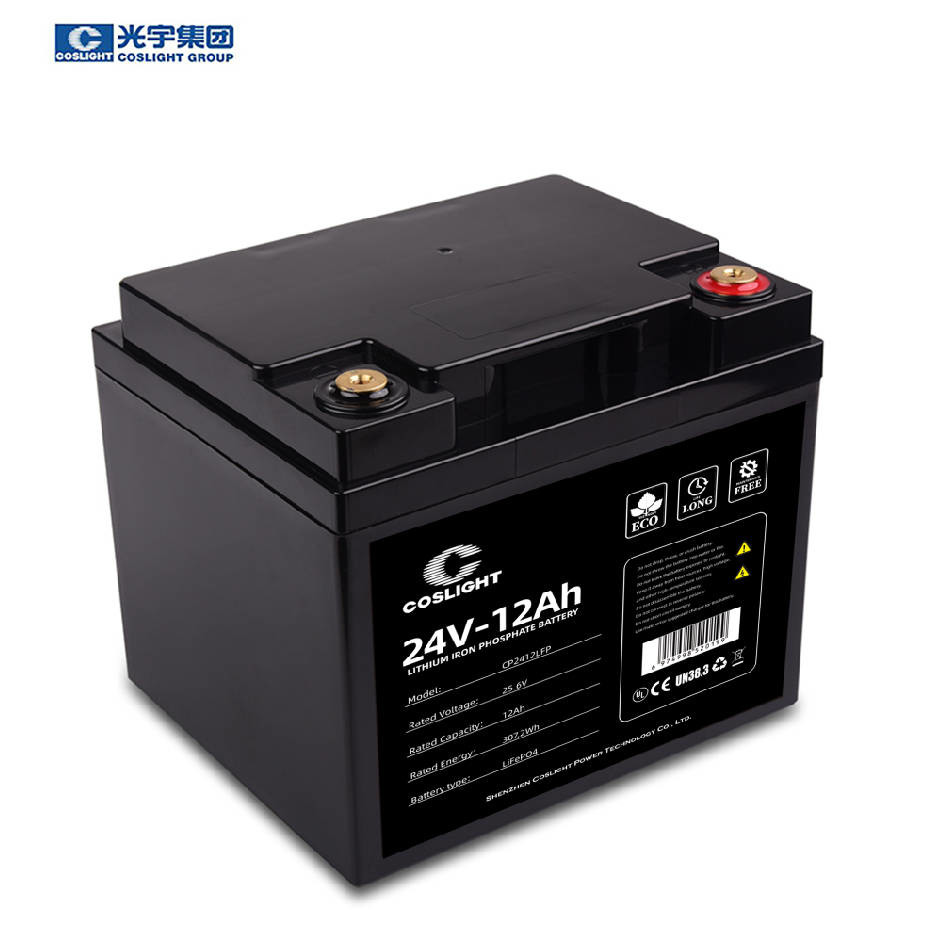

Portable LiFePO4 Battery Pack 24V 12Ah Electric Wheelchair Battery
LiFePO4 battery pack 24V 12Ah for electric wheelchair battery long cycle life
Product Information
Main features:
· About 10 times longer life cycle than a lead-acid battery.
· High energy density, about 2 times more capacity with the same size
· Fast charging and large current discharge without damaging the battery.
· Smart battery with charging, discharging, short circuit, and temperature rising control by BMS.
· environment-friendly products, low pollution
· Drop-in replacement and lower TOC (Total Operation Cost) during battery life.
Main applications of LifePO4 battery pack:
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawnmower
4. Remote control cars, electric boats, aircraft, toys
5. Solar and wind power generation energy storage devices, solar systems, Telecom base Station
6. Small medical equipment and portable equipment
7. Solar energy lights,bicycle lights,LED lights,bright flashlight,solar street lights
Products Description
| ELECTRICAL SPECIFICATIONS | |
| Nominal Voltage | 25.6 V |
| Nominal Capacity @ 0.2C | 12 Ah @ 0.2C |
| Energy | 281.6 Wh |
| Resistance | 50mΩ |
| Cycle Life | 2500+cycles @ 1C 100% DOD |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series/Parallels | 4S or 4P |
| MECHANICAL SPECIFICATIONS | |
| Length | 77 ± 2 mm |
| Width | 181 ± 2 mm |
| Height | 170 ± 2 mm |
| Weight | 2.5 Kg |
| Case Material | ABS |
| Terminal | M5 |
| Enclosure Protection | IP65 |
| CHARGE & DISCHARGE SPECIFICATIONS | |
| Monthly Self Discharge | Less than 2% |
| Efficiency of Charge | 100% @ 0.5 C |
| Efficiency of Discharge | 96 - 99% @ 1 C |
| Charge Voltage | 29.2 ± 0.2 V |
| Charge Model CC & CV |
0.2C to 29.2 V , then 29.2V, charge current to 0.02C |
| Standard Charge Current | 5.5 A |
| Max. Charge Current | 11 A |
| Max. Continuous Discharge Current | 11 A |
| Peak Discharge Current | 22 A (3S) |
| BMS Discharge Cut-off Voltage | 20 V |
| Charge Temperature | 0~45 ℃ |
| Discharge Temperature | -20℃ to 60 ℃ |
| Storage Temperature | -20℃ to 45 ℃ |
