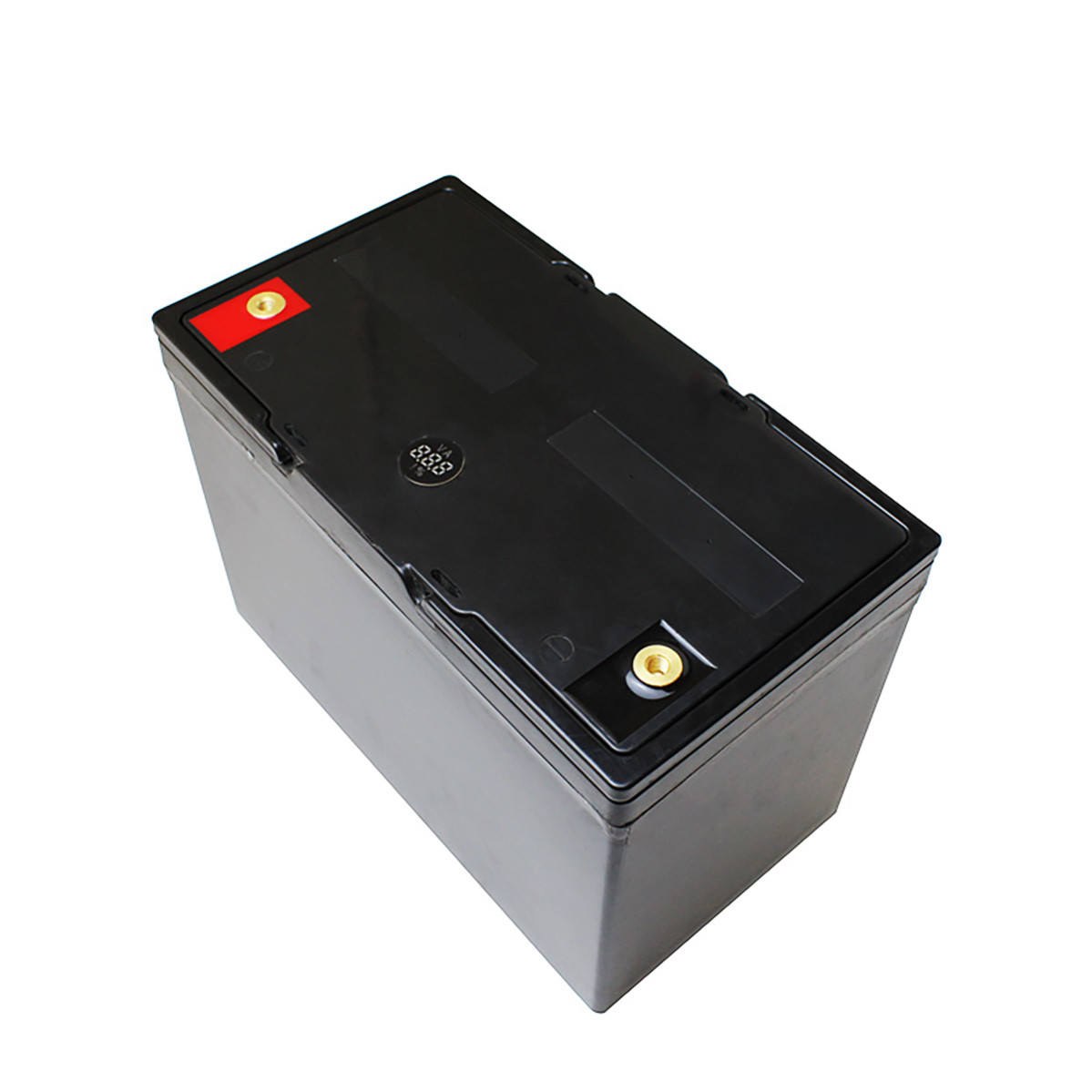

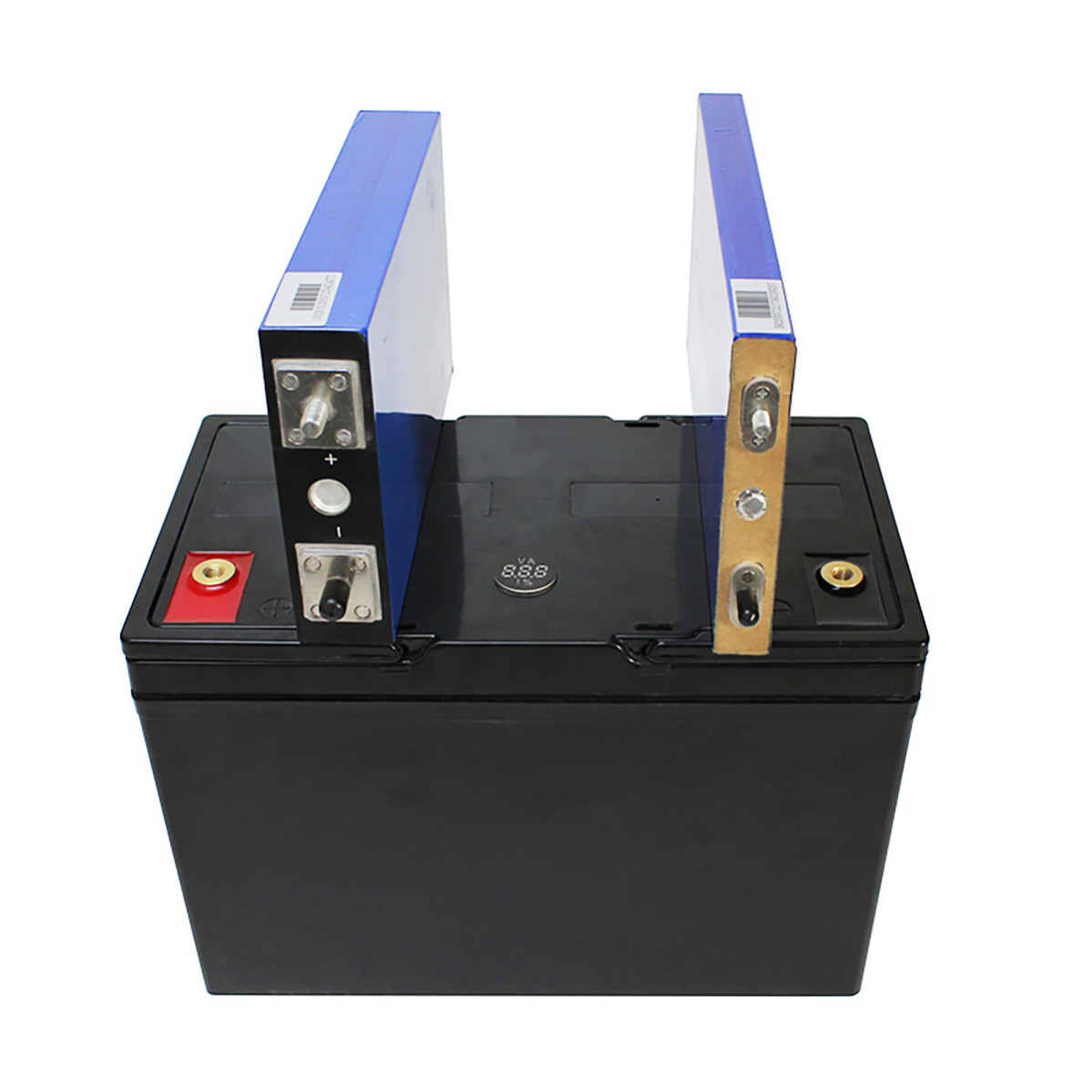

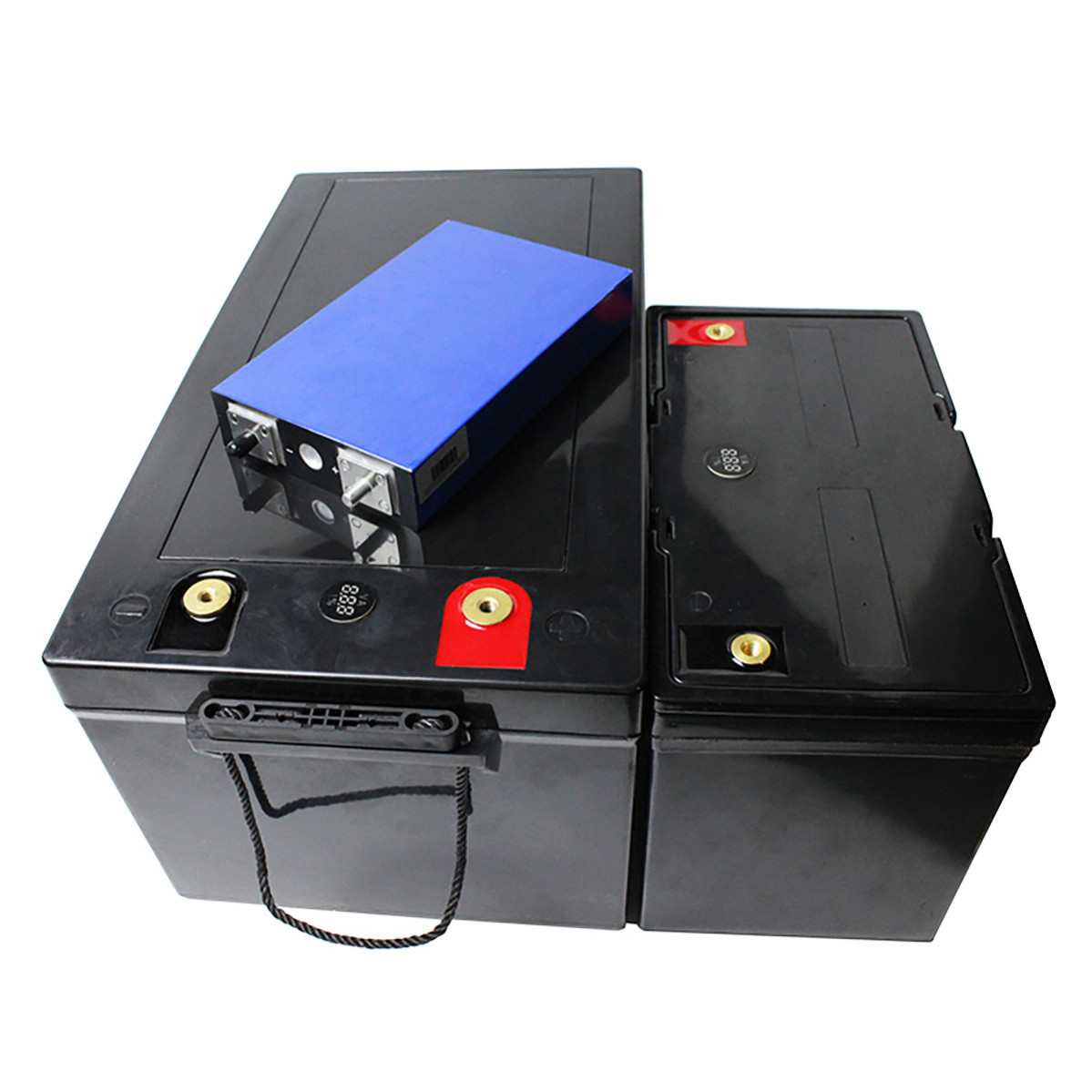

Deep Cycle 12V Solar Street Light Battery Golf Cart EV lifepo4 100Ah

Basic Information
Place of Origin: CHINA
Brand Name: Coslight or OEM
Certification: UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS
Model Number: Solar Street Light
Minimum Order Quantity: 10
Price: 390.00
Packaging Details: Wooden box
Delivery Time: 10~15days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 8000pcs/week
Application: ROAD,Highway,outdoor,courtyard,Garden Ip Rating: IP 66
Light Source: LED,Fluorescent,HID,Halogen Bulbs Working Lifetime(hour): 50000,100000
Power: 30W 60W 90W,100W Working Temperature:: -10~60℃
Capacity:: 100Ah
High Light:

12V Solar Street Light Battery

,

100Ah Solar Street Light Battery

,

100 ah 12v lifepo4 deep cycle battery

Deep Cycle 12V Solar Street Light Battery Golf Cart EV lifepo4 100Ah



Solar Battery 12V 100Ah Lithium-Ion Solar Street Light Battery Deep Cycle LED Light Golf Cart EV

Deep Cycle 12V Solar Street Light Battery Golf Cart EV lifepo4 100Ah 0

Key Features :
♦Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than a lead-acid battery, helping to minimize replacement cost and reduce the total cost of ownership
♦Lighter Weight: About 40% of the weight of a comparable lead-acid battery. A " drop-in" replacement for lead-acid batteries
♦Higher Power: Delivers twice the power of a lead-acid battery, even high discharge rate, while maintaining a high energy capacity
♦Wider Temperature Range: -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes



Deep Cycle 12V Solar Street Light Battery Golf Cart EV lifepo4 100Ah 1



Specification
Item
General Parameter

Remark
Rated Capacity
Typical
100Ah
Standard discharge(0.2C5A) after Standard charge
Minimum
98Ah
Nominal Voltage
12.8V
Mean Operation Voltage
Voltage at end of
Discharge
14.6V
Discharge Cut-off Voltage
Charging Voltage
12.8V


Internal Impedance
≤100mΩ
Internal resistance measured at AC 1KHZ after 50% charge
The measure must use the new batteries within one week after shipment and cycles less than 5 times standard
Standard charge
Constant Current 0.2C5A
Constant Voltage 4.2V
0.01 C5A cut-off

Fast charge
Constant Current 0.5C5A
Constant Voltage 4.2V
0.01 C5A cut-off

Maximum Continuous Charge Current
0.5 C5A

Maximum Continuous Discharge Current
1.5C5A

Operating Temperature
Charge
0~45℃
60±25%R.H.
Charge at a very low temperature such as blew 0℃, will beget a lower capacity and reduce the cycle life of the battery cycle
Cycle Life
Discharge
-20~60℃
60±25%R.H.
Storage Temperature Range
20~25℃
60±25%R.H.
Do, not storage exceed a half year. Must charge once when stored for half a year. must charge the battery which with protects the circuit
when storage for three months.

Specifications

Rated Capacity 100Ah
Minimal Capacity 98Ah
Nominal Voltage 12.8V

Discharge cut-off voltage 2.0V/cell(≥8.0V)
Charging cut-off voltage 3.9V/cell(≤15.6V)

Maximum Continuous Charge Current 40A@20℃
Maximum Continuous Discharge Current 40A@20℃
Operation Temperature Range Charge: 0~45℃
Discharge: -20~60℃
Storage Temperature Range Less than 1 year: 0~25℃
Less than 3 months: -5~35℃

Approx. Weight 13.5Kg

Dimension L330*W170*H220mm


FAQ

1. Q: OEM OR ODM accepted?
Yes, we can do OEM&ODM. Logos on the power station is available.

2. Q: How to become your dealer and the requirement?
Just feel free to contact us by mail. We have very competitive prices, high-quality assurance, and the best support for our agents and dealer.

3. Q: Can I get some samples?
Yes, of course. We are honored to offer you samples, And usually, samples can be ready in 3days.
