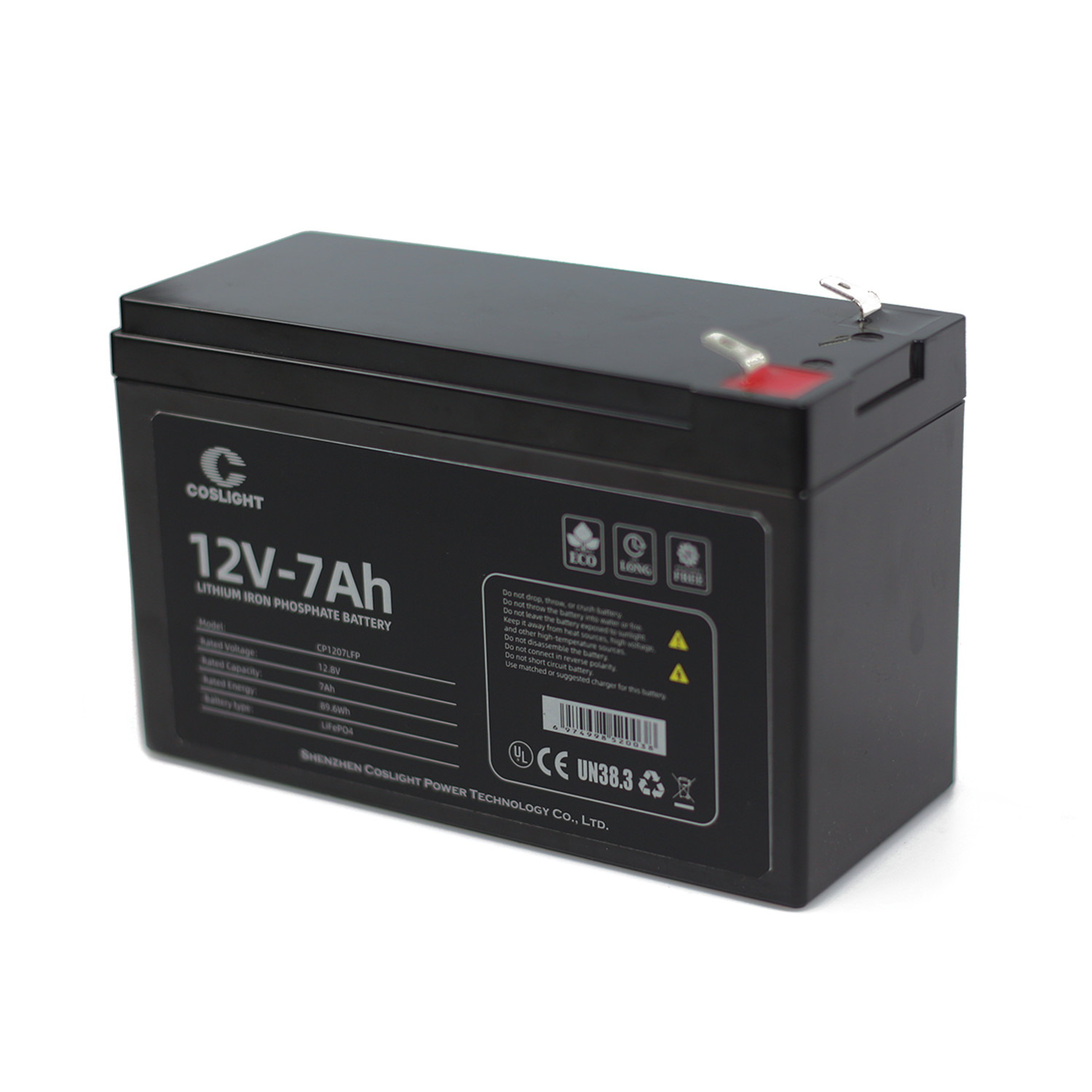

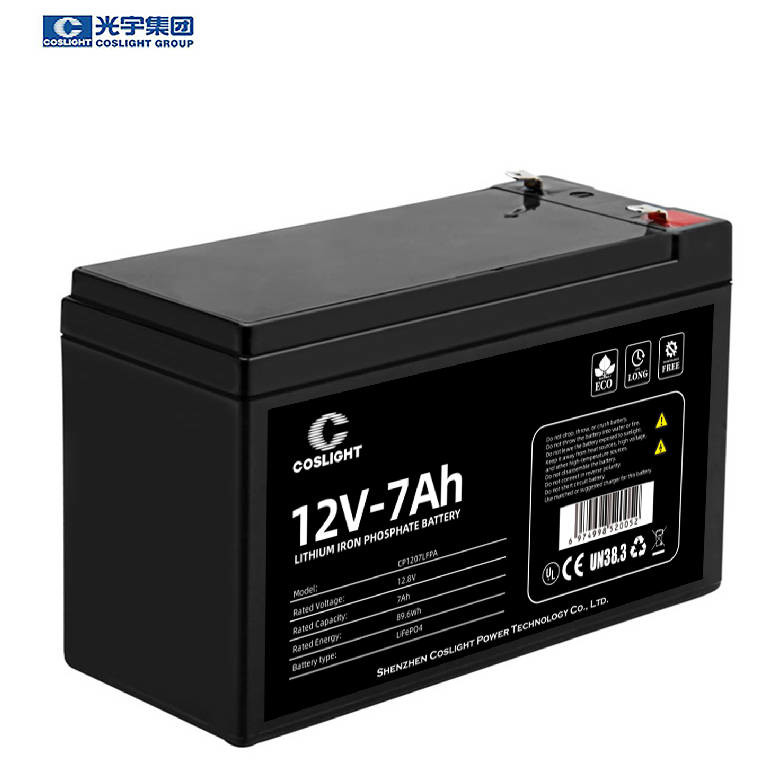

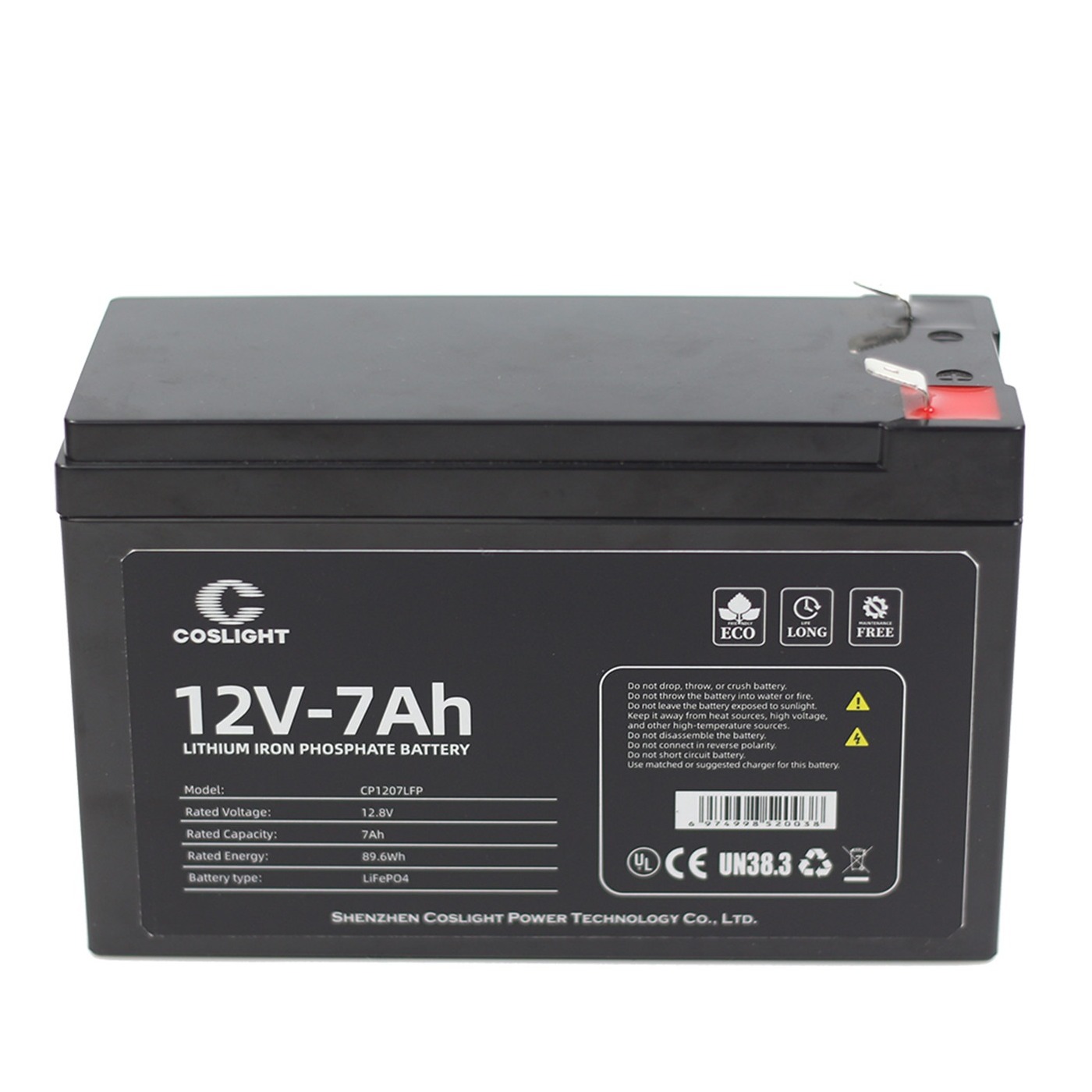

Home Appliances Coslight Lifepo4 Lithium Batteries 12v 7ah Lead Acid Battery

Basic Information
Place of Origin: GuangDong,China
Brand Name: Coslight
Certification: UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS
Model Number: 12v 7Ah
Minimum Order Quantity: 100 pieces
Price: USD430/pc
Packaging Details: Wooden Box
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Product Name: Lead-acid Replace Battery Nominal Voltage: 12.8 V
Cycle-life: ≥2000times Brand: Coslight
OEM: Support Warranty: 36 Mouths
Deliver Way: Sea, Air
High Light:

OEM 12v 7ah Lifepo4 Lithium Batteries

,

2000times Lifepo4 Lithium Batteries

,

2000times Home 24V 100Ah Lifepo4

12v 7ah Home Appliances Lifepo4 Lithium Batteries 24V 100Ah Lifepo4



High Capacity 12v 7ah Lifepo4 Battery Pack For Lead Acid Replacement






 Product Information




Quick Detail:



  1. Battery Size:24V

  2. Certification:ce

  3. Model Number:24v lithium battery

  4. Place of Origin:Guangdong, China

  5. Type:lithium battery

  6. Size:flexible

  7. Compact Desiged:Built in BMS

  8. Box Material:waterproof ABS-plastic case

  9. Certificate:CE, Rohs ,UN38.3,MSDS

  10. Keywords:24v 100ah lithium battery

  11. Advantage:Longer cycle life

  12. Warranty:1 years







Description:

The deep cycle 12v modularized are compact designed with ABS plastic box and built-in BMS to protect the battery from over-charge, over-discharge, over-current, over-voltage, over-temperature and short circuit.

The lithium battery is widely applied to RV, camping car, motorhome, solar system(off-grid system), boat, marine, trolling motor, yatch which give a replacement to your lead acid/AGM/GEL battery.





Applications:

 Widely used in Home Appliances, BOATS, SUBMARINES, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Solar system,RV,yacht,golf carts storage and car,UPS

Home Appliances Coslight Lifepo4 Lithium Batteries 12v 7ah Lead Acid Battery 0





Specifications:

ELECTRICAL SPECIFICATIONS MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8 V Length 65± 2 mm
Nominal Capacity @ 0.2C 7 Ah Width 151 ± 2 mm
Energy 89.6 Wh Height 94± 2 mm
Resistance 50mΩ Weight 1.1 Kg
Cycle Life 2000+cycles @ 1C 80% DOD Case Material ABS
Efficiency 99% Terminal T2
Self Discharge <3% per Month Enclosure Protection IP65
Maximum Modules in Series/Parallels 4S or 4P Length 65± 2 mm





CHARGE & DISCHARGE SPECIFICATIONS

Monthly Self Discharge

Less than 2%

Efficiency of Charge

100% @ 0.5 C

Efficiency of Discharge

96 - 99% @ 1 C

Charge Voltage

14.2 ± 0.2 V

Charge Model CC & CV

0.2C to 14.6 V ,

then 14.6V, charge current to 0.02C

Standard Charge Current

1.4 A

Max. Charge Current

7 A

Max. Continuous Discharge Current

7 A

Peak Discharge Current

14 A (3S)

BMS Discharge Cut-off Voltage

10 V

Charge Temperature

0~45 ℃

Discharge Temperature

-20℃ to 60 ℃

Storage Temperature

-20℃ to 45 ℃


  Home Appliances Coslight Lifepo4 Lithium Batteries 12v 7ah Lead Acid Battery 1
