| Place of Origin: | GuangDong,China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | 12v 100Ah |
| Minimum Order Quantity: | 100 pieces |
| Price: | USD251/pc |
| Packaging Details: | Wooden package |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs per month |
| Nominal Voltage: | 12.8 V | Cycle-life: | Over 2200times |
|---|---|---|---|
| Brand: | Cospowers | OEM/ ODM: | Available |
| Warranty: | 36 Months | Deliver Way: | Sea, Air & Door-to-door |
| Capacity: | 100 Ampere Hours | ||
| High Light: | Coslight 12v 100ah Submarine Lead Acid Battery,Coslight Submarine Lead Acid Battery,Coslight talentcell 12v 100ah |
||
Product Information
Quick Detail:
|
Description:

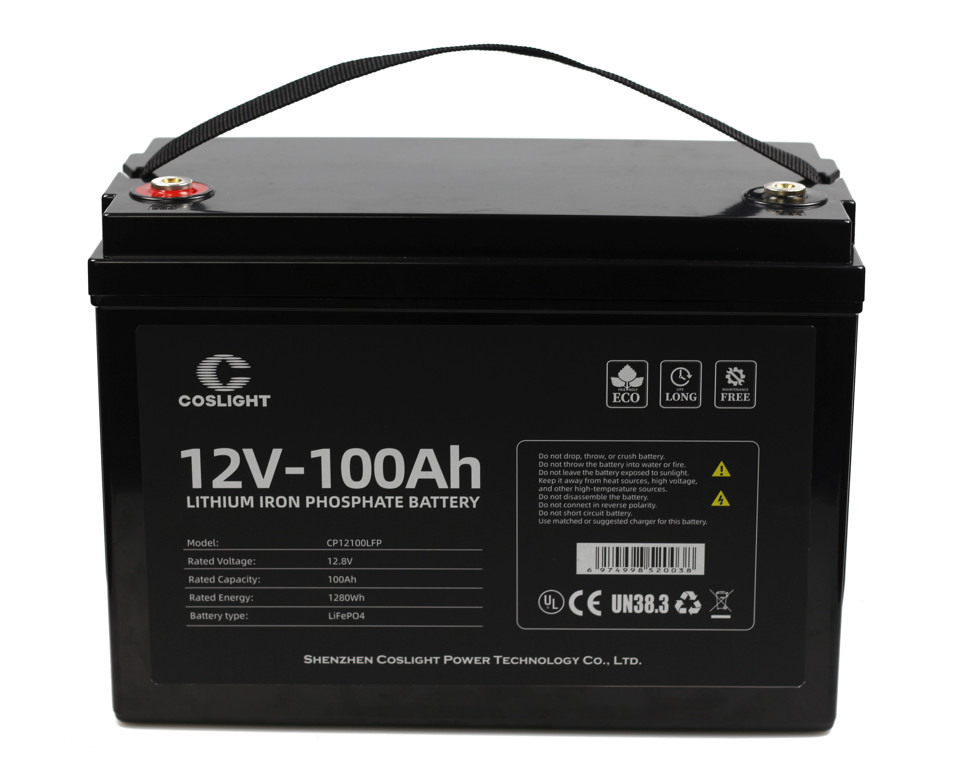

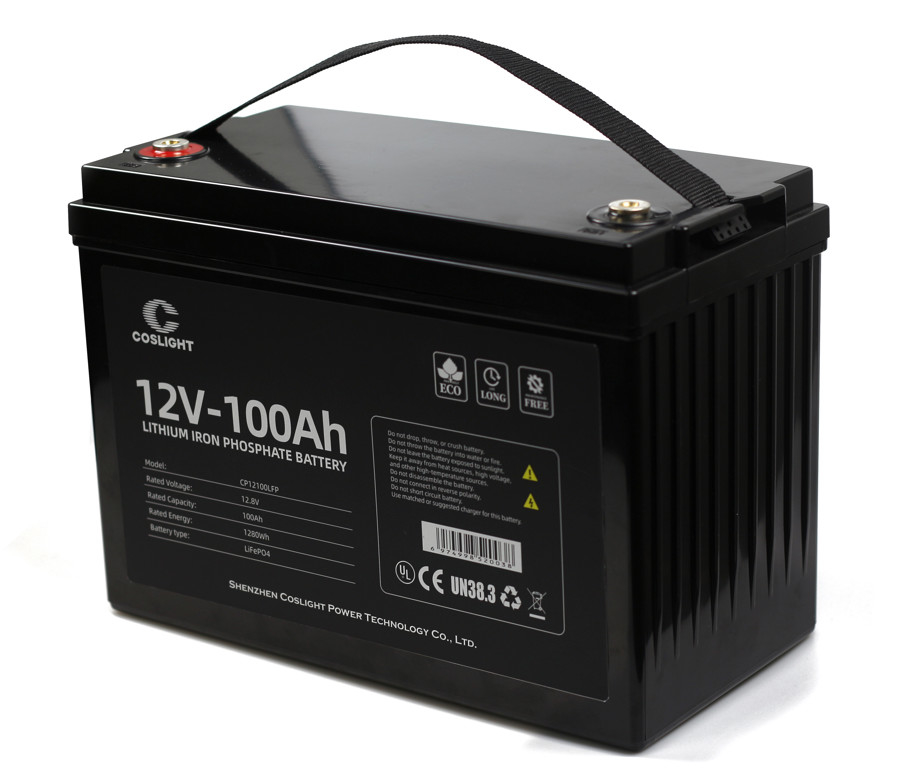

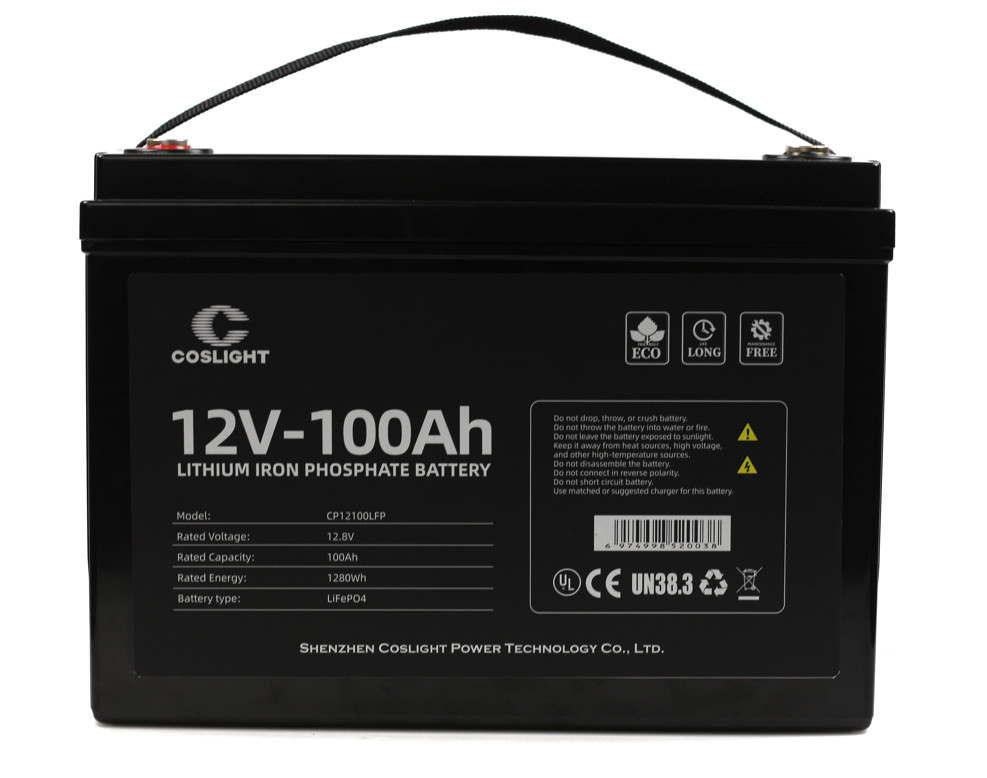

The deep cycle 12v modularized are compactly designed with ABS plastic box and built-in BMS to protect the battery from over-charge, over-discharge, over-current, over-voltage, over-temperature, and short circuit.
The lithium battery is widely applied to RV, camping cars, motorhomes, solar systems (off-grid system), boats, marine, trolling motors, yachts which give a replacement to your lead-acid/AGM/GEL battery.
Waterproof case available Enclosure Protection:IP65 Size, Material and connector customized services is available.
Protection
1. Over Charge Protection
2. Over Discharge Protection
3. Over Current Protection
4. Short Protection
Specifications:
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | ||
| Nominal Voltage | 12.8 V | Length | 330± 2 mm |
| Nominal Capacity @ 0.2C | 100 Ah | Width | 172 ± 2 mm |
| Energy | 1KW | Height | 215± 2 mm |
| Resistance | 50mΩ | Weight | 10Kg |
| Cycle Life | 2000+cycle times @ 1C 80% DOD | Case Material | ABS |
| Efficiency | 99% | Terminal | T2 |
| Self Discharge | <3% per Month | Enclosure Protection | IP65 |
| Maximum Modules in Series/Parallels | 4S1P | Length | 330± 2 mm |
|
CHARGE & DISCHARGE SPECIFICATIONS |
|
|
Monthly Self Discharge |
Less than 2% |
|
Efficiency of Charge |
100% @ 0.5 C |
|
Efficiency of Discharge |
96 - 99% @ 1 C |
|
Charge Voltage |
14.2 ± 0.2 V |
|
Charge Model CC & CV |
0.2C to 14.6 V , then 14.6V, charge current to 0.02C |
|
Standard Charge Current |
1.4 A |
|
Max. Charge Current |
100 A |
|
Max. Continuous Discharge Current |
100 A |
|
Peak Discharge Current |
14 A (3S) |
|
BMS Discharge Cut-off Voltage |
10 V |
|
Charge Temperature |
0~45 ℃ |
|
Discharge Temperature |
-20℃ to 60 ℃ |
|
Storage Temperature |
-20℃ to 45 ℃ |
