| Place of Origin: | GuangDong,China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | 12v 100Ah |
| Minimum Order Quantity: | 100 pieces |
| Price: | USD430/pc |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T, D/A, D/P, L/C |
| Supply Ability: | 5000pcs per month |
| Model: | 12100 Lifepo4 Battery | Material: | Lifepo4 |
|---|---|---|---|
| OEM / ODM: | Acceptable | Warranty Time: | 3 Years |
| Shape: | Square | Certification: | CE UL UN Etc. |
| Usage: | RV Boat Marine Solar System Etc. | ||
| High Light: | Coslight Lifepo4 Lithium Batteries,12v100ah Lifepo4 Lithium Batteries,3.2 v lifepo4 280ah |
||

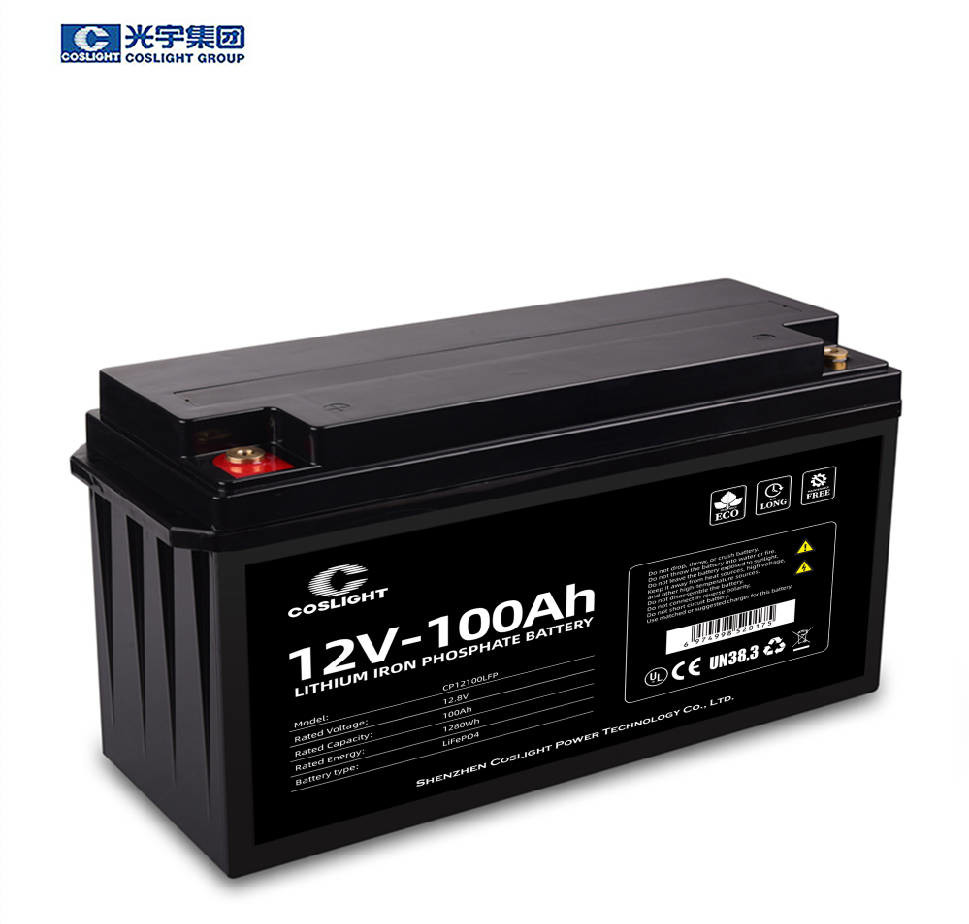

Coslight 12v100ah Lifepo4 Lithium Batteries RV Camping Solar Battery
Lifepo4 Battery 12v 50Ah Chargeable For RV Camping Boat
Product Information
FEATURES:
Applications:
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric
bicycle
--LED Backup / Engine Starting Battery,etc.
Products Description:
| ELECTRICAL SPECIFICATIONS | |
| Nominal Voltage | 12.8 V |
| Nominal Capacity @ 0.2C | 100 Ah |
| Energy | 1280 Wh |
| Resistance | 50mΩ |
| Cycle Life | 2000+cycles @ 1C 80% DOD |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series/Parallels | 4S or 4P |
| MECHANICAL SPECIFICATIONS | |
| Length | 172 ± 2 mm |
| Width | 328 ± 2 mm |
| Height | 230 ± 2 mm |
| Weight | 13.2 Kg |
| Case Material | ABS |
| Terminal | M8 Screw |
| Enclosure Protection | IP65 |
| CHARGE & DISCHARGE SPECIFICATIONS | |
| Monthly Self Discharge | Less than 2% |
| Efficiency of Charge | 100% @ 0.5 C |
| Efficiency of Discharge | 96 - 99% @ 1 C |
| Charge Voltage | 14.6 ± 0.2 V |
| Charge Model CC & CV |
0.2C to 14.6 V , then 14.6V, charge current to 0.02C |
| Standard Charge Current | 25 A |
| Max. Charge Current | 50 A |
| Max. Continuous Discharge Current | 50 A |
| Peak Discharge Current | 100 A (3S) |
| BMS Discharge Cut-off Voltage | 10 V |
| Charge Temperature | 0~45 ℃ |
| Discharge Temperature | -20℃ to 60 ℃ |
| Storage Temperature | -20℃ to 45 ℃ |
FAQ:
Q1: Can I have samples to test? And what is lead time for sample order?
A1: Yes,we can supply samples, the lead time for samples is 7-10 days.and buyer pay for sample cost and shipping cost
Q2: Do you provide after-sales service?
A2: Yes,the warranty is 1-3 years, if any quality problems on our side in this period, we can send new one as replacement.
Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we guarantee on-time shipment,we also provide excellent
after sales service.
Q4: Do you accept OEM/ODM?
A4: Yes,it is available.
A5: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples
Q6: Are you battery real capacity?
A6: All of our battery cells with Grade A,100% new and real capacity.
Q7:Are you a factory or a trading company?
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 if your order quantity is big.
