| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Coslight |
| Certification: | CE UL |
| Model Number: | 12V-100Ah |
| Minimum Order Quantity: | 500 units |
| Price: | $232.00 - $237.00/units |
| Packaging Details: | wooden packing |
| Supply Ability: | 500 Unit/Units per Month |
| Application: | Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Su | Weight: | 13.2 Kg |
|---|---|---|---|
| The Charging Ratio: | 50 A | The Discharge Rate: | 50 A |
| Energy: | 1280 Wh | Cycle Life: | 2000+cycles @ 1C 80% DOD |
| Self Discharge: | <3% Per Month | Monthly Self Discharge: | Less Than 2% |
| Charge Temperature: | 0~45 ℃ | Discharge Temperature: | -20℃ To 60 ℃ |
| Storage Temperature: | -20℃ To 45 ℃ | Height: | 230 ± 2 Mm |
| Case Material: | ABS | Enclosure Protection: | IP65 |
| High Light: | 12v 200ah Lithium Iron Phosphate Battery,12V 100ah Lifepo4 Lithium Batteries,Coslight Lithium Iron Phosphate Battery |
||
|
CHARGE & DISCHARGE SPECIFICATIONS
|
|
|
|
Monthly Self Discharge
|
Less than 2%
|
|
|
E⃞iciency of Charge
|
100% @ 0.5 C
|
|
|
E⃞iciency of Discharge
|
96 - 99% @ 1 C
|
|
|
Charge Voltage
|
14.6 ± 0.2 V
|
|
|
Charge Model CC & CV
|
0.2C to 14.6 V ,
then 14.6V, charge current to 0.02C |
|
|
Standard Charge Current
|
25 A
|
|
|
Max. Charge Current
|
50 A
|
|
|
Max. Continuous Discharge Current
|
50 A
|
|
|
Peak Discharge Current
|
100 A (3S)
|
|
|
BMS Discharge Cut-o⃞ Voltage
|
10 V
|
|
|
Charge Temperature
|
0~45 ℃
|
|
|
Discharge Temperature
|
-20℃ to 60 ℃
|
|
|
Storage Temperature
|
-20℃ to 45 ℃
|
|
|

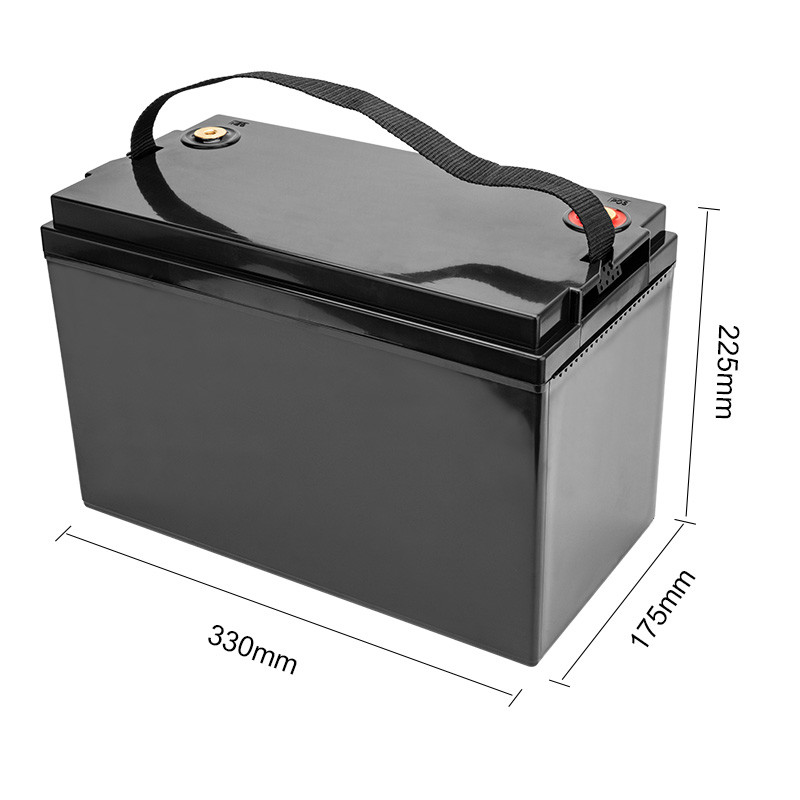

MECHANICAL SPECIFICATIONS
|
|
|
|
Length
|
172 ± 2 mm
|
|
|
Width
|
328 ± 2 mm
|
|
|
Height
|
230 ± 2 mm
|
|
|
Weight
|
13.2 Kg
|
|
|
Case Material
|
ABS
|
|
|

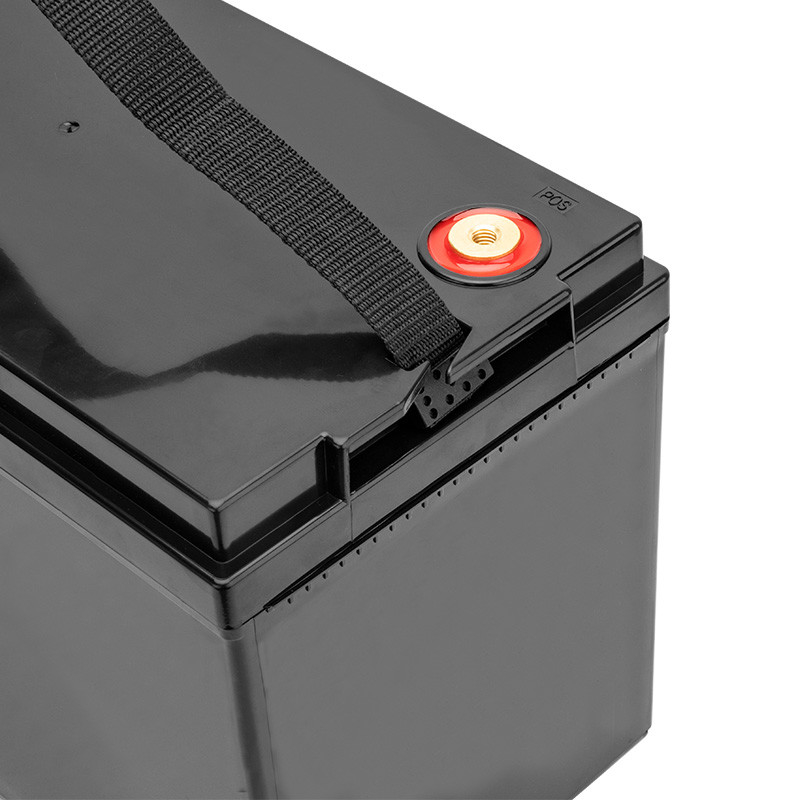

Terminal
|
M8 Screw
|
|
|
Enclosure Protection
|
IP65
|
|
|
COMPLIANCE
|
|
|
|
Certifications |
UL1642 (cells)
IEC62133 (cells) |
|
|
Shipping Classification
|
UN 3480, CLASS 9
|
|
