| Place of Origin: | China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | UPS |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000pcs/week |
| Appplication: | Medical/Office/Communication | Backup Time: | User Requirements |
|---|---|---|---|
| Voltage Range: | 208~478Vac | Charging Current: | 10A Max |
| Brand: | Coslight Or OEM | OEM/ODM: | Support Customize |
| Warranty: | 3 Years | ||
| High Light: | 1000W Portable Ups Power Supply,Portable Ups Power Supply,Medical 5Kva Ups System |
||

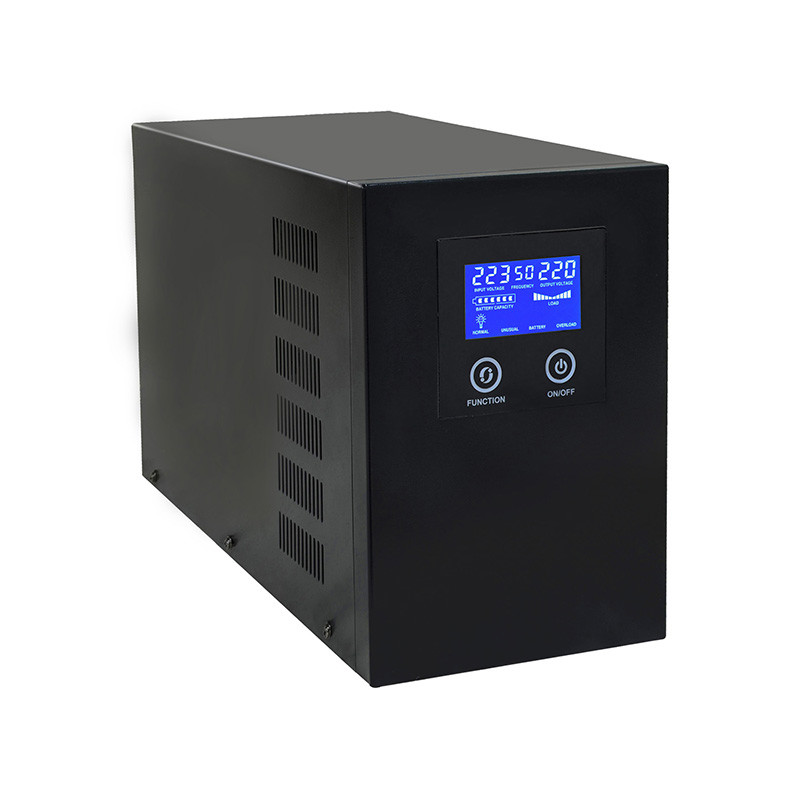

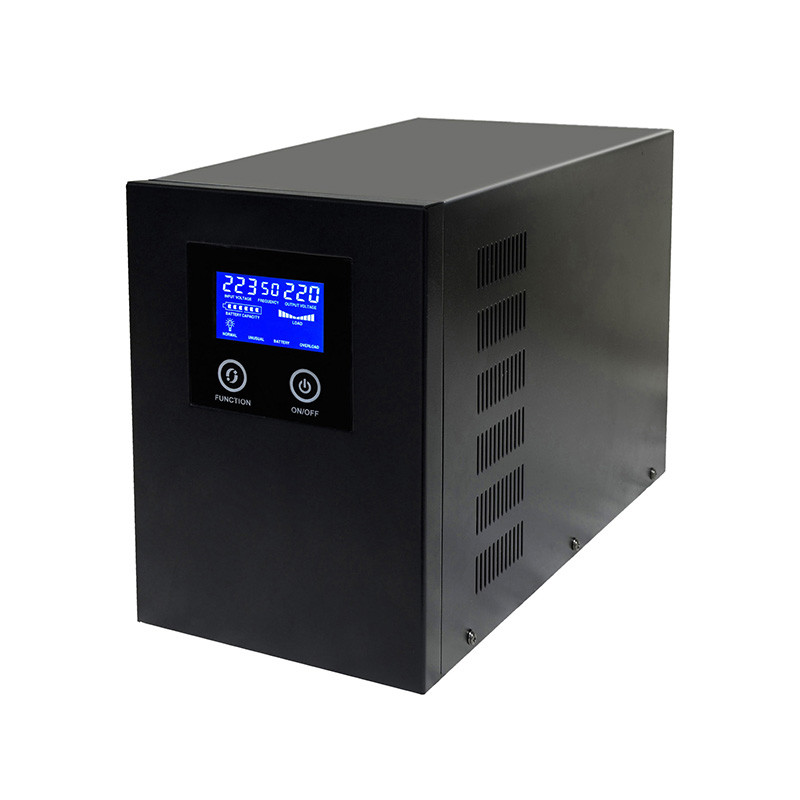

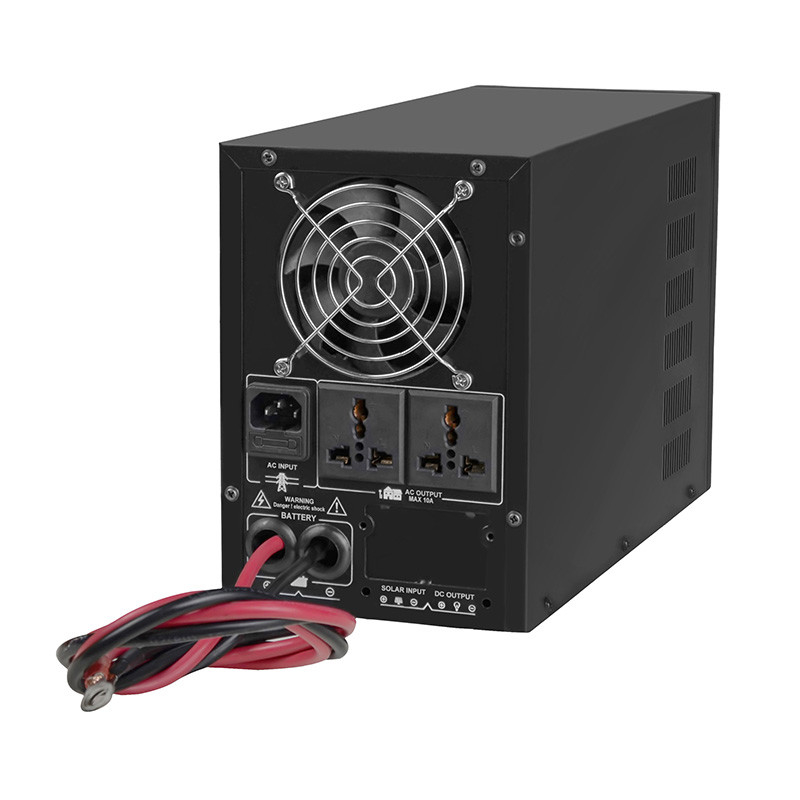

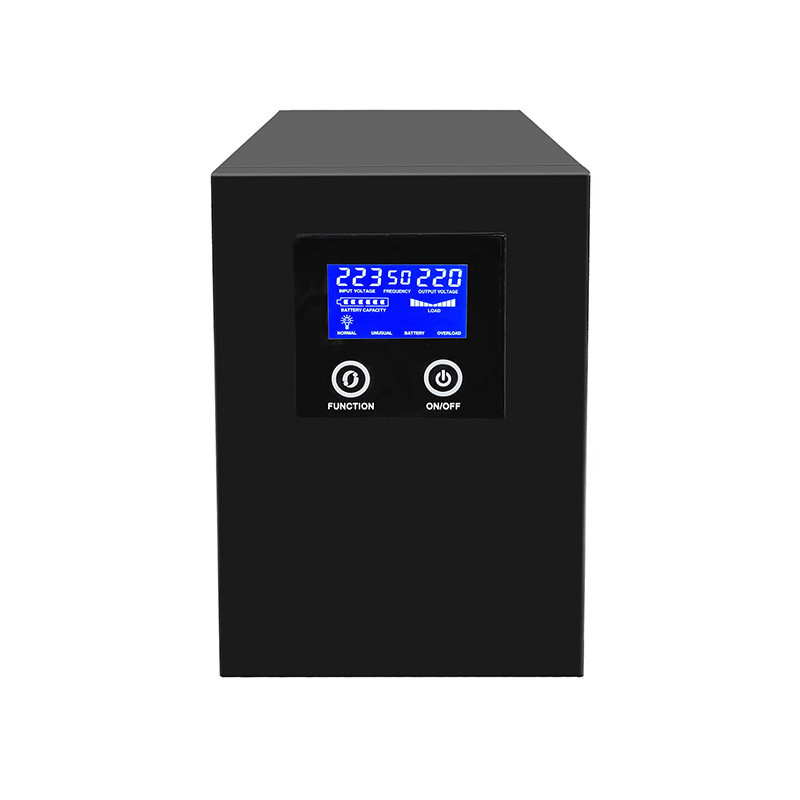

1000W Portable Ups Power Supply 5Kva Ups System for Medical Office
1000W Portable Electrical UPS System/Uninterrupted Power Supply Inverter UPS
Product information
|
Exclusive Feature |
1. Pure sine wave output.
2. Wide AC voltage input range, AVR output.
3. Adopt traditional EI transformer , stable performance.
4. LCD/LED&LCD real-time display, concise and straightforward.
5. Working modes: AC first or battery first optional, intelligent charging.
6. Built-in MPPT or PWM charge controller optional.
7. RS232 communication port optional.
|
|
Product Details |
|
|
Technical parameter |
|
Specification |
||
|
Model NB |
10212/24 |
|
|
Rated Power |
1000W |
|
|
Peak Power(20ms) |
3000W |
|
|
Start Motor |
1HP |
|
|
Battery Voltage |
12/24VDC |
|
|
Size(L*W*Hmm) |
410*143*210 |
|
|
Packing Size(L*W*Hmm) |
460*200*270 |
|
|
N.W.(kg) |
13 |
|
|
G.W.(kg)(Carton Packing) |
14 |
|
|
Installation Method |
Tower |
|
|
Parameter |
||
|
Input |
DC Input Voltage Range |
10.5-15VDC(Single battery voltage) |
|
AC Input Voltage Range |
73VAC~138VAC / 145VAC~275VAC |
|
|
AC Input Frequency Range |
45Hz~64Hz |
|
|
Max AC charging current |
6A~15A (Depending on the model) |
|
|
AC charging voltage |
LEAD battery:Charge Voltage :14V; Float Voltage:13.8V(Single battery voltage) |
|
|
AC charging method |
Three-stage (constant current, constant voltage, floating charge) |
|
|
Output |
Efficiency(Battery Mode) |
≥85% |
|
Output Voltage(Battery Mode) |
110VAC±2% / 220VAC±2%(Battery Mode) |
|
|
Output Frequency(Battery Mode) |
50Hz±0.5 or 60Hz±0.5 |
|
|
Output Wave(Battery Mode) |
Pure Sine Wave |
|
|
Efficiency(AC Mode) |
>99% |
|
|
Output Voltage(AC Mode) |
110VAC±10% / 220VAC±10% |
|
|
Output Frequency(AC Mode) |
Tracking Automatically |
|
|
Output waveform distortion(Battery Mode) |
≤3%(Linear load) |
|
|
No load loss(Battery Mode) |
≤2.5% rated power |
|
|
No load loss(AC Mode) |
≤2% rated power( charger does not work in AC mode) |
|
|
No load loss(Energy saving Mode) |
≤10W |
|
|
Battery Type |
Customize battery |
Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.) |
|
Protection |
Battery undervoltage alarm |
11V(Single battery voltage) |
|
Battery undervoltage protection |
10.5V(Single battery voltage) |
|
|
Battery overvoltage alarm |
15V(Single battery voltage) |
|
|
Battery overvoltage protection |
17V(Single battery voltage) |
|
|
Battery overvoltage recovery voltage |
14.5V(Single battery voltage) |
|
|
Overload power protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
|
|
Output short circuit protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
|
|
Temperature protection |
>90°C(Shut down output) |
|
|
Alarm |
A |
Normal working condition, buzzer has no alarm sound |
|
B |
Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection when |
|
|
C |
When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal inside |
|
|
Inside Solar controller |
Charging Mode |
PWM or MPPT |
|
Charging current |
10A/20A/30A/40A/50A/60A |
|
|
PV Input Voltage Range |
PWM: 15V-44V(12V system); 30V-44V(24V system) / MPPT: 15V-120V(12V system); 30V-120V(24V system) |
|
|
Max PV Input Voltage(At 25℃) |
PWM: 50V(12V/24V system) / MPPT: 150V(12V/24V system) |
|
|
PV Array Maximum Power |
12V system: 140W/280W/420W/560W/700W/840W; 24V system: 280W/560W/840W/1120W/1400W/1680W |
|
|
Standby loss |
≤3W |
|
|
Maximum conversion efficiency |
>95% |
|
|
Working Mode |
Battery First/AC First/Saving Energy Mode |
|
|
Transfer Time |
≤4ms |
|
|
Display |
LCD |
|
|
Thermal method |
Cooling fan in intelligent control |
|
|
Communication |
RS232(Optional) |
|
|
Environment |
Operating temperature |
-10℃~40℃ |
|
Storage temperature |
-15℃~60℃ |
|
|
Noise |
≤55dB |
|
|
Elevation |
2000m(More than derating) |
|
|
Humidity |
0%~95% ,No condensation |
|
|
Warranty |
1 year |
|
|
Note: All specifications are subject to change without prior notice |
||
