| Place of Origin: | China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | UPS |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000pcs/week |
| Appplication: | Medical/Office/Communication | Backup Time: | User Requirements |
|---|---|---|---|
| Voltage Range: | 208~478Vac | Charging Current: | 10A Max |
| Brand: | Coslight Or OEM | OEM/ODM: | Support Customize |
| Warranty: | 3 Years | ||
| High Light: | Coslight Uninterruptible Power System,10A 8KW Uninterruptible Power System,478Vac 8KW Ups Power Supply |
||
Online 8kw Three Phase Sine Wave Uninterruptible Power System supply
Online Three Phase Sine wave UPS Uninterrupted Power Supply 8kw UPS
Product information

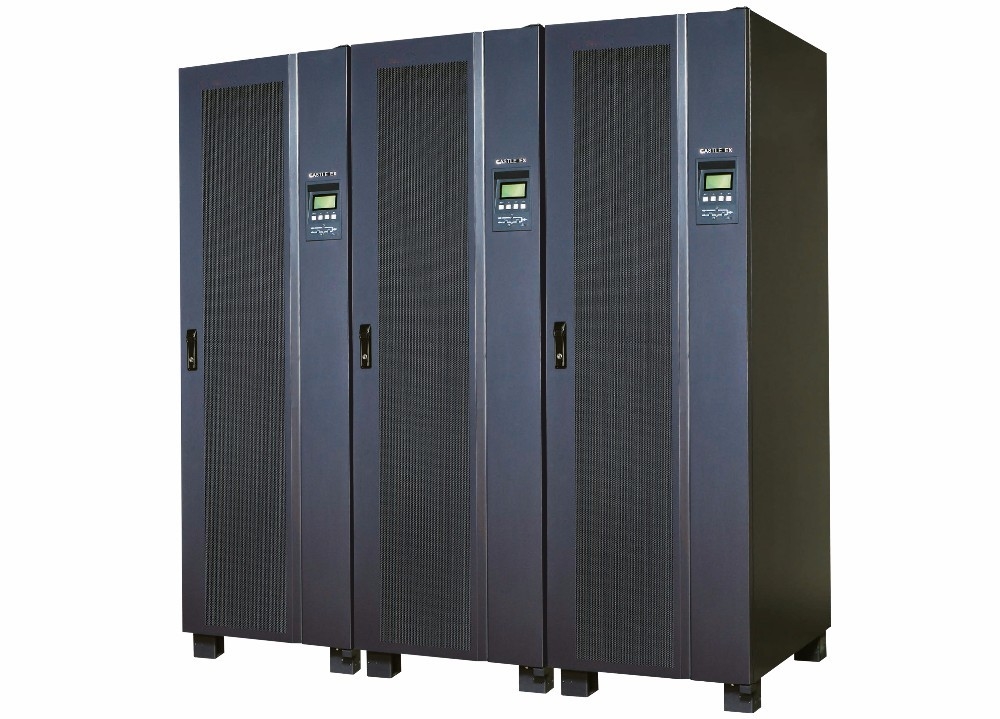

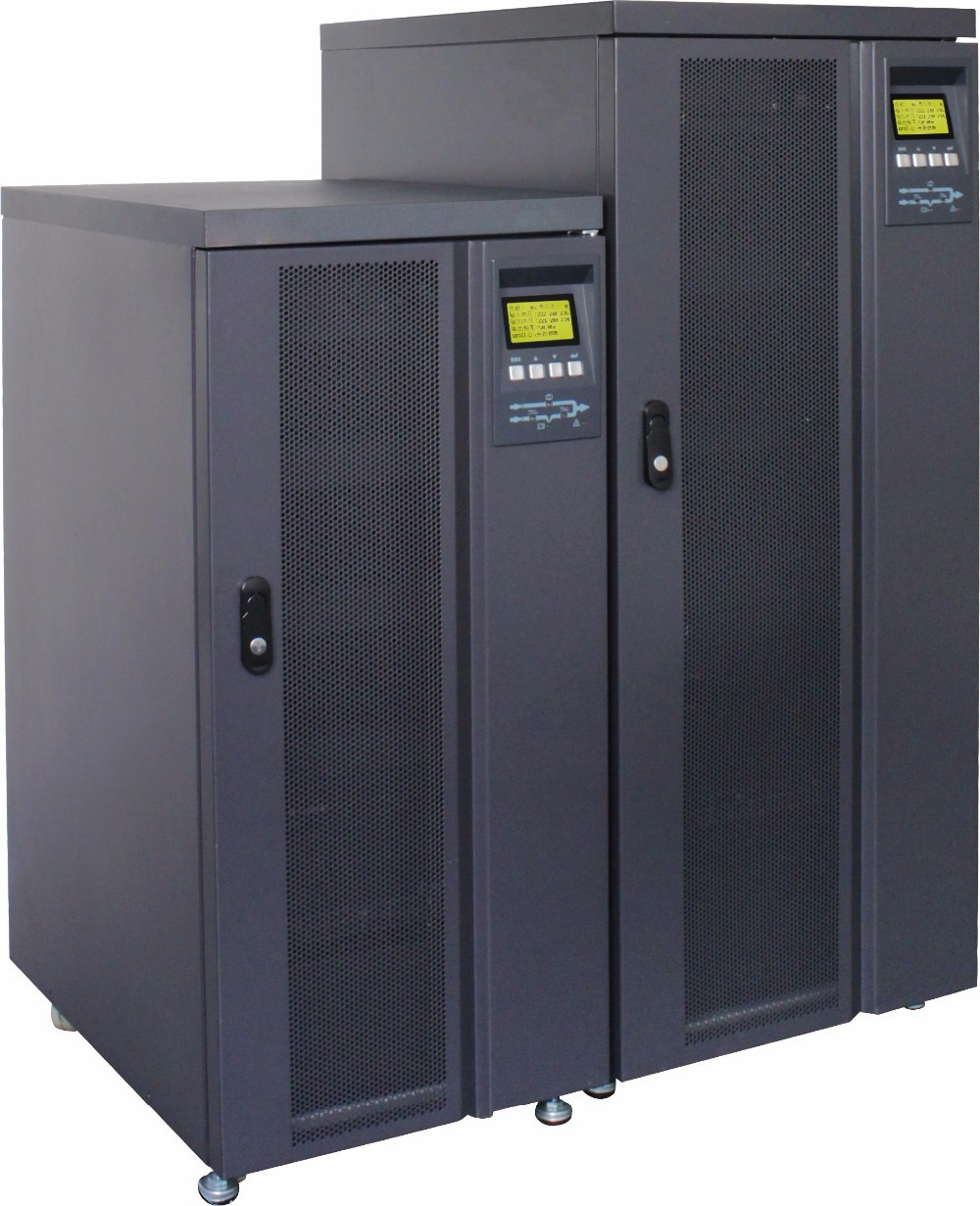

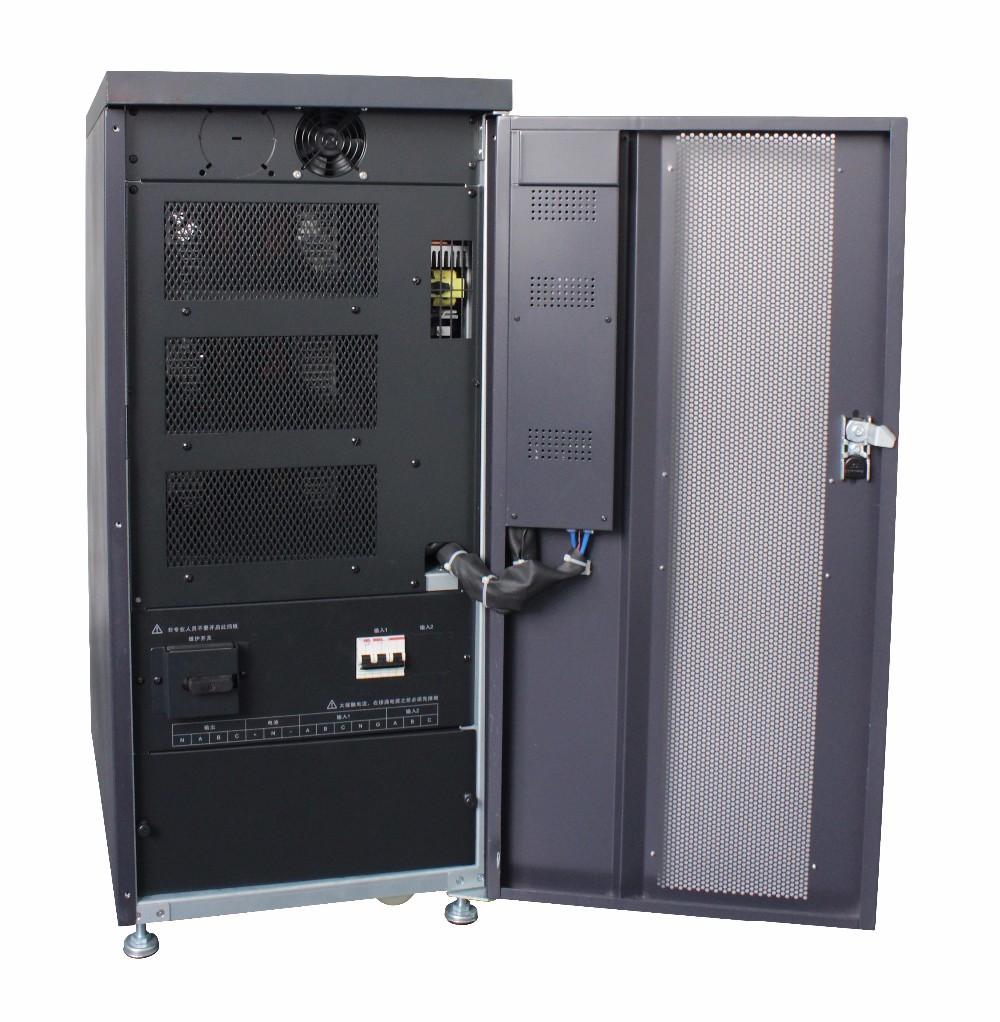

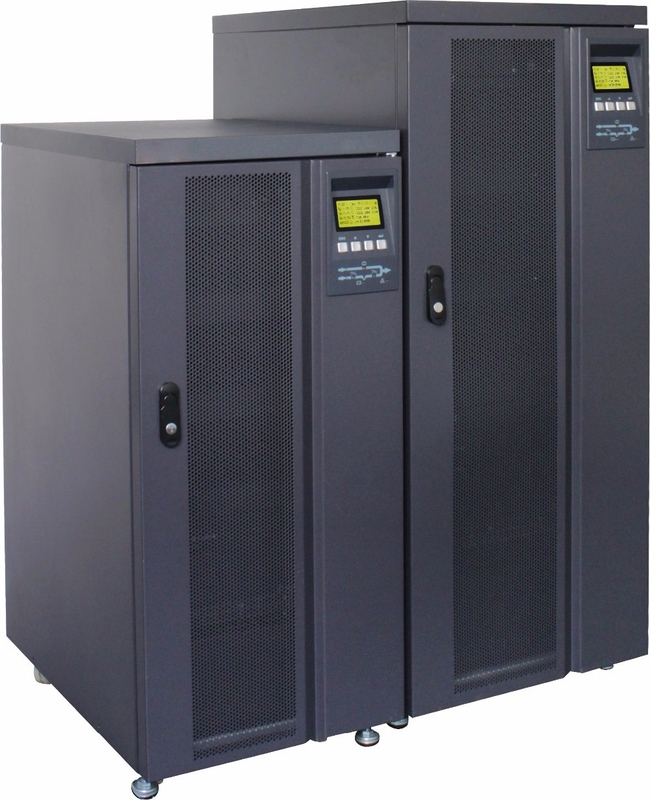

Detailed Images
Place of Origin: Guangdong, China
Brand Name: INTWATT
Model Number: EX3320~EX3380K
Phase: Three Phase
Weight: 248kgs-380kgs
Output Voltage: 380V/220VAC
Type: High Frequency Online UPS
Protection: Short Circuit
Application: Data-centers,network management center
Rated Capacity: 20KVA~80KVA Input Voltage: 210-475VAC
Input Frequency: 40-70HZ
Input Phase: 3phase 4 line + earth line
Twin-channel line input: Yes
Battery: Valve-regulated free maintenance lead-acid storge battery
Output voltage: 380/410/415VAC
Output Frequency: 50/60HZ
Operating temperature: 0-40 degree
Operating humidity: 95% non condesing
Main Features
1.Excellent performance in industrial environment protection
2.N+X parallel redundancy (compatible to battery share in the parallel mode)
3.Intelligent management of battery charging and discharging
4.Frontal-board LCD display panel operation and maintenance
5.Twin-channel line input
6.Remote monitoring
7.High-efficient DSP chip
8.Outstanding electric property
9.Flexible battery arrangement
Each single phase of the EX33 series UPS is converted to DC through an individual PFC circuit and then transferred to AC through
Inverter for output. At the same time, a separate controller is provided for the real time control and data collection of PFC
circuit so that the whole system can operate more harmonious or feedback the system state to the customer more promptly. In
addition, the controlling of battery charging can extend the battery's serve lifetime effectively and the twin-channel line input
improves the system's reliability. Furthermore, the series product is enhanced with excellent performance in protection level,
which ensures the stability of UPS working in industrial environment with large dusts.
Product Paramenters
Dimension
COMPANY INFORMATION:
FAQ
Q1: Are you a factory or trading company?
A: We are a professional battery manufacturer with our factory and brand. We provide all kinds of OEM/ODM services for clients, which can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
Q4. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A: Yes, We have a professional QC team to make sure that the product is in good condition before sending out the goods.
Q7: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
