OEM Uninterruptible Power System 12V DC Uninterrupted Power Supply Ups

Basic Information
Place of Origin: China
Brand Name: Coslight
Certification: UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS
Model Number: UPS
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 10-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 8000pcs/week
Appplication: Medical/Office/Communication Backup Time: User Requirements
Voltage Range: 208~478Vac Charging Current: 10A Max
Brand: Coslight Or OEM OEM/ODM: Support Customize
Warranty: 3 Years
High Light:

OEM Uninterruptible Power System

,

12V Uninterruptible Power System

,

ODM Uninterrupted Power Supply Ups

220V AC Uninterruptible Power System 12V DC Uninterrupted Power Supply Ups



220V AC to DC 12 Volt mini battery power supply system 5kva 6kva 10kva uninterrupted power supply ups


Product information

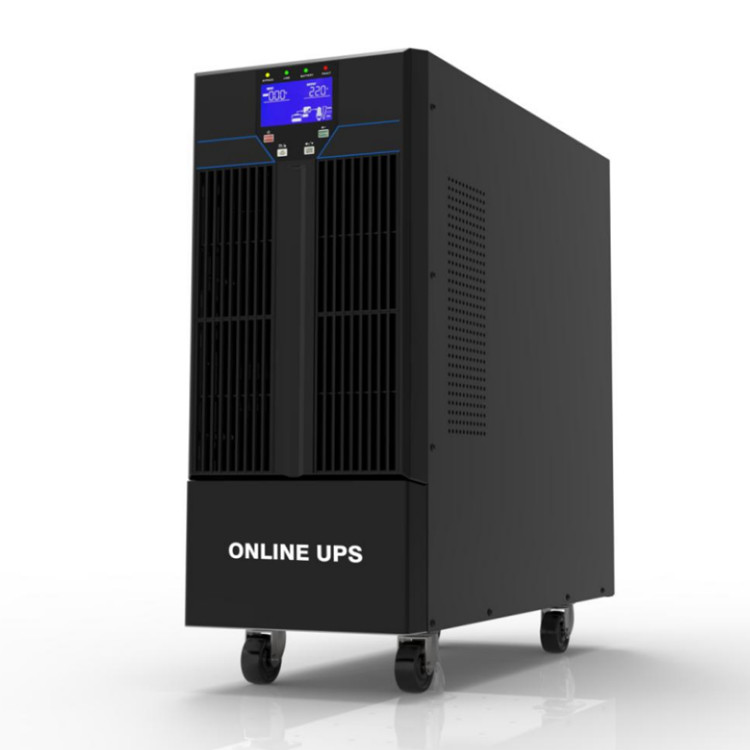

OEM Uninterruptible Power System 12V DC Uninterrupted Power Supply Ups 0



Exclusive Feature



1. Pure sine wave output.

2. Wide AC voltage input range, AVR output.

3. Adopt traditional EI transformer , stable performance.

4. LCD/LED&LCD real-time display, concise and straightforward.

5. Working modes: AC first or battery first optional, intelligent charging.

6. Built-in MPPT or PWM charge controller optional.

7. RS232 communication port optional.





Product Details



1000W Portable Electrical UPS System/Uninterrupted Power Supply Inverter UPS with ups function 12vdc to 230vac inverter





Technical parameter



Specification

Product Name

220V AC to DC 12 Volt mini battery power supply system 5kva 6kva 10kva uninterrupted power supply ups

Capacity

6KVA / 4800W

Toplogy

Double Conversion Online UPS

Phase

Single Phase Input Single Phase Output

Mains Input

Wiring

L/N+PE

Rated Voltage

208/220/230/240VAC

Voltage Range

90~300VAC

Frequency Range

40Hz-70Hz

Input Power Factor

≥0.99

AC Output

Wiring

L/N+PE

Output Voltage

208/220/230/240VAC

Voltage Regulation

±1%

Output Frequency

50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)

Waveform

Pure Sine Wave

Distortion
(THDV%)

<2%(Linear Load)

<7%(None-Linear Load)

Over load
capability

1Min@105%~125%Rated Load
60Sec.@125%~150%Rated Load
0.5Sec.@>150%Rated Load

Efficiency

AC/AC Mode

88%

DC/AC Mode

86%

Battery
&
Charge

Rated Battery Voltage ①

144V / 192V / 240V (DC)

External

Battery Capacity

12V 7Ah x 12 / 16 pieces

Backup Time

> 6 mins@ Half load

Charging Current

Standard Model with Internal Battery:1A

Long Backup Time Model :4A

Physical

Chassis Style

Rack-Mounted

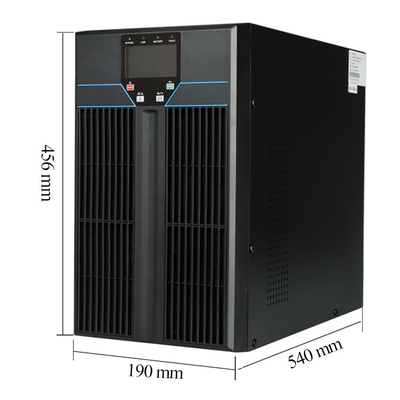

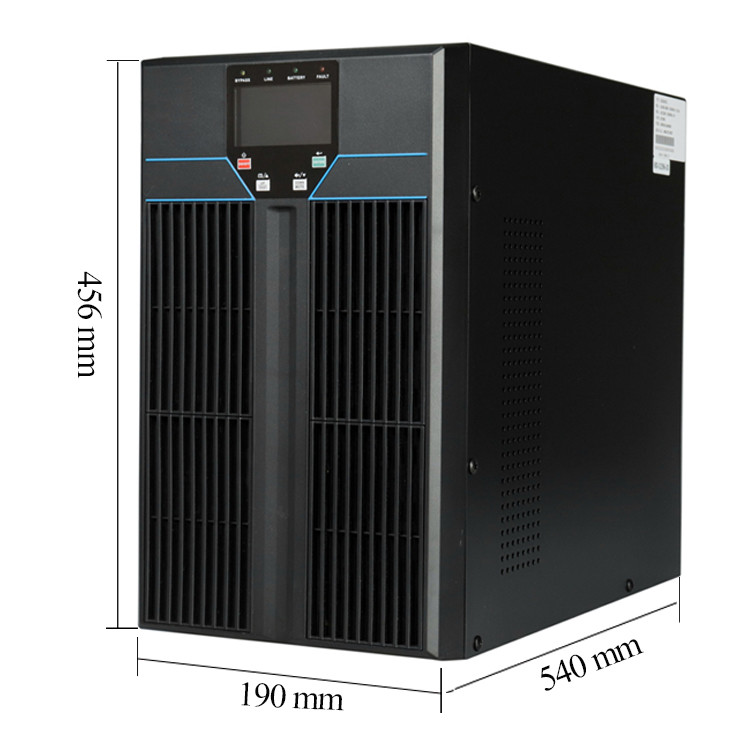

Rack Dimension

190 x 540x 456 mm

Weight (kg)

C6KS: 14.8 kgs

C6K-12BAT: 37 kgs
C6K-16BAT: 46.5 kgs

HMI

LCD DISPLAY

Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status

Standards

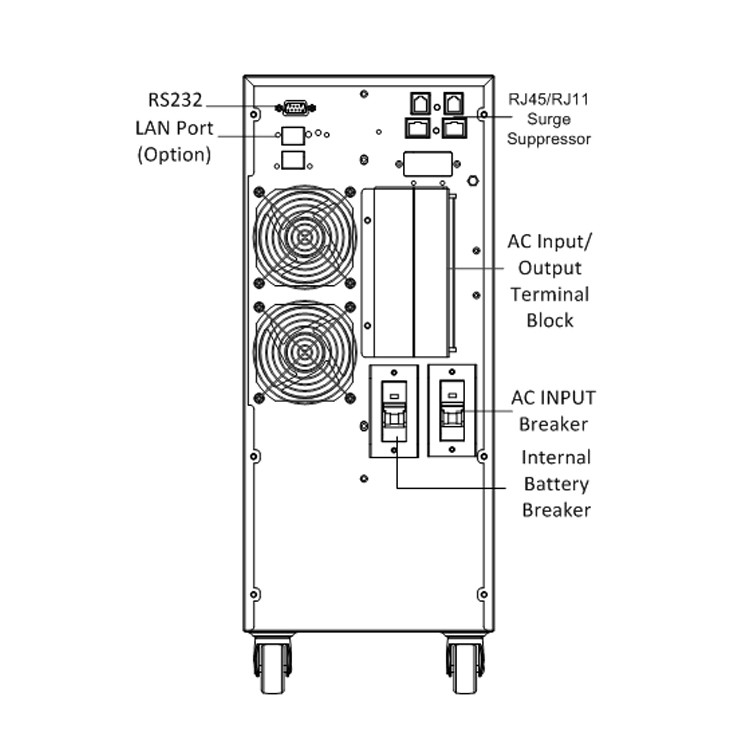

Communication Interface

1. RS232 PORT

Optional Extension Card

2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
3. MODBUS Card,
4. USB Card

Operating Environment
Endurance

Temperature range

-10~50oC

Relative Humidity

0-98% (Non-condensing)

Acoustics Noise

<55 DB @ 1 meters
