30KVA OEM Coslight Uninterruptible Power System Online Ups Power Supply

Basic Information
Place of Origin: China
Brand Name: Coslight
Certification: UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS
Model Number: UPS
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 10-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 8000pcs/week
Appplication: Medical/Office/Communication Backup Time: User Requirements
Voltage Range: 208~478Vac Charging Current: 10A Max
Brand: Coslight Or OEM OEM/ODM: Support Customize
Warranty: 3 Years
High Light:

OEM Uninterruptible Power System

,

Coslight Uninterruptible Power System

,

30KVA Online Ups Power Supply

30KVA OEM Coslight Uninterruptible Power System Online Ups Power Supply



Coslight Serie Online Hot-Swappable Modular UPS OEM/ODM (10 x 30KVA Module + 300KVA Rack)


Product information

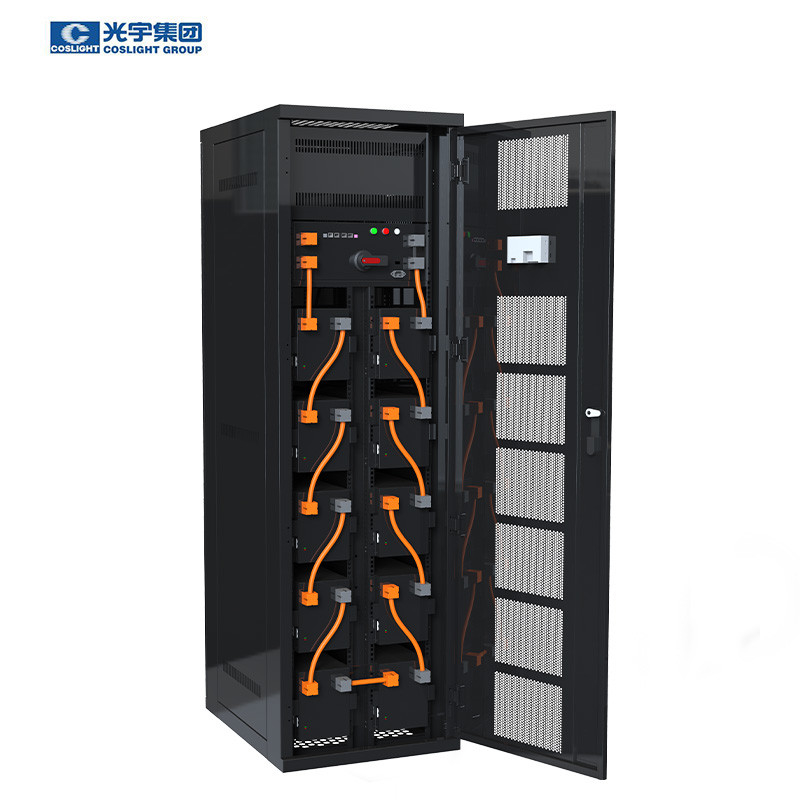

30KVA OEM Coslight Uninterruptible Power System Online Ups Power Supply 0

Features:
(1) Three in three out / three in single out UPSThe series is a three-in and three-out UPS. The input current is three-phase balanced, which can equalize the load of the three-phase power grid; the output can be changed to single-phase output.
(2) Digital controlAll parts of the UPS are digitally controlled. The UPS has excellent performance indicators, high system stability, self-protection and fault diagnosis capabilities, and avoids the risk of analog device failure, making the control system more stable and reliable.
(3) The number of external batteries is optional (±16/18/20 sections are optional)The number of external batteries for this series of UPS can be selected according to the user’s needs: ±16/18/20 knots.
(4) Charging current can be setThis series of UPS automatically assigns a reasonable charge current by setting the user-configured battery capacity. Constant voltage charging mode, constant current charging mode and floating charging mode can automatically and smoothly switch.
(5) Intelligent monitoring functionThis series of UPS can realize remote monitoring of UPS when an optional SNMP card is selected.
(6) Smart charging methodThis series of UPS uses an advanced two-stage three-stage charging method.The first stage is high constant current charging, quickly recharge about 90% of the power; the second stage of constant voltage charging, can activate the battery characteristics and fully charge the battery; the third stage is floating charge mode.This can balance the goal of fast charging and extending battery life, saving users’ battery investment.
(7) LCD displayThis series of UPS uses LCD and LED dual display, which allows users to more intuitively understand the working status and operating parameters of the UPS such as input/output voltage and frequency load capacity, battery capacity and internal temperature, so that all operations can be seen at a glance
(8) EPO FunctionAn emergency shutdown (EPO) button is embedded on the UPS unit panel,user can externally connect the EPO button. Press the EPO button in an emergency to shut down urgently; and have a remote emergency shutdown (REPO) function.





Applications:

1. Communications industry billing center
2. Communication base station
3. Telecom base station
4. ATM (automatic teller machine)
5. Network office environment
6. Industrial environment
7. Laboratory, data center
8. Small and medium enterprises (SMES)
9. Power plant, power system
10. Industrial automation control
11. Office automation control
12. Securities trading
13. Post and telecom
14. Radio and television
15. Country defense system
16. Petrochemical
17. SCADA monitor system





Specifications:













Power

20KVA /18KW

30KVA /27KW

40KVA /32KW

60KVA /54KW

80KVA /64KW

Input

Input

Three-phase four-line + ground

Rated Power

380/400/415Vac

Voltage Range

208~478Vac

Frequency Range

45-55Hz at 50Hz/54-66Hz at 60Hz (Auto sensing)

Power Factor

≥ 0.99

Input Current Harmonic

≤ 3%(100% Nonlinear load )

Bypass Range

Bypass protection voltage upper limit:220V:+ 25%(Optional+ 10%,+ 15%,+ 20%);
230V:+ 20%(Optional+ 10%,+15%);
240V:+ 15% (Optional+10%)

Bypass protection voltage lower limit:-45%(Optional -20%,-30%)

Bypass frequency protection range:±10%

Output

Output

Three-phase four-line + ground or single phase+N

Rated Voltage

380/400/415Vac or 220/230/240Vac

Voltage accuracy

±1%

Output Frequency

Utility Mode

Synchronous with input; when the mains frequency exceeds ±10% maximum
(±1%, ±2%, ±4%,±5% can be set),
the output frequency is 50*(±0.2)Hz

Battery
Mode

(50/60±0.2%)Hz

Load Peak Ratio

3:1

Output Voltage Distortion

≤ 2% Linear Load
≤ 5% Nonlinear Load

Battery

Efficiency

Normal Mode≥ 94.5%

Battery Voltage

Optional :±192V±216V±240V DC (±16/18/20 P CS)

Charging Current

10A max

Transfer time

Utility mode to bypass mode: 0ms (tracking); utility mode to battery mode: 0ms

Protection

Overload Capability

Normal Mode

Load ≤ 110%, 10mins, ≤ 125%, maintain 1mins, ≥ 150% shut down immediately.

Over Temperature Protection

Normal mode : Switch to bypass mode; Battery mode : Turn off the output immediately.

Emergency shutdown (EPO)

Turn off the output immediately

Operating Environment

Communication Connection

USB, RS485, dry contact, parallel (optional), SNMP card (optional), relay card (optional)

Working Temperature

0℃~ 40℃

Storage Temperature

-25℃~ 55℃

Relative Humidity

0 ~ 95% No condensation

Altitude

< 1500m, when above 1500m, derate according to GB/T 3859.2

Physical characteristics

Size (D*W*H)

724*250*734mm

805*335*978mm

Net Weight(kg)

45

46

48

80.5

82.5

Executive standard

YD/T1095-2008







COMPANY INFORMATION:

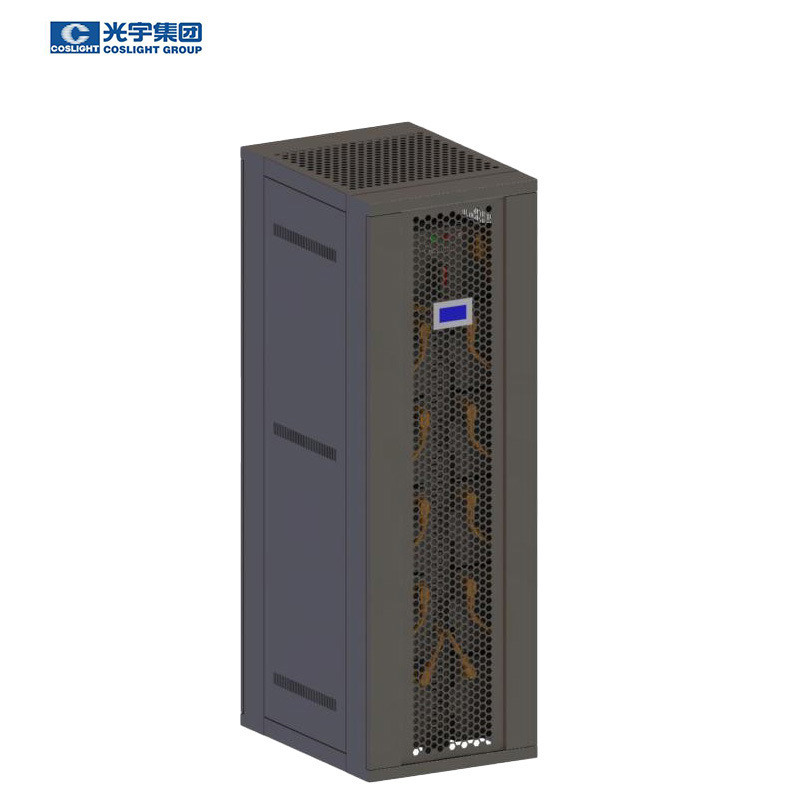

30KVA OEM Coslight Uninterruptible Power System Online Ups Power Supply 1
