| Place of Origin: | China |
|---|---|
| Brand Name: | Coslight |
| Certification: | UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS |
| Model Number: | UPS |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000pcs/week |
| Appplication: | Medical/Office/Communication | Backup Time: | User Requirements |
|---|---|---|---|
| Voltage Range: | 208~478Vac | Charging Current: | 10A Max |
| Brand: | Coslight Or OEM | OEM/ODM: | Support Customize |
| Warranty: | 3 Years | ||
| High Light: | OEM 30kva Ups Uninterruptible Power Supply,OEM 60kva Ups Uninterruptible Power Supply,OEM 60Kva Ups Power Supply |
||

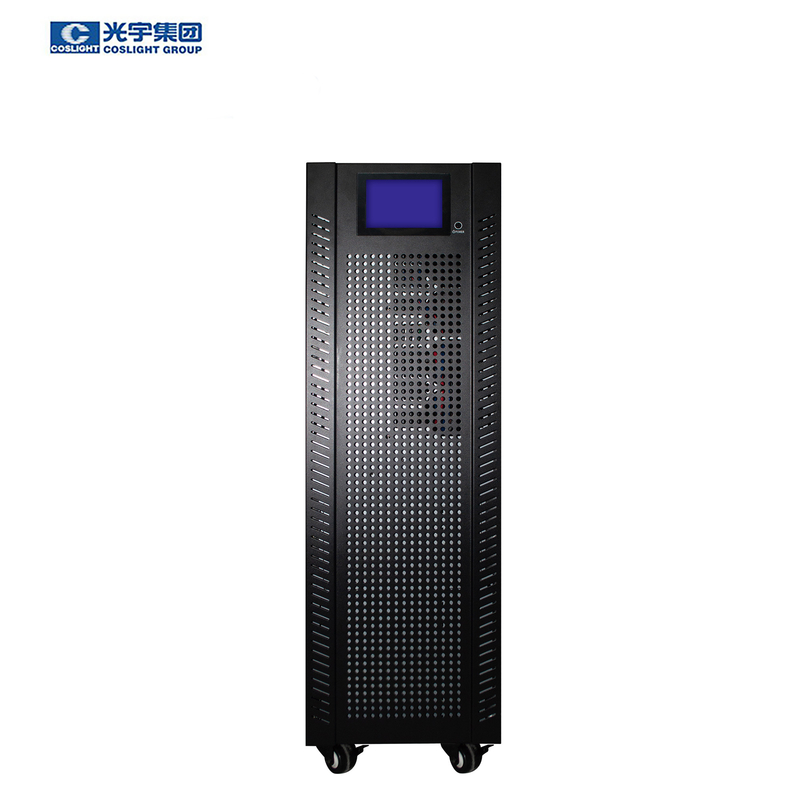

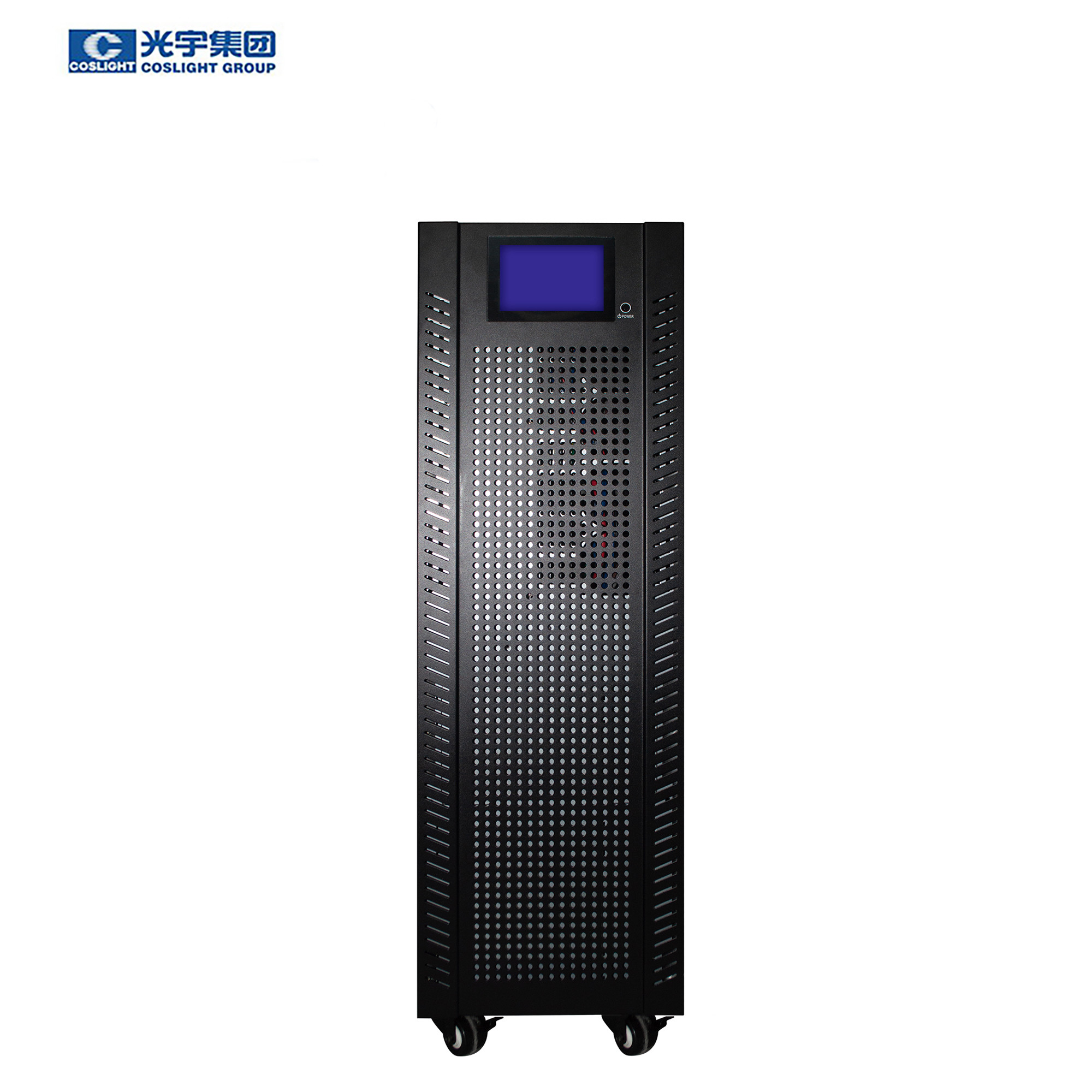

30kva 60kva Ups Uninterruptible Power Supply Online For medical
UPS Online 30kva 60kva 100kva 120kva 180kva 200kva Uninterruptible Power Supply
Product information
|
Model |
30K |
60K |
100K |
120K |
180K |
200K |
|
Capacity |
30KVA/30KW |
60KVA/60KW |
100KVA/100KW |
120KVA/120KW |
180KVA/180KW |
200KVA/200KW |
|
Input |
||||||
|
Minimum Switching Voltage |
50% Load: 110VAC(Ph-N) ± 3%; 100% Load: 176VAC(Ph-N) ± 3% |
|||||
|
Minimum Recovery Voltage |
Minimum Switching Voltage + 10V |
|||||
|
Maximum Switching Voltage |
50% Load: 300VAC(Ph-N) ± 3%; 100% Load: 276VAC(Ph-N) ± 3% |
|||||
|
Maximum Recovery Voltage |
Maximum Switching Voltage - 10V |
|||||
|
Frequency Range |
46Hz ~ 54 Hz @ 50Hz； 56Hz ~ 64 Hz @ 60Hz |
|||||
|
Phase |
3 phase + neutral line |
|||||
|
Power factor |
≧0.99 to 100% load |
|||||
|
Output |
||||||
|
Phase |
3 phase + neutral lin e |
|||||
|
Output voltage |
360/380/400/415 VAC (Ph-Ph) |
|||||
|
208*/220/230/240 VAC (Ph-N) |
||||||
|
AC Voltage Accuracy |
± 1% |
|||||
|
Frequency range (synchronization range) |
46Hz ~54 Hz @50Hz systems ;56 Hz ~64 Hz @60Hz systems |
|||||
|
Frequency range (battery mode) |
50Hz ±0.1 Hz or 60 Hz ±0.1 Hz |
|||||
|
Overload |
AC mode: 100~110:60 minutes ;110~125:10 minutes ;125~150:1 minute ;>150: immediately |
|||||
|
Battery mode: 100~110:60 minutes ;110~125:10 minutes ;125~150:1 minute ;>150: immediately |
||||||
|
Peak current ratio |
3:1(max) |
|||||
|
Harmonic distortion |
≦2%@100% linear load ;≦5%@100% nonlinear load |
|||||
|
Switching time |
City Electricity Battery: ms 0 |
|||||
|
Reverse Change bypass ms 0(phase-locked failure ,<4 ms interrupt occurs) |
||||||
|
Reverse ECO change ms 0(electricity lost , <10ms) |
||||||
This type of power system is a special backup power system. The complete set of power system is composed of 4
battery packs arranged in series, 1 high-voltage compartment and 1 complete set of battery management system.
The battery management system can fulfill acquisition and control of the information such as temperature, voltage,
charge current and discharge current, etc., of the battery.
